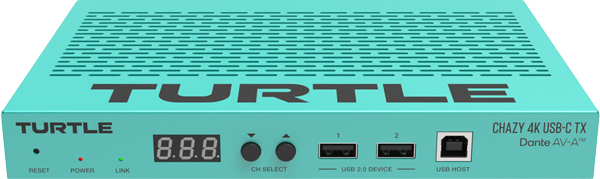

Turtle AV Chazy 4K USB-C TX
Turtle AV Chazy 4K USB-C TX, UHD 4K60, Dante AV-A License, PoE
Email me when the availability or price changes
Finance this product
- From £28.57 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £25.30 / month (APR 15.9%)
Turtle AV - 'Chazy 4K USB-C TX'
Dante AV-A and JPEG 2000 encoderIntroducing the Turtle AV Chazy 4K USB-C TX, a cutting-edge solution designed to elevate your audio-visual experience with stunning 2160p 60Hz 4:4:4 HDR video transmission. This versatile encoder seamlessly connects laptops or tablets via USB-C and accommodates a variety of video sources through its HDMI input. With the included Dante AV-A license, you gain not only compatibility with advanced audio formats, including 7.1 Dolby Atmos, but also the flexibility of a 2×2 Dante audio license. The Chazy 4K USB-C TX is PoE powered and packed with features like KVM support, extensive video wall configurations, and robust hardware scaling. Additionally, it ensures reliable performance with EDID management, HDCP 2.2, and true multicast support, all while being TAA compliant.
The Tech Spec
| Features | Specification | HDMI | 2.0b compliant |
|---|---|
| HDCP | 2.2 compliant |
| Video Bandwidth | 18Gbps |
| Compression Codec | JPEG 2000 or Dante AV-A |
| Network Bandwidth | 1Gbps |
| USB Bandwidth | 480Mbps |
| Colour Depth | Input: 8/10/12-bit; Output: 8-bit |
| Colour Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master |
| IR Level | Default 12V, Optional 5V |
| IR Frequence | Wideband 20K – 60KHz |
| ESD Protection | IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Input | 1x HDMI IN [HDMI Type A, 19-pin female] 2x USB-C IN [USB Type C, 24-pin female] 1x AUDIO IN [3pin-3.5mm Phoenix connector] |
| Output | 1x HDMI (Type A, 19-pin female) 1x L/R Audio (3-pin 3.81mm Phoenix connector) 1x SPDIF OUT (Optical) |
| Control | 1x LAN (PoE IEEE 802.3af) RJ45 jack 1x RS-232 (3-pin 3.81mm Phoenix connector) 1x USB 2.0 HOST (Type B, 4-pin female) 2x USB 2.0 DEVICE (Type A, 4-pin female) 2x RELAYS (3-pin 3.81mm Phoenix connector) 1x IR IN (3.5mm audio jack) 1x IR Out (3.5mm audio jack) |
| Dimensions | 204mm [W] x 136mm [D] x 25.5mm [H] |
| Weight | 631g |
| Power Supply | Input: AC100-240V 50/60Hz Output: DC 12V/2.5A PoE IEEE 802.3af |
| Power Consumption | 8.52W |
| Operating Temperature | -20 – 60° C |
