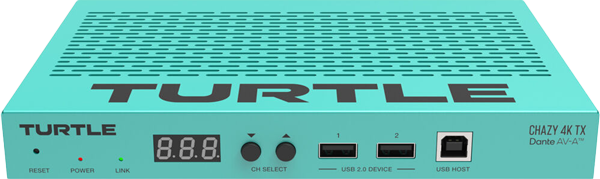

Turtle AV Chazy 4K TX
Turtle AV Chazy 4K TX, 2160p60 4:4:4, PoE, Video Wall Support
Email me when the availability or price changes
Finance this product
- From £28.57 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £25.30 / month (APR 15.9%)
Turtle AV - 'Chazy 4K TX'
HDMI 2.0b Dante AV-A and JPEG 2000 encoderIntroducing the Turtle AV Chazy 4K TX. This state-of-the-art HDMI 2.0b Dante AV-A and JPEG 2000 encoder delivers breathtaking 2160p 60Hz 4:4:4 HDR video, ensuring that every detail is rendered with precision and clarity. With the included Dante AV-A license and a powerful 2×2 Dante audio license, this device seamlessly integrates into any AV setup. Power over Ethernet (PoE) capability simplifies installation, while support for a wide array of audio formats, including 7.1 Dolby Atmos, enhances the immersive experience. The Chazy 4K TX also features advanced functionalities including KVM, multi-display configurations, hardware scaling, and robust management options to meet the most demanding AV requirements. With dual network ports to keep audio-visual and control systems separate, TAA compliance, and a 5-year warranty, the Chazy 4K TX brings reliability and excellence to any professional environment.
The Tech Spec
| Features | Specification | HDMI | 2.0b compliant |
|---|---|
| HDCP | 2.2 compliant |
| Video Bandwidth | 18Gbps |
| Compression Codec | JPEG 2000 or Dante AV-A |
| Network Bandwidth | 1Gbps |
| Colour Depth | Input: 8/10/12-bit; Output: 8-bit |
| Colour Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX DSD, DTS High Res, DTS-HD Master |
| IR Level | Default 12V, Optional 5V |
| IR Frequence | Wideband 20K – 60KHz |
| ESD Protection | IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Input | (3-pin 3.81mm Phoenix connector)1x HDMI (Type A, 19-pin female) 1x L/R Audio (3-pin 3.81mm Phoenix connector) |
| Output | 1x HDMI (Type A, 19-pin female) 1x L/R Audio (3-pin 3.81mm Phoenix connector) 1x SPDIF OUT (Optical) |
| Control | 1x LAN (PoE IEEE 802.3af) RJ45 jack 1x LAN RJ45 jack 1x RS-232 (3-pin 3.81mm Phoenix connector) 1x USB 2.0 HOST (Type B, 4-pin female) 2x USB 2.0 DEVICE (Type A, 4-pin female) 2x RELAYS (3-pin 3.81mm Phoenix connector) 1x IR IN (3.5mm audio jack) 1x IR Out (3.5mm audio jack) |
| Dimensions | 204mm [W] x 136mm [D] x 25.5mm [H] |
| Weight | 631g |
| Power Supply | Input: AC100-240V 50/60Hz Output: DC 12V/2.5A PoE IEEE 802.3af |
| Power Consumption | 8.52W |
| Operating Temperature | -20 – 60° C |
