Scan code: LN113542 Manufacturer code: FetHead Filter

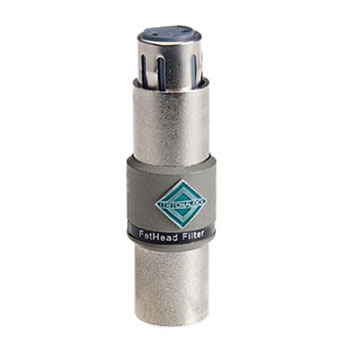

Triton Audio FetHead Filter Microphone Preamp with High Pass Filter

Triton Audio - FetHead Filter, Mic Preamp for Ribbon & Dynamic Microphones, Low-Noise Class-A JFet Amplifier

Scan code: LN113542 Manufacturer code: FetHead Filter
£64.80
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow, Fri 26th Feb
Delivery Options
  • By DPD On 26th Feb to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Mic Preamp with High Pass Filter
Triton Audio - 'FetHead Filter'

Triton Audio - 'FetHead Phantom'

For Ribbon & Dynamic Microphones Triton Audio’s ‘FetHead Filter’ is just like a regular FetHead, but instead features a 6dB/octave high pass filter with a corner frequency of 220Hz. FetHead Filter was specifically designed for mics which can often exhibit an excessive proximity effect / low frequency response, such as long motor ribbon mics. The components which make up the filter, aren’t directly in the signal path but are instead applied to the components which set the gain of FetHead Filters amplifier, therefore making it frequency dependent.

Protects the microphoneSome ribbon mics don’t take too kindly to phantom power. For this reason, FetHead’s circuitry uses 48V phantom power, but shields it from the mic, ensuring your mic is fully protected.

at a glance • For Ribbon & Dynamic Microphones
• Reduce extreme proximity effect
• 6dB per octave high pass filter
• 27dB of clean amplification
• Easy install - 2 clicks and done!

The Tech Spec

Features Specification
In-Line Accessory Type Pre-Amplifier
Gain +22 dB
High-Pass Filter 220 Hz, 6 dB/Octave
Circuit Type Class-A JFET
I/O 1 x XLR 3-Pin Female Balanced Input
1 x XLR 3-Pin Male Balanced Output
Operating Voltage 28 to 48 V (Phantom Power)
Box Dimensions (LxWxH) 4.9 x 1.25 x 1.25"
Specifications
Product Type
PC Interface N/A
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN113542
Model Number FetHead Filter
GTIN 00764804148497
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
14 days
RTB Period:
24 months
