Scan code: LN128236 Manufacturer code: TL-SG3452X

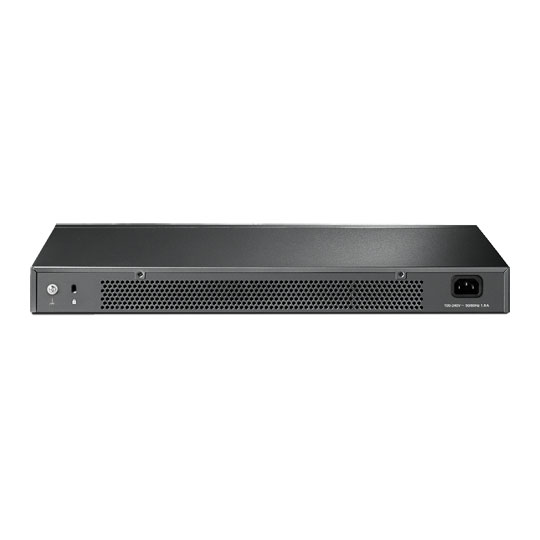

tp-link TL-SG3452X 48-Port Switch

tp-link TL-SG3452X JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Thumbnail 1 : tp-link TL-SG3452X 48-Port Switch Thumbnail 2 : tp-link TL-SG3452X 48-Port Switch Thumbnail 3 : tp-link TL-SG3452X 48-Port Switch
Scan code: LN128236 Manufacturer code: TL-SG3452X
Order now and receive it by Tuesday, 18th June
£469.99
Get it Tuesday, 18 JunIn stock
From £22.95 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £42.58
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £469.99
Total inc. interest: £510.97
Monthly Payment: £22.95
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £469.99
Total inc. interest: £550.78
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.49 / month (APR 19.9%)
Delivery Options
  • By DPD On 18th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Enterprise Switch With 10G Uplink

4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.


Software Defined Networking (SDN) With Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.


Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.


Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.


Enterprise Level Features

A complete line-up of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.


Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.


ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.


IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbour Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Features

10G Lightning-Fast Uplink : 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
Gigabit Speeds : 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
Integrated Into Omada SDN : Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
Static Routing : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Robust Security Strategies : Manage IP Cameras easily with detection and management of ONVIF cameras. Use auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.
Optimize Voice and Video Applications :
Standalone Management : Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications
Edition JetStream
Form Factor Rackmount
Total Network Ports
  • 48 x 10/100/1000 (Gigabit) RJ-45
  • 4 x 1G/10G (SFP+)
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
  • 1 x Console (RJ45)
  • 1 x Micro-USB Console
Switching Capacity 176 Gbps
Non-Blocking Throughput
Forwarding Rate 130.9 Mpps
MAC Address Table Size 16k Entries
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1ab
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 32.72 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes Mounting Kit
Dimensions (WxHxD) 440 x 44 x 220 mm
Weight
Additional Information
Scan Code LN128236
Model Number TL-SG3452X
GTIN 6935364006488
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
