tp-link 32-Port Layer 3 Web Managed Rackmount Switch with Physical Stacking & Link Aggregation

32-Port tp-link SX6632YF Omada Managed Switch, 26x SFP+, 6x SFP28, Stackable, Layer 3, 820Gbps S/C, Omada SDN, Rackmount
MORE INFO
MORE INFO

Scan code: LN150703 Manufacturer code: SX6632YF
£3,658.99
Item currently awaiting an ETA
Pre Order
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £103.17 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £331.50
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £3,658.99
    Total inc. interest: £3,977.90
    Monthly Payment: £178.66
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £3,658.99
    Total inc. interest: £4,287.85
    Monthly Payment: £128.13
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £3,658.99
    Total inc. interest: £4,612.61
    Monthly Payment: £103.17
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £3,658.99
    Total inc. interest: £4,951.97
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £97.23 / month (APR 19.9%)
Product Overview

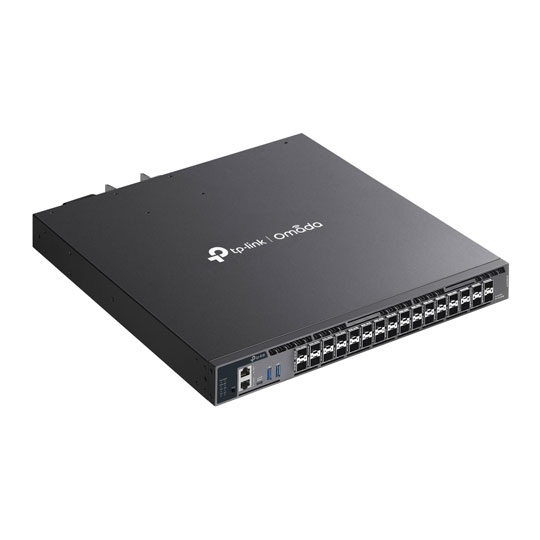

tp-link Omada SX6632YF Managed Switch

The Omada SX6632YF stands out as a genuine L3 managed switch, equipped with complete fibre ports that deliver L3 routing capabilities and impressive 25 Gbps wired speeds. It supports stacking and features redundant power supplies, making it ideal for convergence layer requirements. With 6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots, along with physical stacking options, this switch is designed for versatility. Its strong security measures and extensive management tools guarantee dependable performance for small to medium-sized businesses, enterprises, and ISP networks.


Rapid Connectivity and Powerful Stacking

6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.


Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.


Enhanced Security Functions

Defend against a range of network threats with ACL support for both IPv4 and IPv6, which controls device communication based on IP addresses. The switch also features Dynamic ARP Inspection to prevent ARP spoofing, and IEEE 802.1X for authenticated network access. MAB allows non-802.1X devices to be securely included, while Port Security restricts access based on MAC addresses. Additionally, Secure Shell (SSH) ensures secure remote management.


Omada SDN: Management Made Easy

The SX6632YF switch includes advanced centralised cloud management, offering features like Zero-Touch Provisioning (ZTP) for seamless setup. Leveraging the Omada Software Defined Networking (SDN) platform, it integrates network devices such as access points, switches, and routers into a unified system with 100% centralised cloud management. Users can manage everything via a single interface, ensuring efficient control and monitoring. This switch supports an intuitive web-based Graphical User Interface (GUI) and an industry-standard Command Line Interface (CLI), with traffic protection through SSL or SSH encryption. Additionally, SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for status information and send alerts for abnormal events.


Features

• 26× 10G SFP+ slots and 6× 25G SFP28 slots.
• 820 Gbps switching capacity.
• Physical Stacking for built-in redundancy and performance.
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay.
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X.

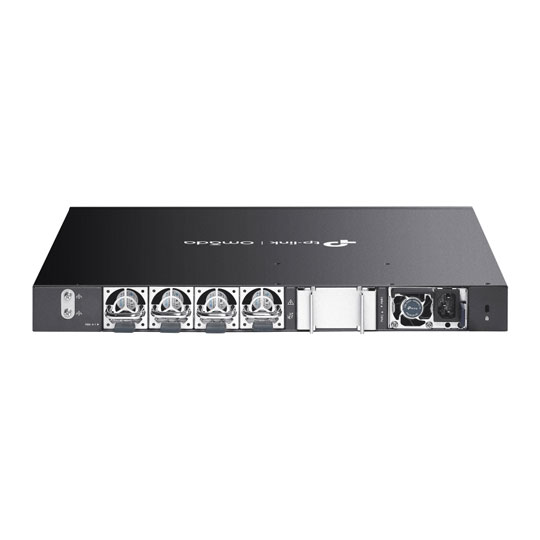

• Highly Available with two field-replaceable power supplies*, VRRP, and ERPS.
• Centralised cloud management via the Omada SDN controller.
• Standalone management via web, CLI, SNMP, and RMON.
• Product Dimensions (WxHxD): 440 x 44 x 380mm

Specifications
Edition Smart Managed Switch
Form Factor Rackmount
Total Network Ports
  • 26 x SFP+
  • 6 x SFP28
PoE Support Type N/A
No. of Ports Providing PoE
Other Non-Network Ports
  • 1 x Console (RJ45)
  • 1 x Management RJ-45
  • 2 x USB
Switching Capacity 802Gbps
Non-Blocking Throughput N/A
Forwarding Rate 610.1Mpps
MAC Address Table Size 128K Entries
Network Capacity N/A
Built-in Flash Memory N/A
RAM Memory
Network Protocols
  • IEEE 802.1ab
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 86.7 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material Metal
Includes
  • Mounting Kit
  • Rack Mounting Brackets
  • Rail Kit
Dimensions (WxHxD) 440 x 44 x 380 mm
Weight
Additional Information
Scan Code LN150703
Model Number SX6632YF
GTIN 4895252501322
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
