Scan code: LN106199 Manufacturer code: RE505X

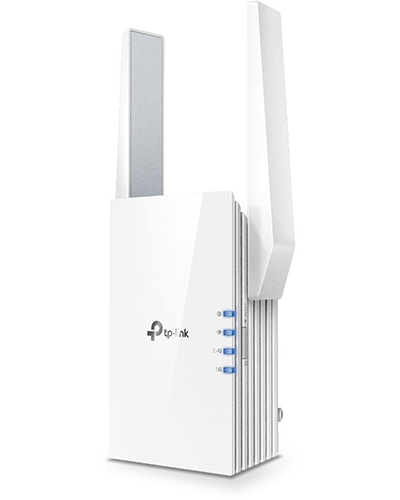

TP-LINK Dual-Band RE505X WiFi Range Extender

TP-LINK RE505X AX1500 Wifi Range Extender, White, 2x Antennas, MU-MIMO, Dual-Band (300+1200Mbps), GbE, 802.11ax

Thumbnail 1 : TP-LINK Dual-Band RE505X WiFi Range Extender Thumbnail 2 : TP-LINK Dual-Band RE505X WiFi Range Extender
Scan code: LN106199 Manufacturer code: RE505X
£61.49
Order now and receive it by Tuesday, 11th August
Delivery Options
  • By DPD On 11th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Cutting-Edge Wi-Fi 6

The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.


Fill Every Inch of Your Home with Wi-Fi 6

The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favourite show anywhere.


Adaptive Path Selection

Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.


High Speed Mode

Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.


Built-In Access Point Mode

RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.


TP-Link OneMesh TM

OneMeshTM is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMeshTM range extender to a OneMeshTM router. No more searching around for a stable connection.


Control at Your Fingertips

Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Features

• RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
• Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
• Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles.
• Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement.
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
• TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device.
• Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point.

Specifications
Networking, Connectivity & Ports
Model RE505X
Form-Factor Desktop
Device Type WiFi Range Extender
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000
Network Ports 1 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 150 Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 2
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
  • 1 x 2.4 GHz Wi-Fi LED
  • 1 x 5 GHz Wi-Fi LED
  • 1 x Power LED
  • 1 x WiFi Signal Strength LEDs
Buttons
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
  • Linux
  • Mac OS
  • UNIX
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Vista
  • Windows XP
Max. Power Consumption
PSU Type
Security & VPN
Security Protocols N/A
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 74 x 124.8 x 46 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN106199
Model Number RE505X
GTIN 6935364089535
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
