tp-link Omada DR3220v-4G 4G+ Cat6 Gigabit Rackmount DSL Gateway

tp-link Omada DR3220v-4G DSL Gateway, 2× Nano SIM, 1× DSL Port, 2× FXS Ports, 1× GbE SFP Combo, 4× GbE RJ45, USB 3.0

Scan code: LN160709 Manufacturer code: DR3220v-4G
£425.48
£5.48 Next day delivery
Stock arrives 1-3 days from time of order
ETA 1-3 days
Pay in 3 interest-free payments of £141.83

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £17.73 / month (APR 0%) for 24 months
  • With a 10% deposit from just £10.63 / month (APR 15.9%)
  • SCANPROTECT Protect against installation damage for 28 days.

DR3220v-4G Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway from tp-link

DR3220v-4G Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway from tp-link.

Built for Reliable Business Networking The Omada DR3220v-4G is a versatile 4G+ Cat6 Gigabit Rackmount DSL Gateway, designed to deliver fast, reliable and flexible connectivity for small businesses. Supporting Super VDSL speeds of up to 350 Mbps and 4G+ LTE speeds of up to 300 Mbps, it offers dual Nano SIM failover, intelligent load balancing and multiple WAN connectivity options to help maintain uninterrupted network access. With advanced VPN security, VoIP support and centralised cloud management through Omada SDN, the DR3220v-4G provides a powerful, secure and cost-effective networking solution.

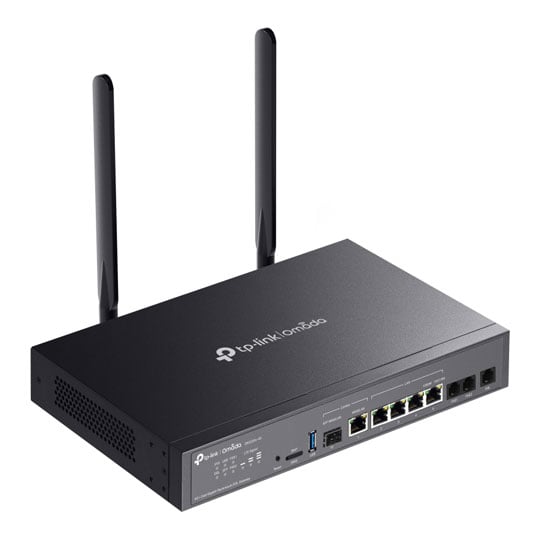

Key visual of gateway with antennas attached.

Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway

DR3220v-4G

VDSL icon.

Super VDSL(Up to 350 Mbps)

DSL icon.

VDSL2/ADSL2+/ADSL2/ADSL Compatibility

4G icon.

4G+ Cat6 Up to 300Mbps

Sim icon.

2x Nano SIM for 4G/LTE Failover

RJ45 icon.

1x Combo SFP/RJ45 WAN/LAN, 4x RJ45 LAN

VPN icon.

IPSec/PPTP/L2TP/OpenVPN
WireGuard/GRE/SSL VPN

VOIP icon.

VoIP Support

Cloud icon.

Centralised Management

Load balancing icon.

Load Balancing Between DSL, Ethernet WAN and 4G

Installation icon.

Easy & Flexible Installation

Get the Higher DSL Speeds Cost-Effectively

The integrated DSL port supports Super VDSL (VDSL2 35b) and is compatible with VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

DR3220v-4G’s Super VDSL 350 Mbps
VDSL2 100 Mbps
AVDSL2+ 24 Mbps
3.5x faster than VDSL2

Get Instant 4G+ LTE Internet up to 300 Mbps

300Mbps gateway against a 150Mbps gateway.

Versatile Connectivity

DR3220v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, 4G access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fibre modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Front angle of gateway
Dual Nano 4G SIM.
Back Up: 4G/3G USB Modem.
Fiber/Cable Modem.
Ethernet Port.
DSL Port.

Software Defined Networking (SDN) with Cloud Access

Centralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

Network diagram showing an Omada cloud-based controller and web browser accessing three Omada Gateways through the internet, illustrating cloud-based network management.
Diagram of Omada Controller establishing secure VPN tunnels between headquarter building and subsidiary building.

High-Security and High-Performance VPN SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study in distributed environments.

Specifications
Networking, Connectivity & Ports
Model DR3220v-4G
Form-Factor Desktop
Device Type N/A
Compatible Internet Connections
Network Connectivity 10/100/1000
Network Ports
  • 4 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45/SFP Combo 10/100/1000 (Gigabit) for WAN
Other Connectors 1 x USB 3.0
USB Applications
Wired Protocols
Total LAN Connections 5
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed N/A
Wireless Protocols IEEE 802.1q
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power N/A
Antenna Two 3dBi omnidirectional detachable
Core Features
Features
Router/Modem Processor
Internal RAM Memory 512MB
Internal RAM Memory Type DDR4
Internal Flash Memory 256MB
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 24.4 W
Security & VPN
Security Protocols
  • Access Control
  • IP and MAC Address Binding
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN160709
Model Number DR3220v-4G
GTIN 1210002608411
