New
Scan code: LN98160 Manufacturer code: EAP115-Wall

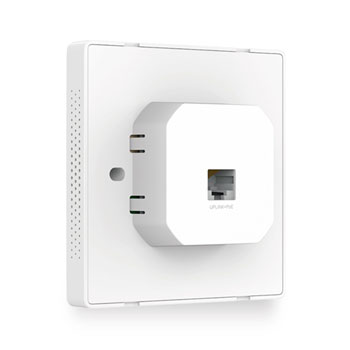

TP-LINK EAP115-Wall UK Mains Face Plate Wifi POE Access Point

TP-LINK ETP-AP115-Wall 300Mbps Wireless N Wall-Plate Access Point, 10/100Mbps Ethernet, PoE(IEEE 802.3af)

Thumbnail 1 : TP-LINK EAP115-Wall UK Mains Face Plate Wifi POE Access Point Thumbnail 2 : TP-LINK EAP115-Wall UK Mains Face Plate Wifi POE Access Point
Scan code: LN98160 Manufacturer code: EAP115-Wall
£31.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.

Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.

Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

Free Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Features • Easy-mount construction allows installation into any standard EU-type data wall-box.
• Compact, low-profile design fits discreetly with any existing interior style.
• Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs.
• Support Power over Ethernet (802.3af) for convenient and affordable installation.
• Enterprise class Wi-Fi security helps to decrease network security threats.
• Captive portal provides one convenient method of authentication for Wi-Fi guests.
• Supports management vlan for an enhanced network management.
Specifications
Networking, Connectivity & Ports
Model ETP-AP115
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections Cable-based Modems
Network Connectivity 10/100
Network Ports 1 x RJ45 10/100 (Fast Ethernet) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 1
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Unknown
Wireless
Wireless Speed 300 Mbps
Wireless Protocols
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3af PoE
Wireless Band
Frequency 2.4 GHz
Operation Channel
Wireless Transmitter Power <20dBm(2.4GHz)
Antenna Internal 2*1.8dBi Omni
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x LED On/Off Button
  • 1 x Reset Button
OS Support
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption 2.8 W
PSU Type
Security & VPN
Security Protocols
  • 802.1x
  • Access Control
  • Captive Portal Authentication
  • Rogue AP Detection
  • SSID to VLAN Mapping
  • WEP (128 bit)
  • WEP (152 bit)
  • WEP (64 bit)
  • Wireless Isolation Between Clients
  • Wireless Mac Address Filtering
  • WPA
  • WPA-PSK
  • WPA2-Enterprise
  • WPA2-PSK
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 86.8 x 30.2 x 86.8 mm (WxHxD)
Weight
Additional Information
Scan Code LN98160
Model Number EAP115-Wall
GTIN 6935364096670
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
