Scan code: LN110976 Manufacturer code: EAP230-Wall

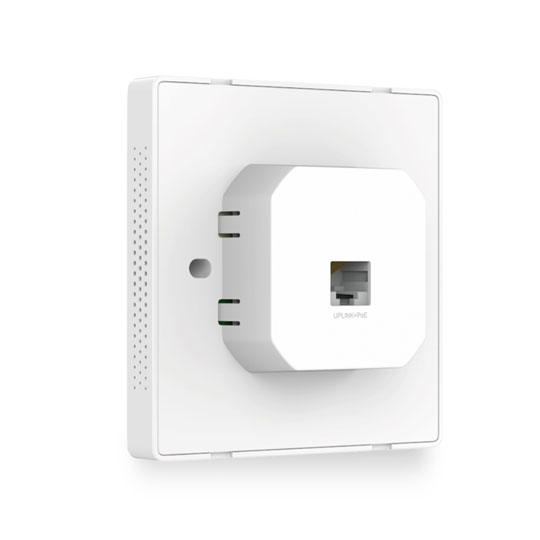

TP-LINK EAP230 Wall-Plate Access Point

TP-LINK EAP230-Wall Omada Wall-Plate Access Point , AC1200 Wireless, MU-MIMO, 2 Gigabit Ethernet Ports

Thumbnail 1 : TP-LINK EAP230 Wall-Plate Access Point Thumbnail 2 : TP-LINK EAP230 Wall-Plate Access Point Thumbnail 3 : TP-LINK EAP230 Wall-Plate Access Point
Scan code: LN110976 Manufacturer code: EAP230-Wall
£74.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Private Connection for Every Room.

EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.


MU-MIMO + Dual-Band: Faster Connection for More Devices

802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.


Seamlessly Blends with any Décor

The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.


High-Speed Gigabit Port

Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Features

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Specifications
Edition
Form Factor
Total Network Ports 2 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.11ac
  • IEEE 802.11g
  • IEEE 802.11n
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD)
Weight
Additional Information
Scan Code LN110976
Model Number EAP230-Wall
GTIN 2208561000579
