Scan code: LN122275 Manufacturer code: L50 BLACK

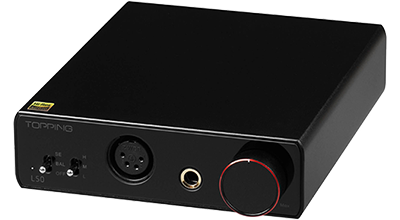

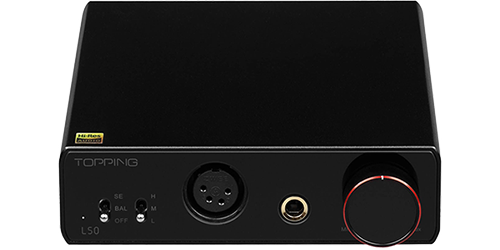

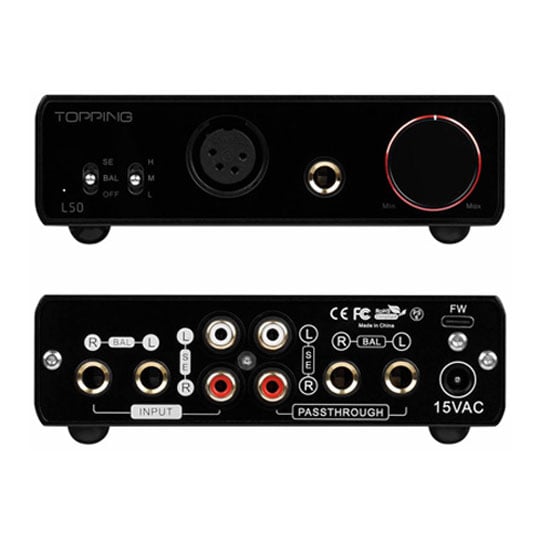

Topping - L50 - Desktop Headphone Amp - Black

Topping - L50, Ultra-High Performance Headphone Amplfier, New Generation NFCA circuitry - Black

Thumbnail 1 : Topping - L50 - Desktop Headphone Amp - Black Thumbnail 2 : Topping - L50 - Desktop Headphone Amp - Black Thumbnail 3 : Topping - L50 - Desktop Headphone Amp - Black
Scan code: LN122275 Manufacturer code: L50 BLACK
Order now and receive it by Tuesday, 28th June
£229.00
Get it Tuesday, 28 JunIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £10.13 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £19.69
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.00
Total inc. interest: £236.20
Monthly Payment: £10.13
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £229.00
Total inc. interest: £242.95
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

NFCA Balanced Desktop Amplifier
Topping - L50

Topping L50

Small in size, huge in powerTopping’s L50 is wallet-friendly, professional-grade NFCA desktop amplifier. Offering a choice of 3 varying stages of gain, an incredibly low THD, low output impedance and the capability to deliver 3.5W of power into a 16-ohm load. The nested feedback composite amplifier circuitry ensures that the noise level is continuously well below the audible threshold to deliver a greater background which works equally well with both efficient and inefficient headphones.

Twice the power of the L30The L50 uses a newly redesigned NFCA circuit based on the one used in the A30 Pro. It provides twice the power of the L30 at higher impedances, while maintaining the same ultra-low noise and high dynamic range.

at a glance • NFCA Circuitry
• Super low THD & Superbly High DNR
• Incredibly Low Noise Floor
• 3.500mW into 16Ω
• Output Impedance of <0.1Ω
• Passthrough TRS & RCA
• Future Firmware Support

what's included? • Topping L50
• AC adapter
• 6.35mm to 3.5mm adapter
• Warranty card
• User manual

Professioanl & Powerful NFCA Performance

back

high-end performanceEnjoy top-of-the-line dynamic range, SINAD, and THD+N thanks to the L50’s NFCA circuit. By using negative feedback loops, it reduces fluctuation in the output, resulting in THD of 0.00006%, SINAD of 125, and a dynamic range of 145dB.

Calling all cansWith three gain settings that span almost 30dB, the L50 can power your whole collection of headphones. Its low noise level of 0.3uV means that you won’t hear background noise even on the most sensitive of IEMs, while its max output level of 37Vpp means it can meet the needs of extremely low-sensitivity full-sized headphones.

The Tech Spec

Features Specification
Inputs 1x Balanced stereo Jack 6.35mm TRS
1x Single-ended stereo RCA
Outputs 1x Balanced XLR 4 poles headphone output
1x Single-ended Jack 6.35mm headphone output
1x Balanced stereo Jack 6.35mm TRS
1x Single-ended stereo RCA
Single-ended input [email protected] (A-wt) - <0.00006% @ output=780mW (32Ω) / <0.00006% @ output=333mW (300Ω)
THD 20-20kHz (90kBW) - <0.00008% @output=780mW (32Ω) / <0.00008% @output=76mW (300Ω)
SNR Max out 1kHz (A-wt): 145dB
SNR 50mV OUT 1kHz: 104dB
Dynamic range 1kHz (A-wt): 145dB
Frequency response: 20Hz-40kHz (±0.05dB
Channel [email protected]: -119dB
Output impedance: <0.1Ω
Balanced input [email protected] (A-wt)
<0.00006% @ output=780mW (32Ω) / <0.00006% @ output=333mW (300Ω)
THD 20-20kHz (90kBW) - <0.0001% @output=780mW (32Ω) / <0.0001% @output=76mW (300Ω)
SNR Max out 1kHz (A-wt): 140dB
SNR 50mV OUT 1kHz: 104dB
Dynamic range 1kHz (A-wt): 140dB
Frequency response: 20Hz-40kHz (±0.1dB)
Specifications
Product Type Combo DAC / Headphone Amp
Max Sample Rate
Connectivity (Input)
  • 1 x 2x RCA Phono (L/R)
  • 1 x 6.35mm Mono (Balanced)
Connectivity (Output)
  • 1 x 2x RCA Phono (L/R)
  • 1 x 6.35mm Headphone Output
  • 1 x 6.35mm Mono (Balanced)
  • 1 x XLR
Bluetooth No
Rechargable Battery No
Dimensions not published mm (WxHxD)
Additional Information
Scan Code LN122275
Model Number L50 BLACK
GTIN 2108628429
