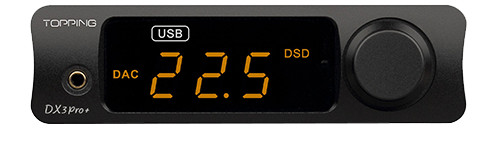

Topping - DX3Pro+ DAC & Headphone Amplifier - Black
Topping - DX3 Pro+ DAC / AMP - LDAC Bluetooth / USB / SP-DIF Inputs - Up to 768kHz / DSD512 - Black
Email me when the availability or price changes
Desktop DAC/Amp with XMOS XU208 USB Chip
Topping - DX3 Pro +
(Black)
includes XMOS XU208 USB chip
Topping’s impressive DX3 Pro + boasts a wealth of spectacular specifications, and at the very top of this list is the highly regarded XMOS XU208 USB chip with dual AK4493 DACs and an OPA1612 opamp. This impressive combination enables the DAC/Amp to push your favourite headphones with unhindered precision and power: up to an impressive 1,000mW from the 1/8” input on the front facing panel.
The DX3 Pro + is a versatile piece of kit too, with inputs to accommodate USB, optical, coaxial and Bluetooth, the last of which fully supports SBC, AAC, aptX, aptX II and aptX HD protocols. How about pairing the DX3 Pro + with an even more powerful amp, no problem, the DX3 Pro + is capable of operating as a DAC thanks to its RCA output.
at a glance
• 4 output modes: Headphone amp, headphone amp + line out, DAC, preamp
• USB input supports up to 32bit/768kHz PCM decoding and DSD512 native decoding
• 2x coaxial inputs and 1x optical input support up to 24bit/192kHz PCM decoding
• Bluetooth input supports SBC, AAC, aptX, aptX II, and aptX HD protocols
• Headphone amp output power: 1,000 mW x 2 at 32 ohms, 125 mW x 2 at 300 ohms
• XMOS XU208 + 2x AK4493 + OPA1612
what's included?
• DX3 Pro + x1
• 15V1A adapter x1
• User's manual x1
• Warranty card x1
• Bluetooth antenna x1
• Remote control x1
Bluetooth 5.0 LDAC
full support for LDACWhilst it’s true the previous iteration of the DX3 Pro + featured Bluetooth connectivity, for the V2, this has been improved. The CSR8675 chip enables Bluetooth in version 5.0 and fully supports LDAC which enables 24-bit file playback. Furthermore, the internal DAC of the CSR8675 chip is not used.
This is linked to the dual AK4493 DACs which are undoubtedly more efficient for digital/analogue decoding.
USB XMOS XU208
play PCM files up to 32bit 768kHzThe XMOS XU208 chip used for the USB interface of the DX3 Pro V2 supports files with high sampling rates. Thus, using this USB input it is possible to enjoy PCM files up to 32bit 768kHz and up to DSD512 Native.
Topping also took the time to offer a custom version of the Thesycon USB driver to ensure better compatibility with computers running Windows.
The Tech Spec
| Features | Specification | Product type | DAC and Headphone amplifier |
|---|---|
| Inputs | 1x USB-B (XMOS XU208) 1x Optical Toslink 2x S/PDIF Coaxial Bluetooth |
| Outputs | 1x Stereo RCA Line Output 1x Jack 3.5mm Headphone Output |
| THD+N @ A-Weighting | < 0.0004% @ 1kHz < 0.0005% @ 20Hz-20kHz |
| SNR @ A-Weighting | > 120dB @ 1kHz |
| Frequency response | 20Hz - 20kHz (+/-0.35dB) |
| Output level | 2Vrms @ 0dBFS |
| Noise | < 2µVrms |
| Crosstalk | -135dB @ 1kHz |
| Channel balance | < 0.1dB |
| Output impedance | 100Ω |
| Alimentation | 15VDC 1A (power supply included) |
| Case material | Aluminium |
| Dimensions | 120 x 165 x 40mm |
| Weight | 400g |
| Package | 1x Topping DX3 Pro + V2 1x Bluetooth Antenna 1x Remote Control 1x USB Cable 1x Power supply |
