Topping - D90SE Desktop DAC - Black
Topping - D90SE Desktop MQA DAC, PCM32bit/768kHz DAC Balanced Decoder - Black
Email me when the availability or price changes
MQA Bluetooth Full Balanced DAC

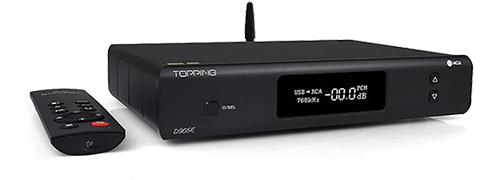

Topping - D90SE
(Black)
the dac that does it all!Meet the all-new flagship Balanced Desktop DAC, the Topping D90SE. Topping has carefully implemented an advanced ES9038Pro 32-Bit DAC chip that is paired with a 16-core XMOS XU216 USB signal receiver chip for high-resolution audio decoding. The D90SE supports full MQA decoding as well as PCM 768kHz and native DSD512 decoding.
Flagship DAC, Flagship PerformanceTopping D90SE is a flagship-grade desktop DAC capable of providing unmatched performance with its high-quality audiophile-grade components. It achieves industry-leading performance with an ultra-low-distortion rating of <0.00005%. It brings the true details out of our music with great clarity and precision.
at a glance
• Flagship ES9038Pro DAC Chip
• Hi-Res Audio & Hi-Res Audio Wireless Certified
• Flagship-Grade Performance With Ultra-Low Distortion
• Native DSD512 Decoding
High-Resolution Bluetooth Connectivity
seamless Bluetooth V5.0 connectivityTopping D90SE adopts Qualcomm's latest CSR8675 Bluetooth chip that provides seamless Bluetooth V5.0 connectivity. It supports multiple high-resolution wireless codecs including LDAC, AptX HD, AptX LL, AptX, SBC, and AAC.
Balanced & Single-Ended Selectable Output OptionsD90SE features balanced XLR and single-ended RCA output ports. Users get the option to choose between different output options such as, "XLR Only", "RCA Only", or "XLR+RCA". Output option can also be chosen between 4V and 5V for XLR output and 2V and 2.5V for the RCA output option.
Pre-Amp FunctionTopping D90SE is not only a dedicated high-end DAC with a fixed output level, it can also serve as a pre-amplifier where you can control the output volume level using the front panel or the remote control.
The Tech Spec
Features | Specification | PCM | 16-32bit / 44.1 - 768kHz |
---|---|
DSD (Native) | DSD64 - DSD512 |
DSD (DoP) | DSD64 - DSD256 |
MQA | Renderer, MQA, MQA Studio |
Bluetooth | AAC / SBC / APTX / APTX LL / APTX HD / LDAC |
THD+N@A-wt | <0.00007% @1kHz |
SNR@A-wt | 127dB @1kHz |
Dynamic range @A-wt | 127dB @1kHz |
Frequency response | 20Hz - 20kHz (±0.1dB) 20Hz - 40kHz (±0.3dB) |
Output level | 2.1Vrms @0dBFS (4V Mode) 2.6Vrms @0dBFS (5V Mode) |
Crosstalk | -124dB @1kHz |
Input | AES, USB, digital optical, coaxial, ISS, Bluetooth |
Output | (2) balanced XLR, (2) balanced RCA |
Maximum audio resolution | Up to 768 kHz, 32-bit |
Bluetooth codec support | AAC, SBC, aptX, aptXLL, aptXHD, LDAC |
Dimensions | 8.8 x 6.3 x 1.8 in (22.4 x 16 x 4.5 cm) |
