Topping - D10S Desktop DAC (Silver)
Topping - D10S USB Desktop DAC, Custom Thesycon Driver - Silver
Email me when the availability or price changes

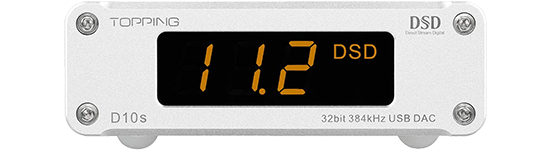

Topping - D10S (Silver)
Desktop DAC
Perfect Desktop AdditionThe Topping D10S is a USB DAC with outputs for Line out, Optical and Coaxial. It uses a processor from XMOS (XU208), ES9038Q2M, OPA2134, and features a custom Thesycon driver which provides better compatibility with high resolution audio. Whilst allowing Windows to support PCM384kHz/32bit and DSD256 (Native) decode whilst displaying the format and sampling rate using an indicator.
The D10S also includes an Opamp socket to make it easier to change to another Opamp resulting in a different sound effect and works with Android, Windows (7 or above) and MAC. The D10S can also automatically turn on/off simultaneously with the computer, and can be used and a USB convertor, so you can connect USB to the device and output coaxial or optical to another DAC.
at a glance
• Customized Thesycon driver for better compatibility with high resolution audio
• Compatible with 16-32bit/44.1-384kHz and DSD64-DSD256
• Works with Android, Windows (7 or above) and MAC
• USB DAC with Line out, Optical and Coaxial output
The Tech Spec
| Features | Specification | Power Input | DC5V / 0.5A (USB power supply) |
|---|---|
| Colour | Silver |
| Input | USB |
| Output | COAX/OPT/RCA |
| Display | Customized digital tube |
| USB IN | 44.1kHz- 384kHz/16Bit-32Bit DSD64-DSD256(Native) DSD128(Dop) |
| OPT/COAX Out | 44.1kHz- 192kHz/16Bit- 24Bit DSD64 (Dop) |
| THD+N @1kHz A-wt | <0.0002% |
| SNR @1kHz A-wt | 120dB |
| Dynamic Range @1kHz A-wt | 120dB |
| Frequency Response | 20Hz-20kHz(+0.1dB), 20Hz-40kHz(+0.4dB) |
| Output Level | 2Vrms @0dBFS |
| Noise @A-wt | <2.5uVrms |
| Channel Crosstalk @1kHz | -135dB |
| Channel Balance | <0.02dB |
| Output Impedance | 20Ω |
| Dimensions | 21 x 15.2 x 6.8 cm |
| Weight | 200g |
