Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case
Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case
Scan code: LN149714 Manufacturer code: CA-1Z4-00M6WN-00
£69.98Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case
  • Thumbnail 2 : Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case
  • Thumbnail 3 : Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case
  • Thumbnail 4 : Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case

Thermaltake View 170 TG ARGB Snow mATX Tempered Glass PC Gaming Case

Thermaltake View 170 TG ARGB, White, mATX Chassis w/ TG Windows, 3x 120mm ARGB Fan, USB 3.0, mATX/mITX

Scan code: LN149714 Manufacturer code: CA-1Z4-00M6WN-00
£69.98
£5.48 Next day delivery
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £23.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Suggested Alternatives

Product Overview

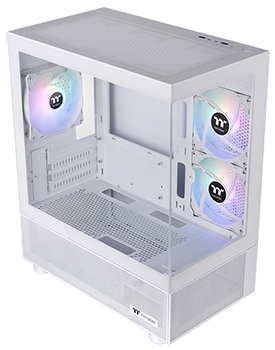

View 170 TG ARGB Snow Micro Chassis

The Thermaltake View 170 TG ARGB Snow Micro Chassis is a visually striking mATX case that allows builders and enthusiasts to turn their PCs into works of art. boasting tempered glass front and main-side panels, this compact chassis offers unparalleled visibility of your components. It comes pre-installed with three 120mm ARGB Lite Fans, providing both highly effective cooling and eye-catching RGB lighting that can be synchronised with popular motherboard software. The case has the capability to support up to seven 120mm fans and can accommodate a 280mm/240mm radiator on top and a 120mm in the rear, ensuring superb versatility and thermal performance. With its sleek white design, USB 3.0 ports, and compatibility with Mini ITX and Micro ATX motherboards, the View 170 TG ARGB Snow Micro Chassis is perfect for builders seeking to save some space without sacrificing aesthetics or performance.

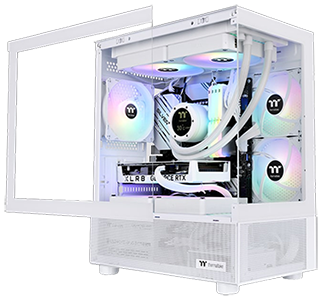

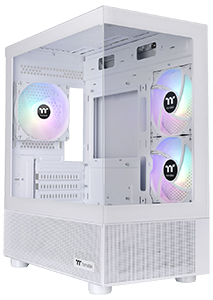

Glass Act: Unparalleled Visibility

The View 170 TG mATX chassis was designed for breathtaking visbility, boasting front and main-side tempered glass panels, giving you the right to showcase your impeccable building work.


Fantastic Flexability

The View 170 TG ARGB Snow Micro Chassis offers incredible expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement up to 340mm in length, a power supply up to 180mm in length. It's optimised for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top and a 120mm radiator at the rear, letting you build to your needs.


Versatile Storage Options

For storage compatibility, the View 170 TG ARGB Snow Micro Chassis gives maximum support of up to two 2.5‘’ SSDs and one 3.5‘’ HDD in total.


Sync with Motherboard RGB Software

Designed to synchronise with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.


Features

• Tempered Glass Panels: boasts two 3mm tempered glass panels on the front and main side.
• Pre-Installed Fans: Comes with three 120mm ARGB Lite Fans for efficient cooling and customizable RGB lighting.
• RGB Lighting Control: Lighting effects can be synchronized with popular motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

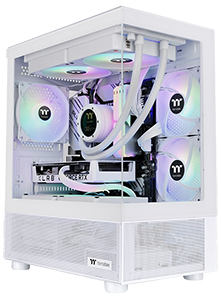

• Cooling Support: Supports up to seven 120mm fans and can accommodate a 280mm/240mm radiator on top and a 120mm radiator in the rear.
• Connectivity: Includes two USB 3.0 ports and an HD audio port on the top panel for easy access.
• Motherboard Compatibility: Compatible with Mini ITX and Micro ATX motherboards.
• Drive Bays: Offers one 3.5” and two 2.5” drive bays.
• Expansion Slots: Features four expansion slots for additional hardware.
• Dimensions: Measures 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inches).


Specifications
Core Chassis Specifications
Case Edition View 170 TG ARGB Micro Chassis - Snow
Case Form Factor MicroATX
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 3.5"
Standard Expansion Slots 4
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 5 x 120mm
  • 2 x 120mm / 2x 140mm
Fans Included 3 x 120mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 160 mm
Max GPU Card Length 340 mm
Cable Routing Space 180 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
  • Compatible with ASRock PolyChromeSync
  • Compatible with ASUS AURA Sync
  • Compatible with Gigabyte RGB Fusion
  • Compatible with MSI Mystic Light Sync
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials SPCC / Tempered Glass
Dimensions 212 x 438 x 377.5 (WxHxD mm)
Weight 4.65 kg (Approx)
Package Type Retail
Please Note
Additional Information
Scan Code LN149714
Model Number CA-1Z4-00M6WN-00
GTIN 4711475645349
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
Manufacturer Contact Details
Manufacturer:
ThermalTake
