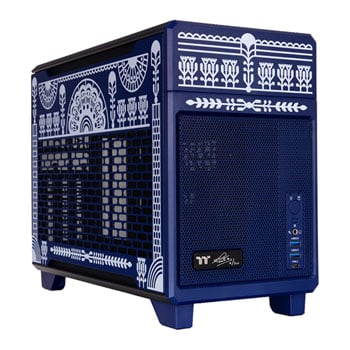

Thermaltake TR100 Koralie Edition Mini-ITX Cobalt Blue PC Gaming Case

Thermaltake TR100 Koralie Edition Chassis, Cobalt Blue, Mini Tower, Modular Design, USB 3.2 / 3.5mm, Mini-ITX

Scan code: LN167976 Manufacturer code: CA-11A-00SPNN-AR
£129.98
Order now and get it tomorrow, Thu 11th Jun
Get it Tomorrow, 11 JunIn stock
Pay in 3 interest-free payments of £43.33

Email me when the availability or price changes

  • By DPD On 11th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £11.78 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Thermaltake TR100 Koralie Edition Mini Tower Chassis

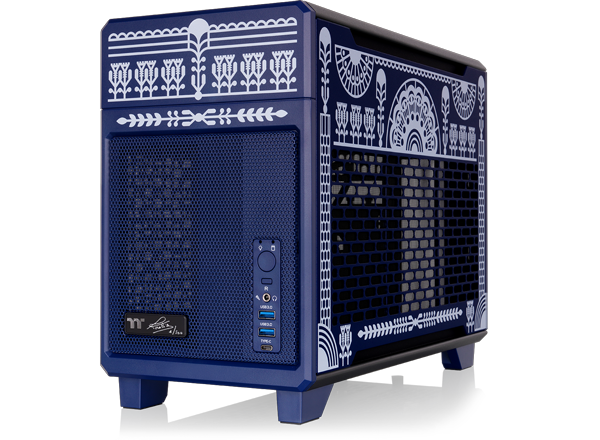

Thermaltake TR100 Koralie Edition Mini Tower Chassis Gaming PC Case

Where Technology Meets Artistry​ In collaboration with French artist Koralie, the TR100 Koralie Edition Mini Tower Chassis is a compact, dual-chamber Mini-ITX case,designed for those who demand both performance and portability. It includes a PCIe 4.0 riser cable, supports an SFX power supply and features space for two 120mm or 140mm fans on the top, as well as room for a 280mm AIO cooler. There are filters at the top, front and side of the chassis to protect the system from dust. The TR100 Koralie Edition Mini Tower Chassis supports up to two 2.5" SSDs, one in each chamber. The idea was to create a limited-edition chassis that goes beyond its strictly functional role (positioned at the intersection of technology and furniture) to become a work of art that people want to display in their homes. TR100 Koralie Edition merges Thermaltake’s identity with Koralie’s artistic universe.

Design story image of artist holding TR100 Koralie Edition Case

A Journey Beyond Boundaries

This vision led to a collaboration with French artist Koralie, whose work harmonises geometry, nature, and emotion. Her art embodies balance – between structure and freedom, rhythm and stillness – and aligns seamlessly with Thermaltake’s commitment to design that connects technology with the human spirit.
Together, Thermaltake and Koralie designed a limited-edition chassis that blends technology with art, transforming a functional component into a striking piece.

Artistry of the chassis

Art you can build in

Technology can be powerful, yet calm; precise, yet human. A PC case, when shaped with intention, can become part of one’s living environment – not just to perform, but to bring beauty and peace of mind. Each case comes with a hand-signed and hand-numbered plate, making every chassis unique and part of a limited series.

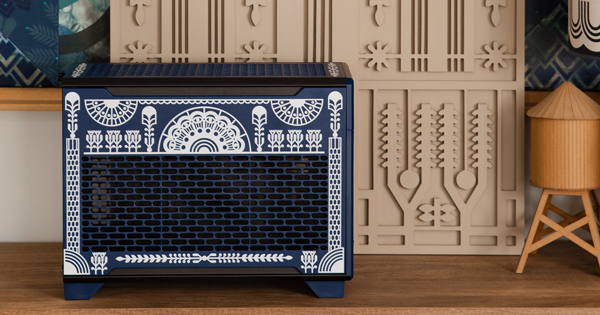

TR100 Koralie Edition Mini Tower

Size Down, Power up.

The TR100 Koralie Edition Mini Tower is a compact dual-chamber Mini-ITX case designed for performance and portability. It supports a 280mm AIO, dual top fans, and two 2.5” SSDs. Removable, ventilated panels ensure easy installation and cooling. Optional accessories include a 3.9" LCD Screen Kit and a portable gaming suitcase.

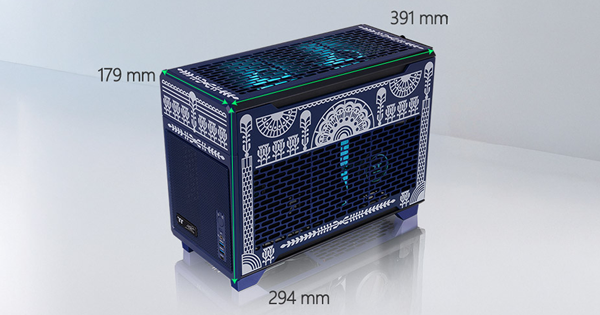

Sizing of PC chassis

Compact Design

TR100 Koralie Edition Mini Tower Chassis is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

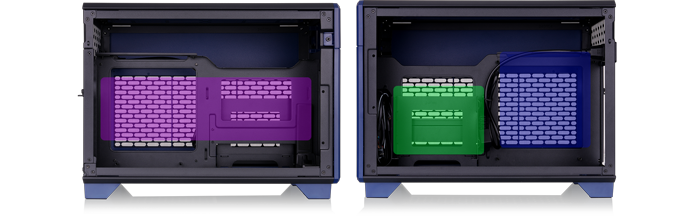

Hardware Support and Cooling Solution

Despite its compact footprint, the TR100 Koralie Edition Mini Tower Chassis still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5" SSDs. For cooling support, up to two 120mm/140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.

PC case support
features icon

GPU Max 360mm

features icon

PSU Max 130mm

features icon

Motherboard 6.7" x 6.7" (Mini-ITX)

features icon

Top Fan 120mm x2
140mm x2

features icon

Top Radiator 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

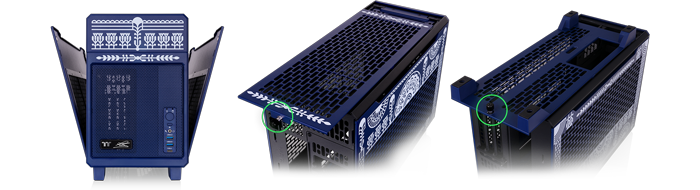

Easy Access

Removable case panels

Removable Panels The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

Top view of case, fading out to transparancy at the top

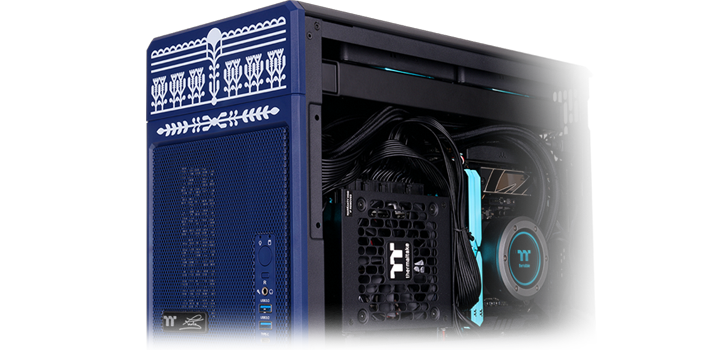

Removable PSU Bracket and Two Sets of Screw Holes
Supporting both SFX and SFX-L PSUs

Top angled view of glass case, fading out to transparancy the bottom

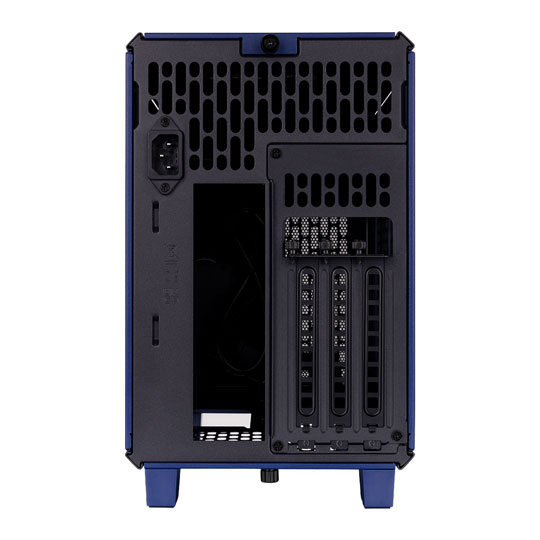

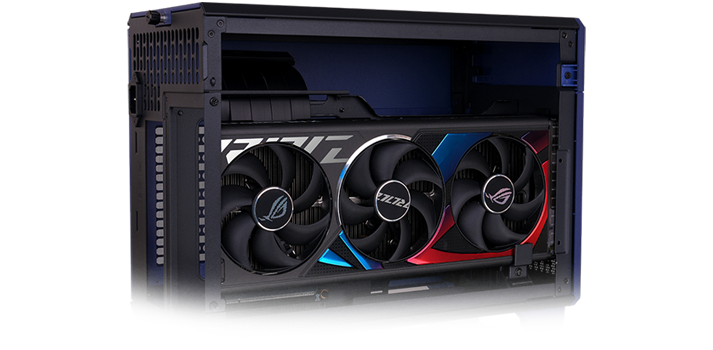

Detachable Rear PCI-E Panel and Integrated GPU Holder
Superior GPU Support

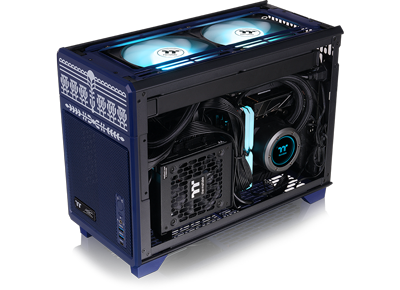

Massive Airflow & Incredible Performance

front side view of chassis

Efficient cooling solutions TR100 Koralie Edition Mini Tower Chassis supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
*The image is for reference only.

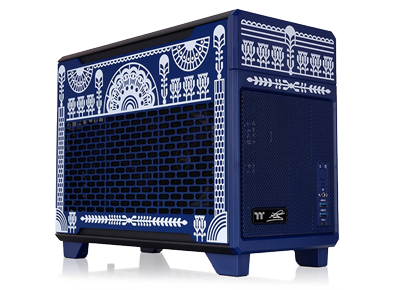

air intake of TR100

Air intake and exhaust Despite its compact size, the TR100 Koralie Edition Mini Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

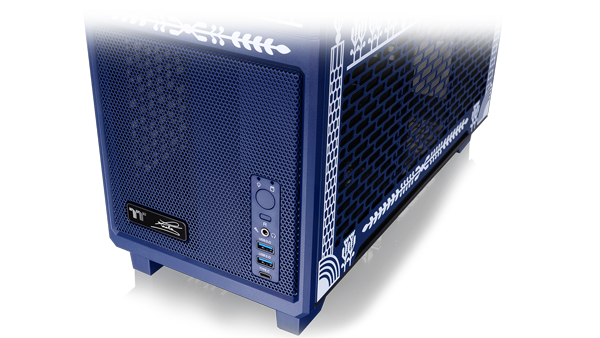

Front Panel I/O

Front I/O panel

Handy access Stay connected with the TR100 Mini Tower which consists of: Power button, Reset button, HD Audio, 2x USB 3.0 Type-A and 1x USB 3.2 Gen 2 Type-C.

Specifications
Core Chassis Specifications
Case Edition Thermaltake TR100 Koralie Edition
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 3.0
  • 1 x USB 3.2 Gen2 Type-C
Drive Bays 2 x 2.5" Internal
Standard Expansion Slots
Vertical Expansion Slots 3
Fans & Filters
Fan Bays 2 x 120mm / 2x 140mm
Fans Included None
Fan Controller/Hub
Dust Filters
  • Front
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 68 mm
Max GPU Card Length 360 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support SFX / SFX-L
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 130 mm
Chassis Physical Specifications
Colour Coral Blue
Chassis Construction Materials SPCC
Front Panel Type Mesh
Dimensions 179 x 294 x 391 (WxHxD mm)
Weight 4.05 kg (Approx)
Package Type Retail
Please Note
Additional Information
Scan Code LN167976
Model Number CA-11A-00SPNN-AR
GTIN 4711658546579
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
Manufacturer Contact Details
Manufacturer:
ThermalTake
