Scan code: LN82279 Manufacturer code: CA-1C6-00M1WN-03

Thermaltake Core V51 Tempered Glass Edition Mid Tower Case

Thermaltake Core V51 Tempered Glass Edition Mid Tower Modular Case with Window

Thumbnail 1 : Thermaltake Core V51 Tempered Glass Edition Mid Tower Case Thumbnail 2 : Thermaltake Core V51 Tempered Glass Edition Mid Tower Case Thumbnail 3 : Thermaltake Core V51 Tempered Glass Edition Mid Tower Case Thumbnail 4 : Thermaltake Core V51 Tempered Glass Edition Mid Tower Case
Scan code: LN82279 Manufacturer code: CA-1C6-00M1WN-03
£99.98
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

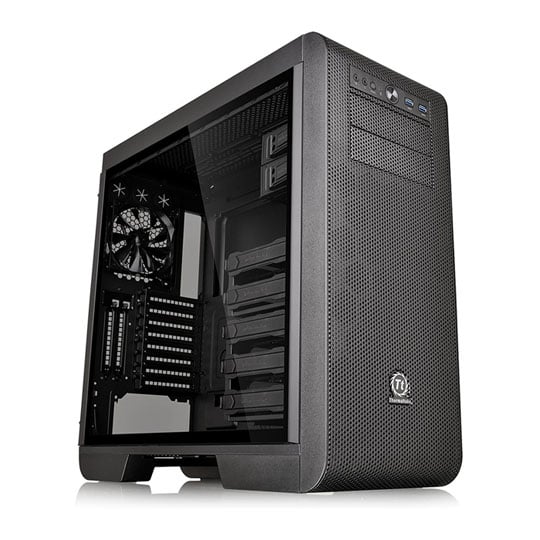

Product Overview Thermaltake Core V51 Tempered Glass Edition Mid Tower Chassis
The Core V51 Tempered Glass Edition mid tower chassis features a durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, three preinstalled 120mm fans, and the outstanding cooling performance. With its unprecedented space for high-end configurations and liquid cooling expansion, the Core V51 TG supports the latest PC hardware, and all high-end GPU cards. The Core V51 TG is an ideal choice for those who are looking for a space-saving chassis with excellent expandability and superior ventilation!

Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

4mm Thick Tempered Glass Window with Gorgeous View
The Core V51 TG features 4mm thick tempered glass to deliver excellent viewing capability. Moreover, unlike any other cases on the market, the enlarged glass window permits users to fully display every interior component of the system and show off their dedication and skill set.

Fully Modular Concept
The fully modular drive cages minimize the hassles of installation and removal. Especially, the Core V51 TG utilizes a tool-less drive bay design that allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs. The modular drive bay concept of “2+5” offers a good ratio for accessories and storage devices.

Excellent Expandability
The Core V51 TG supports motherboards up to standard E-ATX, a tower CPU cooler with maximum height 185mm, and a dual expansion slot VGA of up to 480mm in length without HDD rack. The Core V51 TG still leaves plenty of interior space for cable management even after installing a high-wattage PSU. Moreover, with the tool-free design, users can easily mount up to five 3.5”/2.5” (with HDD cage) and two 5.25” devices into the build at the same time.

Superior Ventilation
Featuring a width of 236mm, the Core V51 TG enables users to build a complete high-end system that supports up to three 140mm case fan or up to one 420mm liquid cooling radiator. Additionally, to improve system ventilation, the Core V51 TG comes with three 120mm fans (two at the front and one at the rear).

Riser GPU Support Design
Specially designed with dual GPU placement, the Core V51 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.

Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions. Features P/N CA-1C6-00M1WN-03
Case Type Mid Tower
Dimension (H x W x D) 540 x 236 x 560 mm
(21.3 x 9.3 x 22 inch)
Net Weight 12.3 kg
Side Panel Tempered Glass x 1
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) x 2
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays -Accessible
2 x 5.25’’
-Hidden
5 x 3.5’’ or 5 x 2.5’’
Expansion Slots 8
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”?3/8”?1/4” water tube
Fan Support Front:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm or 3 x 140mm
1 x 200mm or 2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 1 x 240mm
Clearance CPU cooler height limitation: 185mm
VGA length limitation: 310mm(with HDD rack)
480mm(without HDD rack)
PSU length limitation: 220mm (With Bottom Fan)
Specifications
Core Chassis Specifications
Case Edition
Case Form Factor
Motherboard Form Factor
I/O, Bays & Expansion
Front/Side/Top Panel I/O N/A
Drive Bays
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour
Chassis Contruction Materials
Dimensions
Weight
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
Thermaltake Core V51 Tempered Glass Edition Mid Tower Modular Case with Window is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Great case but flawed. Brilliant modularity, hate unnecessary cages. Easily fitted 360mm EKWB PE push rad on top, 240 SE with push and pull fans on front, and 240 SE pull on bottom. Bit of a squeeze with RM750 PSU regarding cables, but not too bad. My main gripe is when I finished build I took protective film of the tempered glass side to find the most irritating sticker ever. It's blue, said tempered glass on it, and was adhered with super glue. 45 minutes to completely remove it. Rediculous.
