Commander FP PWM 10 Port Fan Splitter Hub from Thermaltake FP

Thermaltake Commander FP, 10 Port Fan Splitter Hub for PWM Fans

Scan code: LN72055 Manufacturer code: AC-023-AN1NAN-A1 Request call
£9.98Item due on 25 April 2018
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

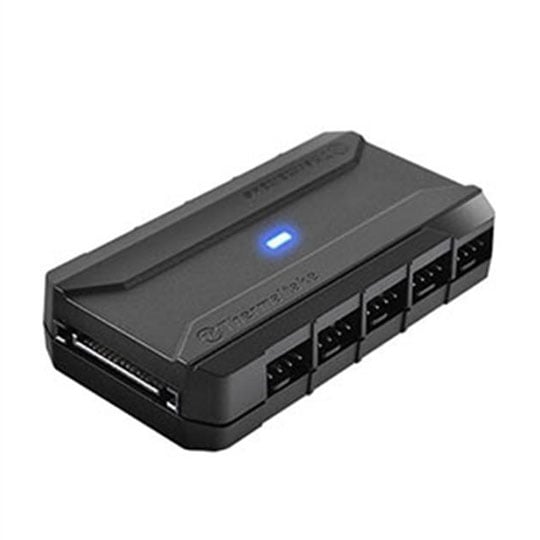

Product Overview Commander FP – 10 Port Hub for PWM Fans
The new Thermaltake’s PWM fan hub Commander FP is capable of powering up to 10 independent PWM fans which allows users to saturate the case with fans while maintaining superb cable management. Sporting a blue LED indicator light, the Commander FP ensures the inside of your case looks just as good as the outside, making it the best choice for cooling performance enthusiasts or users seeking no-fuss installation! Features 10 Independent PWM Fans Supported
Capable of connecting 10 PWM fans for speed-control* simultaneously, the Commander FP enables users to optimally expand cooling capability within the chassis and enjoy greater system performance.
* Only the channel port with glossy side support RPM signal detection

Convenient SATA Power Input
Designed with a stable SATA power input in mind, the Commander FP safely and reliably powers up to 9 PWM fans simultaneously*. Direct power from PSU prevents stray current when the fan hub is in use.
* Channel port with glossy side powered directly by motherboard

Neat Cable Management
Featuring a blue LED indicator for access indication, Commander FP provides superb cable management which allows users to experience the unrivaled airflow and water cooling capabilities.

High Quality Symmetrical Design
Sporting a symmetrical design, the Commander FP uses high-quality textured plastic in its construction. Arc trim on both sides gives the Commander FP a sleek, modern look that matches its superior performance.

Easy Application
The Commander FP ships with 5 reusable beaded cable ties, 2 velcro tabs, and one PWM signal cable that let users keep the cables neat and tidy and hold the fan hub steadily in place.

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Thermaltake Commander FP, 10 Port Fan Splitter Hub for PWM Fans is rated 3.6 out of 5 by 5.
Rated 2 out of 5 by from Doesn't actually do what the description reports I bought this 9 months and have tried multiple times to get it to work thinking it was my software/drivers/mobo but now I'm pretty sure it just doesn't do what it says. I wanted it to PWM control 3x 4 pin PWM fans off one PWM port on my motherboard so that it could run quiet when I want it to and cool when I want it to automatically. It doesn't actually do this - it has one sensing port which is PWM controlled but all the other ports only work via three pins. If you plug in a 4 pin PWM fan on the other port it runs at 100%. It does come with 4 pin to 3 pin adapters - which if you use it adapts to the fans speed BUT only to some extent. For example with 3 fans connected if you turn the PWM down to 0% only 1 of them stops - the others continue running still quite loud but not at 100%, maybe 50% or so. So it would work to some extent for some people but just not me
Date published: 2017-09-08
Rated 5 out of 5 by from Works as advertised No problems with it at all, easy to use, works well. I used noctua redux PWM fans with it.
Date published: 2017-07-21
Rated 1 out of 5 by from Bought to solve my PWM issue, it didn't Arrived quickly and in good condition, but didn't do what I wanted it to. It's supposed to take the PWM reading from one fan (the one plugged into the shiny port) and replicate the power feed across the others (up to 9). However mine just ran at full speed instead, ignoring the PWM input. Sad. Returned for refund, Scan were excellent as usual.
Date published: 2017-01-26
Rated 5 out of 5 by from Does the job Excellent product for the price. I would recommend this for controlling PWM fans (up to 10) from one header on your motherboard instead of these display fan controllers, because, THE PRICE. and yet still does the job. Also its very discreet and easy to hide. Great piece of kit
Date published: 2016-12-18
Rated 5 out of 5 by from A connection is made Great solution for adding PWM fans neatly. It is quite thick however so finding somewhere to place it at the back where all your wiring is can be tricky.
Date published: 2016-09-16
  • y_2018, m_4, d_22, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_GB, sid_72055, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Pwm control

Can this be connected to the cpu fan header to control fan rpm? And is the Sata connection to the psu required if doing this? All fans connected to it will be 4 pin pwm (corsair ML140's) case fans. Thanks
Asked by: sarge2sav
With the device I got if you used a 4 pin fan it only controls the speed of 1 of them via the sensing port, the rest run at 100%. If you used the supplied adapters from 4 pin to 3 pin for the other ports it did change the speed - but not by much.
Answered by: jimjamjihah
Date published: 2017-11-12
