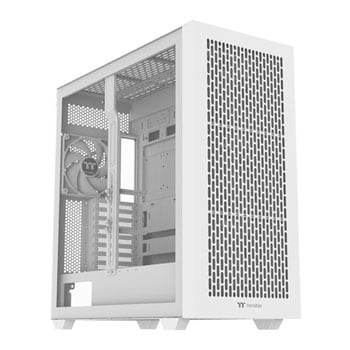

ThermalTake AX500 Snow White Full Tower Tempered Glass PC Case

Thermaltake AX500 Full Tower Chassis

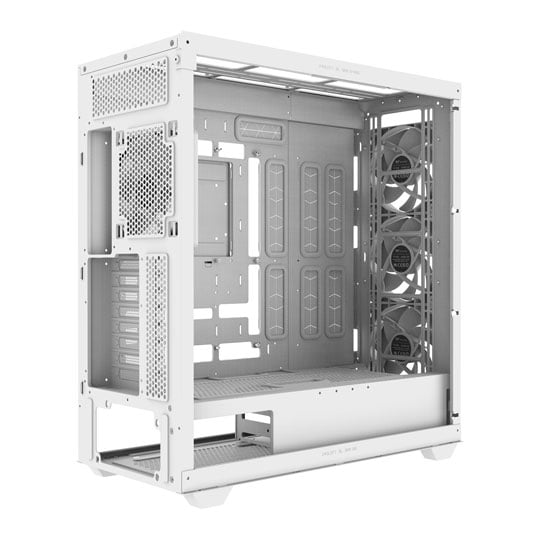

The AX500 Snow is a versatile full-tower case designed to support up to full-size E-ATX or SSI-EEB motherboards (12" x 13"). Its spacious design enhances compatibility with advanced cooling solutions, allowing for the simultaneous installation of two 360mm or 420mm radiators at the front and top. Additional fans can also be mounted next to the motherboard and on the PSU cover, providing optimized airflow. A dedicated graphics card holder prevents VGA sagging, ensuring secure and stable installation. With two drive cages located beneath the PSU cover and its versatile design, the AX500 is ideal for building a high-performance workstation or an ultimate gaming battle station.

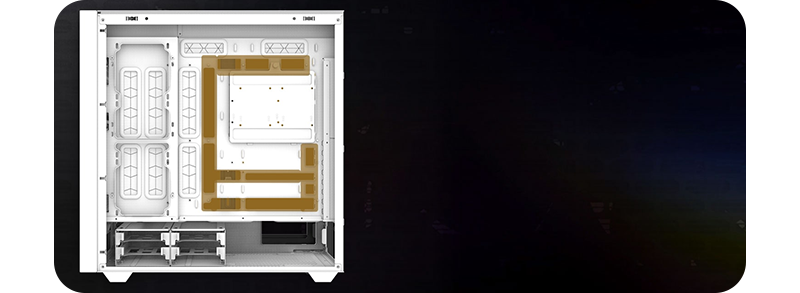

Compatible with Hidden-Connector Motherboards

The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

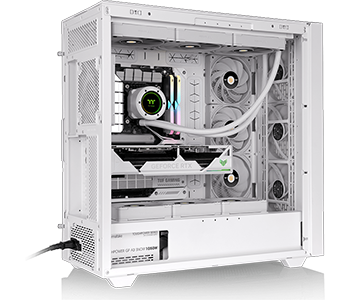

Excellent Radiator Support

Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

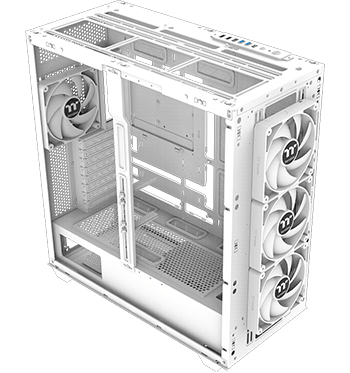

Four 140mm CT140 Fans Pre-installed

Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

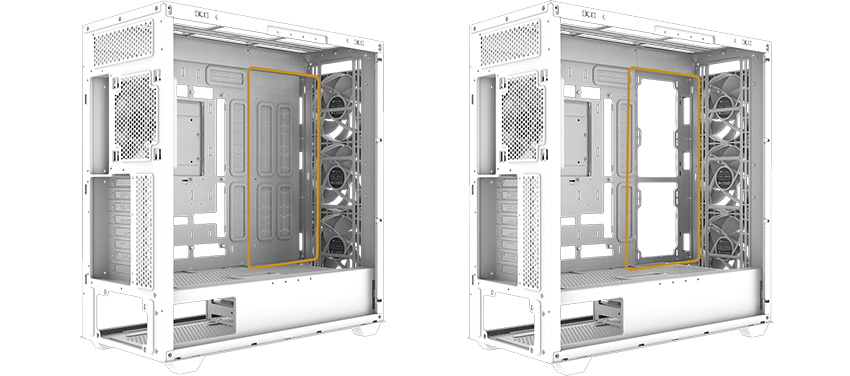

Superior Cooling Support

Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

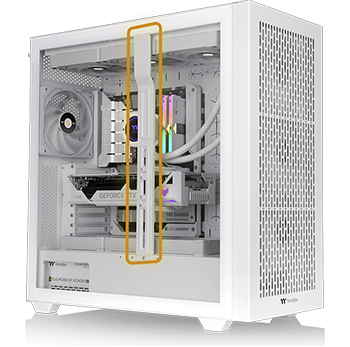

GPU Holder

The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

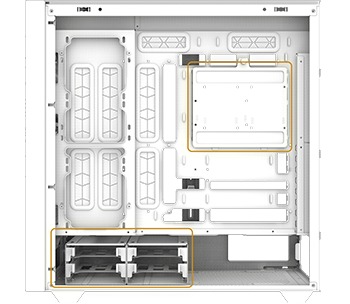

Storage Support

Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.

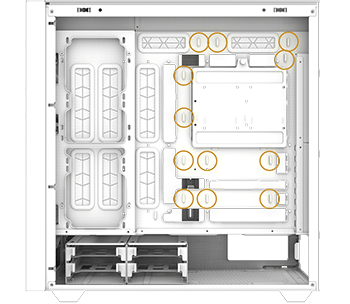

Tidy Cable Management

The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

Superior Hardware Support

The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

Perfect Dust Protection

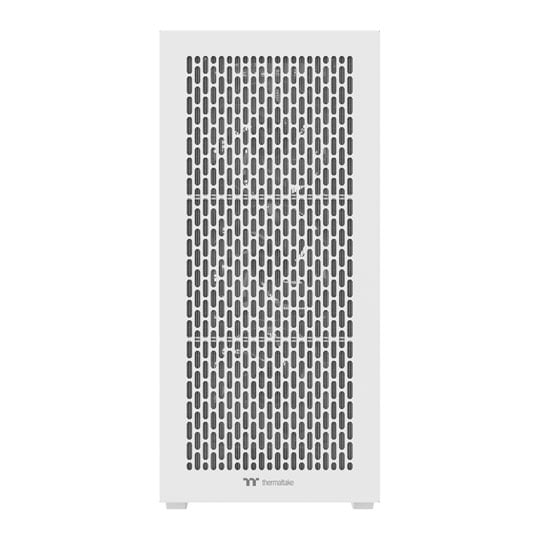

The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

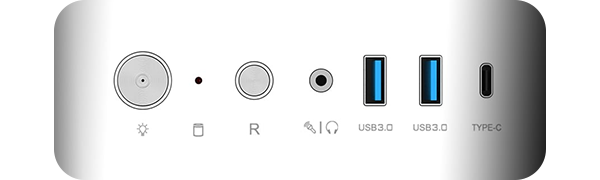

Handy I/O Ports

The top I/O ports include:

1 x USB 3.2 Gen 2 Type-C
2 x USB 3.0 Type-A
HD Audio
Reset Button
HDD LED
Power Button with LED

• Case Type: Full Tower.
• Dimension (H X W X D): 550 x 248 x 548 mm.
• Side panel: Steel + TG.
• Colour: Black.
• Material: SPCC.
• Drive bays: 5 x 3.5” , 1 x 2.5” or 6 x 2.5”.
• Expansion slots: 8.
• Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX), SSI-CEB, SSI-EEB).
• I/O Port: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1.
• Fan support: Front - 4 x 120mm / 3 x 140mm / Top - 3 x 120mm / 3 x 140mm / Right - 3 x 120mm / 2 x 140mm / Rear - 1 x 120mm / 1 x 140mm / PSU cover 3 x 120mm.
• Radiator support: Front - 1 x 420mm, 1 x 360mm, 1 x 280mm, 1 x 240mm, 1 x 140mm, 1 x 120mm / Top - 1 x 420mm, 1 x 360mm, 1 x 280mm, 1 x 240mm, 1 x 140mm, 1 x 120mm / Rear - 1 x 140mm, 1 x 120mm
