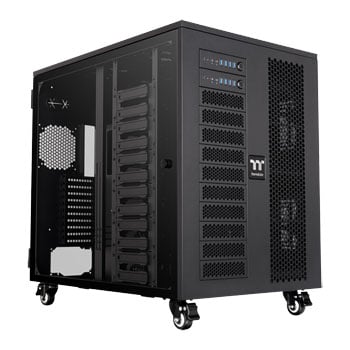

Thermaltake AX1000 TG Black Tempered Glass Super Tower Dual System PC Case

Built for Serious Workstation Power

The AX1000 TG AI Workstation Chassis is built for two complete systems, supporting motherboards up to XL-ATX and SSI-EEB for demanding AI computing, virtualisation and parallel workloads. It accommodates two CPUs, two GPUs and two PSUs, with the stated CPU, GPU and PSU compatibility applying separately to each system. For workstation builders running multiple compute platforms from a single chassis, the ability to house two server-grade SSI-EEB systems makes the AX1000 a formidable foundation for high-density computing.

Expand the Platform

With up to 24 drive bays and extensive mounting space for cooling hardware, the AX1000 has the capacity to grow alongside demanding workstation configurations. It can also be paired with the AX200 pedestal, which can be positioned above, below, or in both locations to create additional space around the main chassis. This is particularly useful when a dual-system build calls for more liquid cooling hardware, additional storage or further expansion beyond what the AX1000 can accommodate on its own.

Cooling on an Enormous Scale

The AX1000 supports up to 29 120mm or 140mm fans, with space for 7 at the front, 8 at the top, 2 at the rear, 4 at the bottom and 8 on the right side. The AX1000 offers extensive radiator support, with space for up to two 420mm AIO radiators at the top, while DIY cooling can go considerably further with support for two 560mm radiators. The front supports 360mm or 280mm radiators, while the rear accommodates up to two 120mm or one 140mm radiator for AIO cooling, or one 120mm or 140mm radiator for DIY setups.

Support for Multiple GPUs

A built-in graphics card holder provides additional support for multiple GPUs, helping to prevent sagging in configurations where several large graphics cards are installed. For compute-heavy systems, this added support is particularly useful when the chassis is populated with the kind of multi-GPU hardware its dual-system architecture is built to accommodate.

Glass, Airflow and Easy Access

The left side features a tempered glass panel for clear visibility of the hardware, while the perforated right side panel provides additional airflow. Both panels use a hinged design, making access to the hardware more convenient when working on a large and densely populated system.

Built to Move

Despite its substantial capacity, the AX1000 can be moved around thanks to a set of castors fitted to the bottom of the chassis. This makes a practical difference for a workstation of this scale, allowing it to be repositioned without having to lift the entire system.

Dust Protection & Front I/O

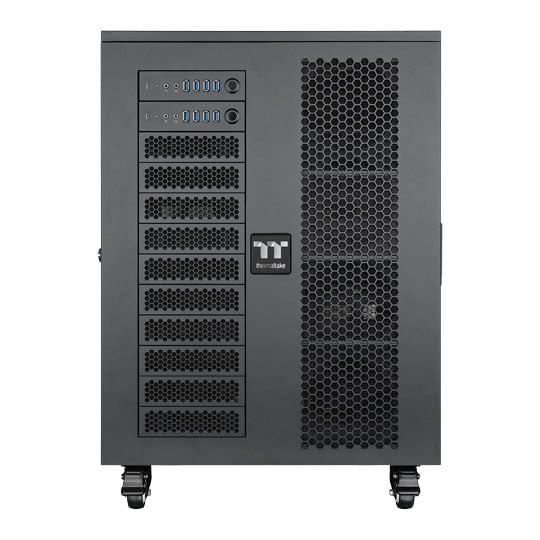

Dust filters are fitted across the front, top, bottom and motherboard sides to help protect the hardware in a chassis with extensive airflow potential. The front I/O provides a Power Button with integrated Power LED, HDD LED, four USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port and HD Audio.

• Dual-System Architecture: Supports two complete systems on each side, supporting virtually every modern motherboard (mITX, mATX, ATX, E-ATX, XL-ATX, SSI-CEB and SSI-EEB), including two CPUs, two GPUs and two PSUs.
• Dual SSI-EEB Support: Houses up to two server-grade SSI-EEB motherboards for AI computing, virtualisation and parallel workloads.
• 24-Drive Capacity: Supports up to 24 drive bays for extensive storage configurations.
• Massive Cooling Capacity: Supports up to 29 × 120mm/140mm fans across the front, top, rear, bottom and right side.
• Dual 560mm DIY Radiators: Supports up to two 560mm DIY radiators at the top, while AIO cooling supports up to two 420mm radiators.
• Expandable with AX200: The AX200 pedestal can be positioned above, below or both sides of the AX1000, adding space for further liquid cooling, storage or system expansion.
• Multi-GPU Support: Built-in GPU holder helps support multiple graphics cards and prevent sagging.
• Tempered Glass & Perforated Panels: Combines a hinged tempered glass left panel for hardware visibility with a perforated right panel for increased airflow.
• Integrated Dust Protection: Dust filters cover the front, top, bottom and motherboard sides to help keep the hardware protected.
• Hinged Side Panels: Both side panels use a hinged design for easier access to the internal hardware.
• Built-In Castors: Bottom-mounted castors make the substantial chassis easier to reposition.
• High-Speed Front I/O: Includes two modules per system, each boasting four USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, HD Audio, Power LED and HDD LED.
