Teradek Bolt 4K Monitor Module 750 RX
Teradek Bolt 4K Monitor Module 750 RX, V-Mount, Wireless Receiver for SmallHD Smart 7 Monitors, HDMI 2.0
Email me when the availability or price changes
Teradek - 'Bolt 4K 750 RX'
(V-Mount)
WIRELESS RECEIVER FOR SMALLHD SMART 7 MONITORSThe Bolt 4K RX Monitor Module is a real time wireless video receiver that supports video signals up to 4Kp30 over at a line-of-sight distance of up to 750ft (228m) with no image latency that integrates directly with the SmallHD Smart 7 Monitor Series. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. This device is cross-compatible with the entire Bolt 4K Family. Featuring a V-Mount Battery Plate for power.
Perfect for SmallHD Smart Monitors

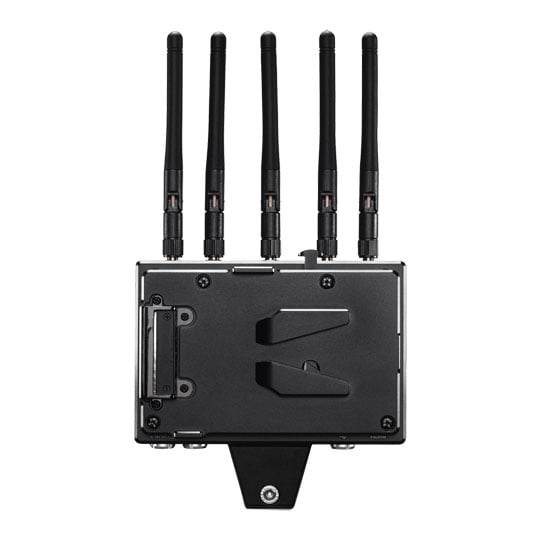

INTEGRATED HARDWARE ADDITION TO SMALLHD SMART 7 TOUCHSCREEN MONITORSThe RX Module easily attaches to the back of Cine 7, 702 Touch, and Indie 7 Smart Monitors. Includes a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.
4K True HDR Video
ZERO-DELAY 4K WIRELESS VIDEOReceive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec). Output: 1x HDMI 2.0 (up to 4Kp30)
TRUE HDRSupports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate colour reproduction
Additional 5GHz Frequency
IMPROVED WIRELESS PERFORMANCEReliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.
Smartphone Control
UNIVERSAL CROSS-COMPATIBILITY BETWEEN ALL BOLT 4K DEVICESReceive signal from any Bolt 4K series TX device for expanding workflow requirements.
CAMERA METADATATransmit metadata, timecode, and start/stop flags from most camera manufacturers.
BOLT APP FOR ANDROID AND APPLE IOSRemotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.
The Tech Spec
| Features | Specification | Video | Up to 4Kp30 |
|---|---|
| Range | 750ft |

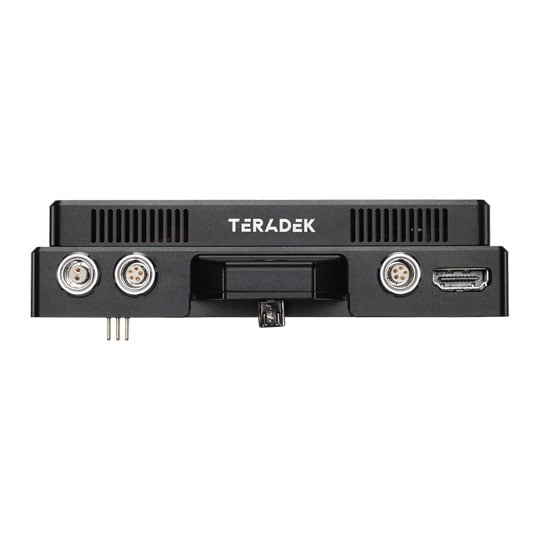

| Outputs | 1x HDMI 2.0 (up to 4Kp30) |
| Compatibility | All Bolt 4K Series TX Devices |
