Portable Synthesiser
Teeneage Engineering - OP-1 Field
louder, thinner and 100 times better.Introducing the all new OP–1 field. Injected with more than a decade of
ideas, refinements and improvements. Just to mention a few: stereo
throughout the whole signal chain, bluetooth midi, usb type-c, a new
speaker system with a passive driver for detailed, fat and loud sound,
a massive 24 hour battery life, multiple tapes and recording formats,
new great sounding reverb and the 'dimension' synth engine, an all
glass, flush, high resolution display.
We also meticulously reworked all
graphics, screen by screen. Did we mention fm broadcasting?
Well, that's just some of the 100 new features.
reworked, refined, rebornThink of OP–1 field as the natural continuation of its predecessor.
Updated with the latest technology, improved design and finely tuned with
professional musicians, recording artists and sound designers in mind.
Higher quality in all aspects, from its circuitry to connectivity and flexibility,
it's tailor made for professionals in the field.
at a glance
• Synthesiser, Sampler, and Controller
• Real-Time Control Modulation
• ADSR Type Envelope
• 8 Built-In Engines
If It Feels Thinner. It Is.
dual 2.4 GHz antenna system insideWe didn't want to alter the original OP–1 too much, because we think we got it more or less right the first time; but by lowering the aluminium body around the keyboard, the new OP–1 field feels lighter, thinner and more precise. With 2k molding we also managed to fit a dual 2.4 GHz antenna system inside the aluminium body.

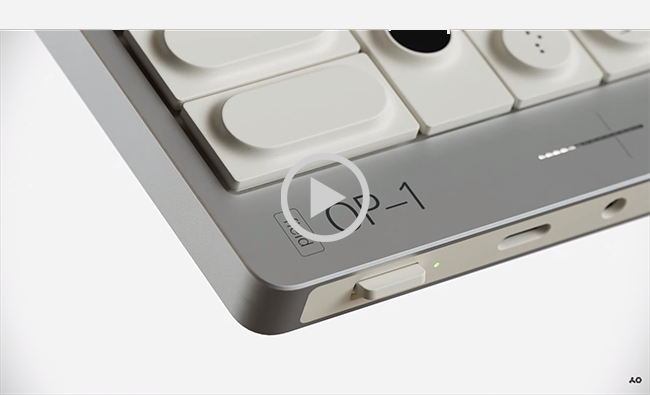

Introducing OP–1
The Tech Spec
| Features | Specification | USB | 2.0 High-Speed (OTG) |
|---|---|
| Line In/Out | 3.5 mm Jack |
| Microphone | Built-In |
| Speaker | Mini: High Output, 8 Ohms, 1 W |
| Motion Sensor | 3-Axis Accelerometer (G-force) Assignable to Any Synth, Envelope, Effect Parameter, or to Pitch |
| Radio | FM Band Support: Worldwide (64 to 108 MHz) |
| Display Type | AMOLED display running in 60 fps |
| Resolution | 320 x 160 |
| Colour Depth | 16.7 Million |
| Contrast | 10,000:1 (Good for Outdoor Use) |
| Viewing Angle | 170° |
| Battery Type | Li-Ion 1800 mAh |
| Battery Life | 16 Hours (Active) 2-Year Standby Time |
| Charging | Via USB Port |
| CPU | 400 MHz Core Processor (800 MMACSS Performance) 64 MB Low-Power SDRAM (12ns) 512 MB NAND Flash Storage 24-Bit 96 kHz ADC/DAC |
| Dimensions | 11.1 x 4.0 x 0.5" (28.2 x 10.2 x 1.3 cm) |
| Package Weight | 1.65 lb |
