Scan code: LN137194 Manufacturer code: Sonicview 24

Tascam Sonicview 24 Digital Mixing Console

Tascam - Sonicview 24 Digital Mixing Console, 3 7" Colour Touchscreens, 44 Input Channels, 32-bit, 96 kHz

Thumbnail 1 : Tascam Sonicview 24 Digital Mixing Console Thumbnail 2 : Tascam Sonicview 24 Digital Mixing Console Thumbnail 3 : Tascam Sonicview 24 Digital Mixing Console Thumbnail 4 : Tascam Sonicview 24 Digital Mixing Console
Scan code: LN137194 Manufacturer code: Sonicview 24
Order now and get it tomorrow, Fri 23rd Feb
£4,800.00
Get it Tomorrow, 23 FebIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £135.34 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £434.87
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £4,800.00
Total inc. interest: £5,218.39
Monthly Payment: £234.38
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £4,800.00
Total inc. interest: £5,624.96
Monthly Payment: £168.09
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £4,800.00
Total inc. interest: £6,050.90
Monthly Payment: £135.34
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £4,800.00
Total inc. interest: £6,496.25
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £127.55 / month (APR 19.9%)
Delivery Options
  • By DPD On 23rd Feb to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Digital Mixing Console
Tascam - Sonicview 24

Tascam Sonicview 24

Digital Mixer with Multi-environment Touch ScreensTASCAM have a long history of creating high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview series, they have created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview mixing consoles integrate seamlessly with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

At A Glance • TASCAM VIEW interface allows for intuitive operation with three different view modes
• 3 7" colour touchscreens offers multiple views at the same time
• 22 flexible output busses plus stereo sum with 31-band graphic EQ
• 32-bit, 96 kHz A/D and D/A conversion
• 44 input channels (40 mono, 2 stereo)

Ultimate Versatility

Tascam Sonicview 24

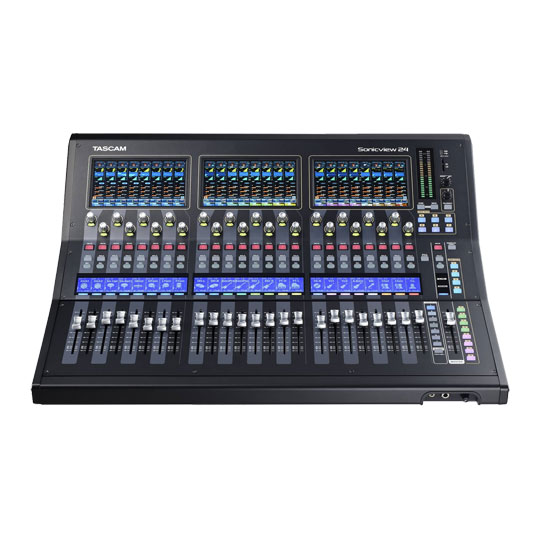

Extensive FeaturesThe TASCAM Sonicview 24 provides a generous 44 input channels (40 mono channels and 2 stereo channels), 22 flex output buses, the L/R main bus and an internal SD/USB stereo audio recorder. Motorised channel faders in three banks of eight, plus a motorised fader for the main stereo bus are also included.

Above each bank of channel faders is a colour touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip. Save fader settings and instantly recall them later to continue where you left off. Check levels in a mix or submix at a glance and adjust them during mixdown with either the physical faders or the touchscreen. Your changes will be instantly updated in both.

TASCAM Sonicview Series - Next-Generation Digital Mixing Console

The Tech Spec

Features Specification

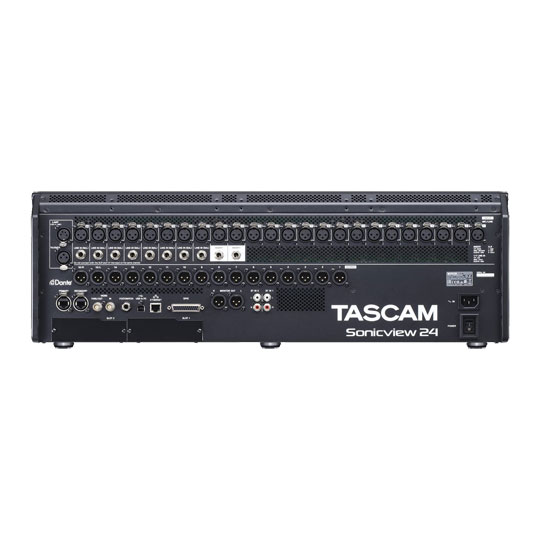

Analogue Inputs 24 Channels (1-24 Balanced XLR, 15+16 Insert 1/4", 17-24 Line In 1/4")
2x Stereo RCA
1x World Clock In
1x Footswitch
1x Talkback Mic (XLR)
1x Lamp (4pin 12v 5W)
Analogue Outputs 2x Main Monitor (XLR)
16x XLR (15+16 Stereo L+R)
1x World Out/Thru
1x Stereo Headphones 1/4" Jack
Digital Inputs/Outputs 1x USB Type B (32 Inputs + 32 Outputs)
Sample Rates: 48kHz, 96kHz
Bit Depth: 32 bit
Dante Primary/secondary: ehterCON Cat5e compatible
Dante Channels: 64 (48kHz), 32 (96kHz)
Operating System for Connected Computers USB Audio interface: 64-bit Windows or Mac compatible computer with a USB 2.0
Remote control: 64-bit Windows or Mac compatible computer with network access or Apple iPad
Storage Media SDHC cards (8–32 GB, Class 10 or better)
SDXC cards (64–128 GB, Class 10 or better)
USB flash drives (8–128 GB, playback only)
File Systems SDHC card, USB storage: FAT32
SDXC card, USB storage: exFAT
Recording/Playback Formats WAV/BWF: Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels
MP3 Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s
AAC Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s
Power Supply and Other Specifications Main displays: 3 7-inch (17,8 cm) colour touchscreens, 800 × 480 px
Channel displays: 3x monochrome LC displays, 384 × 68 px
Mains power: AC 100–240 V, 50/60 Hz
Power consumption: 65 W
Permissible Operating Temperature Range 0–40 °C
Dimensions (width × height × depth) 691mm × 228mm × 554mm
Weight 18 kg
Specifications
Total Channels 44
Max Mic Inputs 24
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 0
Subgroup Ous 0
Max Line Inputs 8
Analogue Insert Points No
Internal FX Yes
Flying Faders Yes
Additional Information
Scan Code LN137194
Model Number Sonicview 24
GTIN 4907034132898
