Scan code: LN72628 Manufacturer code: US-32

MiNiSTUDIO Personal US-32 by TASCAM

TASCAM MiNiSTUDIO Personal US-32 USB Audio Interface - Complete All-in-one Podcast Solution

Thumbnail 1 : MiNiSTUDIO Personal US-32 by TASCAM Thumbnail 2 : MiNiSTUDIO Personal US-32 by TASCAM MiNiSTUDIO Personal US-32 by TASCAM : video thumbnail 1
Scan code: LN72628 Manufacturer code: US-32
£89.00Item due on 15 June 2020
Due 15th Jun
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Turn Online into SHOWTIME!

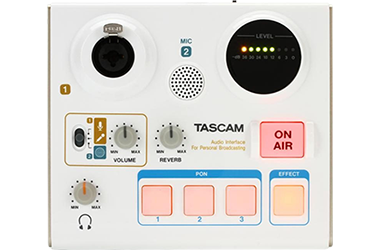

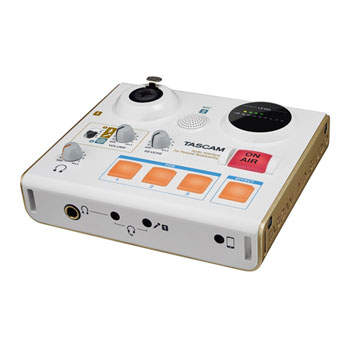

The TASCAM MiNiSTUDIO Personal US-32 is your complete, desktop online broadcast studio. Featuring a professional quality audio interface and a number of unique real-time effects, the MINISTUDIO Personal delivers everything you need to set the Internet on fire.

You talkin' to me?
At the heart of every Podcast and online broadcast lies the desire to communicate. And more often than not, this communication takes the form of the human voice...and TASCAM knows a thing or two about recording the human voice. Central to the MiNiSTUDIO Personal is an XLR/combo mic/line connector and a professional quality micropone preamp. Built-in phantom power allows you to quickly and easily connect your favorite dynamic or conderser microphone...or not... For the ultimate in plug and play convenience, the MiNiSTUDIO Personal features a built-in microphone, so you're ready to talk the talk right out of the box. Simply press the ON AIR button and go to town. And to top it all off, the MiNiSTUDIO Personal features a 4-band parametric EQ, adjustable on-board compression and a digital reverb effect with a convenient front panel depth control.

Have an effect

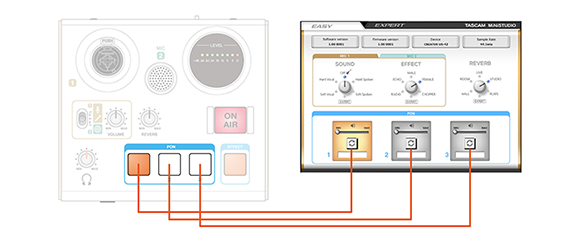

Designed to bring an extra dimension to your podcasts and live streaming, the TASCAM MiNiSTUDIO features three assignable PON sound effect buttons. Use the included bell, buzzer and applause effects or apply your own .wav or .mp3 files for a completely customized experience. You can also set each velocity sensitive PON button to act as a one-shot sound effect, to only play while you press or to loop as long as you hold the button down. Why should the morning DJ's have all the fun?

Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42

Find your voice

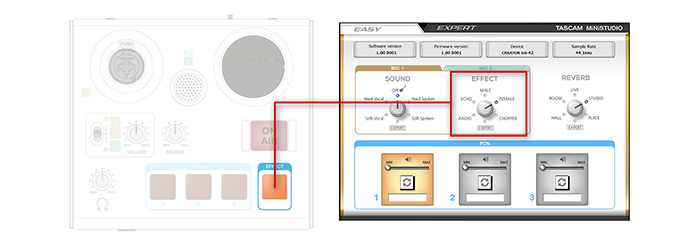

Diguise your voice, fool your fans! Perhaps the most extreme feature of the MiNiSTUDIO Personal is the Voice Effects option. Simply pressing this innocent little button will instantly transform your voice in any one of a number of amazing and amusing ways. Pitch your voice up into cartoon mouse territory or pitch it down like you've joined the Dark Side. Add a spacey Echo, wobbly Chopper or go old school with the Walki-talkie-approved Radio effect. Voice Effects: crazy, wacky and a whole lot of fun.

Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42

Become an Expert
In addition to the default Easy mode of the TASCAM MiNiSTUDIO software panel is an Expert mode that can be accessed by selecting the tab along the top of the window. This exposes a more comprehensive set of controls that enable you to fine tune EQ, compression and reverb settings as well as customize the behavior of the PON sound effect buttons and the various Voice Effect options. Don't be fooled by the friendly face of the MiNiSTUDIO - underneath the shiny exterior lies a truly professional tool that proudly carries the TASCAM name.

Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42

Your audience hears what you hear
You talk. You play music. You play games. You fire off PON sound effects and bathe your voice in the mysterious fog of a reverberant hallway. In short, you create an immersive soundscape that you want to share with your listeners. To make this dream a reality, the MiNiSTUDIO Personal US-32 supports TASCAM's unique Broadcast architecture that seamlessley mixes your voice and effects with any and all audio produced by your PC or Laptop.

More information can be found in the PDF below:
Data Sheet Features Specifications

• Sampling Frequency: 44.1k/48k/88.2k/96kHz
• Quantization Bit Rate: 16/24bit

Analog Audio Inputs
• Mic In: Mic In 1
• Connector: CLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced
• Input Impedance: 2.4k ohms
• Maximum Input Level: +7.7dBV (2.427Vrms)
• Gain: 45dB


MIC IN (Plug-in Power)
• 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”) mini jack
• Input Impedance: 5k ohms or more
• Gain: 45dB

• 3.5mm(1/8”) stereo mini jack
• Input Impedance: 5k ohms or more
• Maximum Input Leve:l +7.7dBV (2.427Vrms)

• Omnidirectional Condenser Mic

Analog Audio Outs

Line Out

• Connector: 1/4” Stereo Phone-jack/ 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”)Stereo mini jack
• Maximum Output Level: 15mW+15mW above (Less than THD+NO.1%,32Ohms loaded)

Control Input/Output
• USB: USB B-type 4-pin
• Format: USB2.0 High Speed (480MHz)
• DC In 5V: USB Micro B type

Audio Performance
Frequency response - (To PHONE OUT)
• 44.1k/48kHz 20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA)
• 88.2k/96kHz 20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA)
• EIN Less than -113dBu (150 ohm terminated, volume max)
• THD+N Less than 0.008%/
• S/N ratio 90dB or more (MIC IN to PHONE OUT, volume min, JEITA)
•Crosstalk 95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA)

Computer System Requirements

• Compatible computers: Windows-compatible computer with a USB 2.0 port
• CPU type/speed: Dual core/2 GHz or faster (x86)
• Memory: 2GB or more

• OS For information of the latest OS version, please click here.
• Compatible computers Apple MacOS computer with a USB 2.0 port
• CPU type/speed Dual core/2 GHz or faster
• Memory 2GB or more
• DRIVER Core Audio

• OS iOS 7 or later

• Power (when connected to PC) USB bus-power
• Power (when connected to an iOS device) USB power adapter, External battery pack, TASCAM BP-6AA
• Power consumption 1W
• Dimensions 5.9" W ×1.57" H ×5.11" D (150mm W x 40mm H x 130mm D)
• Weight 0.84lb (382g) 1.10lb (500g)
• Operating temperature 41 to 95°F (5 to 35°C)
• Bundled Accessories USB cable, Users manual, warranty card
Computer Interface Type USB 2
Analogue Inputs (Total) 1
Analogue Outputs (Total) 1
Connections (Input)
  • 1 x 3.5mm (1/8") Jack
  • 1 x USB
  • 1 x USB Type B
  • 1 x XLR / Jack Combo
Mic Preamps (Max) 1
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 96 kHz
Bit Resolution 24
iPad Compatible Yes
Dynamic Range n/a dB
Connections (Output)
  • 1 x 1/4" / 1/8" Headphones
  • 1 x 3.5mm (1/8") Jack
Dimensions (mm) 150x40x130 WxHxD
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN72628
Model Number US-32
GTIN 4907034125838
