Hardware Room Correction & DSP Speaker Processor

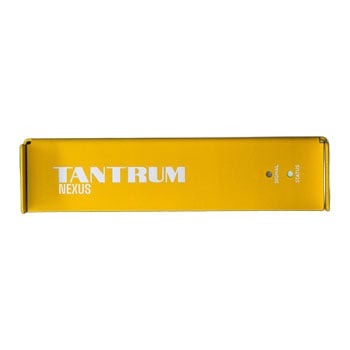

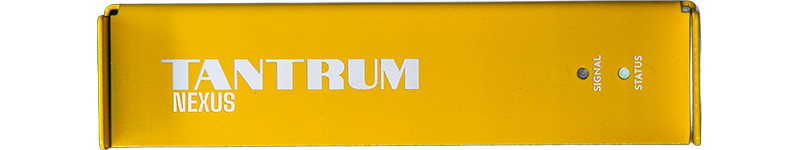

Tantrum Audio - Nexus
Room Correction, Done In Hardware.Most room correction boxes force an extra AD/DA step. NEXUS has USB audio and S/PDIF, so your chain stays digital. Plus the analog inputs take +20dBu before they flinch, and there's a stereo aux for whatever else turns up. Mixes that translate, on speakers you already own. It matches your speakers perfectly, making the best of the space you already have, which is why it doesn't sound like room correction, just good sound engineering.

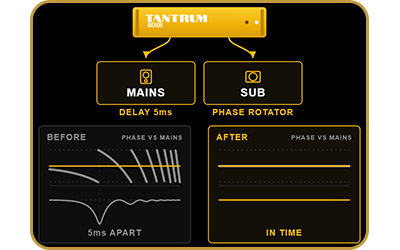

Your speakers don't all arrive together, and where they overlap, late sound cancels. That's the kick that never lands, and the bass that sounds right in the studio and falls apart in the car. NEXUS targets phase slope alignment, not just impulse. Once everything is in time, things make a lot more sense. Switch between your mains and your reference speaker. Mute the sub. Control the volume. Recall a preset. Bypass the correction. Customise control from any OSC or MIDI device.
Track through it. Monitor live. Punch in. 0.85ms of latency, analog in to analog out. 1/100th of the time it takes you to blink. 0.0013% distortion: whatever the box adds sits about 98dB below the music. Noise floor 120dB down, sample rates up to 96kHz.
0.85msProcessing latency
120dBNoise floor
0.0013%THD
96kHzMax sample rate

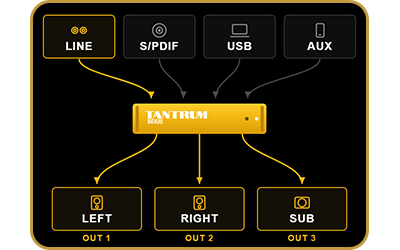

The Centre Of Your Setup
source switching

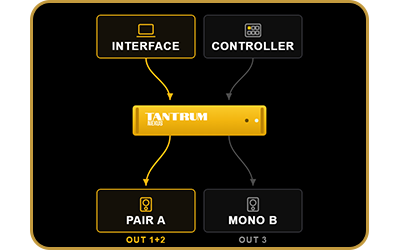

A/B monitoring
time alignment

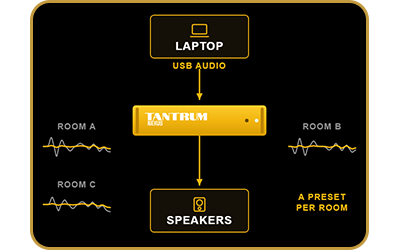

travel rig

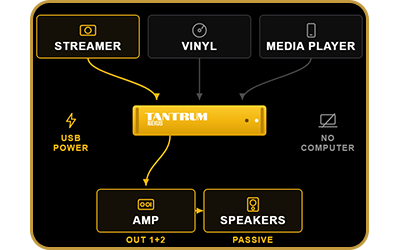

standalone hi-fi
Room Correction Shouldn’t Require A PhD.

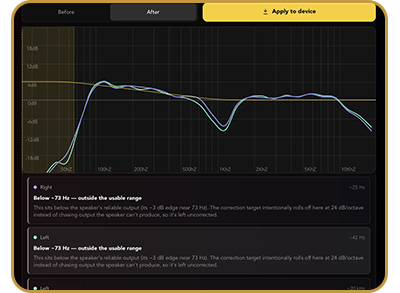

Auto EQPlug in a measurement mic, follow the guided measurement, done. Omnissiah measures your speakers from the seat, then its optimiser tries thousands of corrections and keeps the best one. Toggle before and after to hear exactly what changed, then write the result into the box.
It Doesn’t Just Correct. It Tells You Why.
Room DiagnosticsSome room problems are physics: deep modal nulls, strong reflections. Most room correction hides that behind a black box, so a curve appears and you hope it’s right.
Omnissiah gives you a diagnostic card for every channel in plain language: which dips and peaks it fixed, which it deliberately left alone, and why. So you know what the box is doing before you trust your mixes to it.
You Can Start Tonight.
Omnissiah NativeThe software half of this box ships today. Omnissiah is measuring rooms and correcting speakers on macOS right now, and this hardware is where the result will live. Run it on your current setup while you wait for the box.

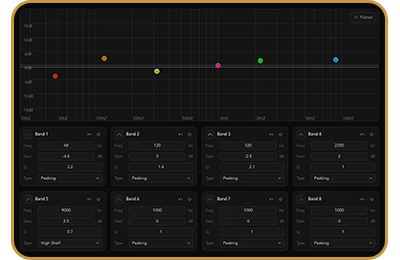

Manual Tuning Toolkit For Experts

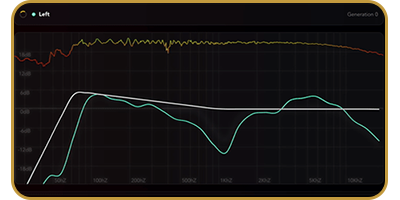

The AnalyserDual-channel transfer function off pink noise. Magnitude, phase and coherence, live.

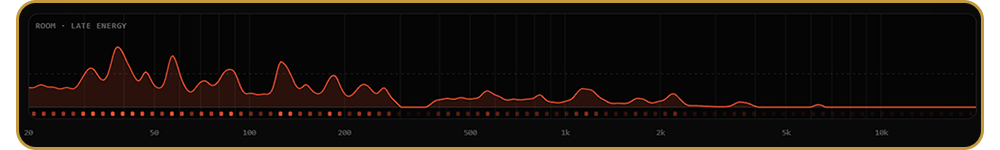

The Room Energy PlotDirect to reverberant against frequency. It tells you whether that dip is the speaker or the room arriving late.
Phase, And The TunerEvery snapshot becomes a needle on a dial. Dial in delay and watch them converge.

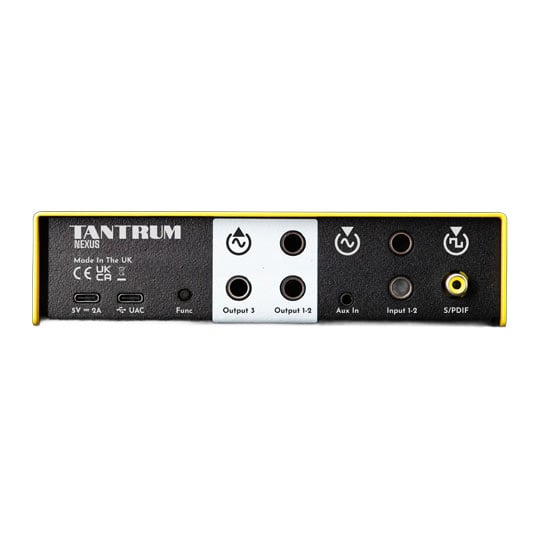

Specifications
• 2 analogue inputs, +20dBu
• USB audio: 2 channels playback
• USB-C control & audio · USB-C power
• Crossover, time alignment & all-pass filters
• Stereo aux input for phones & external players
• 2 analogue outputs, +18dBu
• 1U tall, 140mm x 100mm
• Macros & remote control over MIDI + OSC
• S/PDIF input (2 channels)
• Subwoofer / mono / utility output, +18dBu
• 15 filters per output
• Configured by Omnissiah, runs standalone
