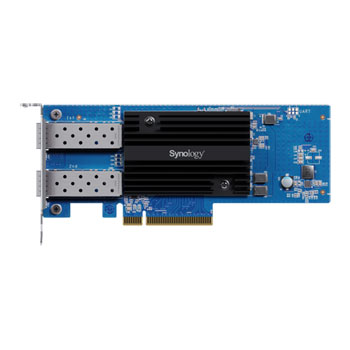

Synology E25G30-F2 Dual-Port PCIe Gen3 x8 Expansion Card
Synology E25G30-F2 Dual-Port PCIe Gen3, SFP28, SR/LR/DAC Alternative Support, 25GbE, Full Duplex, SR-IOV
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £10.63 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Seamless Integration to Modern Enterprise Networks
Expand your connectivity options with the E25G30-F2 adapter, which supports both short and long range transceivers, along with other DAC alternatives. The two 25GbE SFP28 ports effectively eliminate network bandwidth limitations, while backwards compatibility with 10GbE SFP+ equipment reduces cost. Benefit from a performance boost with CPU offloading technologies that minimise network transfer overhead on the host system's processor.
Hardware Specifications
With a PCIe 3.0 x8 interface, it offers flexible connectivity options, supporting both low-profile and full-height brackets. Operating within a temperature range of 0°C to 40°C (32°F to 104°F) and a humidity range of 8% to 80% RH, this card ensures reliable performance in various environments.
Network Specifications
The E25G30 card supports both 10 Gbps and 25 Gbps Ethernet, features IEEE 802.3ad Link Aggregation for enhanced throughput, and operates in full duplex mode. Additionally, it offers advanced features such as Jumbo Frame support (1.5 - 9KB), TCP/UDP Checksum Offloading, Large Receive Offload (LRO), Generic Segmentation Offload (GSO), TCP Segmentation Offload (TSO), Receive Side Scaling (RSS), and Transmit Side Scaling (TSS). For virtualization, it includes SR-IOV capabilities, which reduce latency and CPU overload.
Features
• High Bandwidth: Two 25GbE ports support high-performance storage applications.
• Flexibility: Supports SR and LR transceivers, as well as DAC options too.
• Link Aggregation Support: Enables higher simultaneous throughput, port failover and load balancing.
• Built for Synology: Purpose-built with Synology systems.
