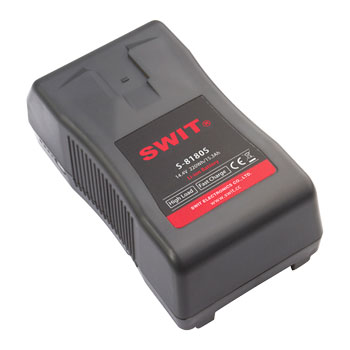

SWIT S-8180S 220Wh High Load V-Mount Battery Pack

SWIT S-8180S 220Wh High Load V-Mount Battery Pack, 14.4V, 220Wh, D-Tap Output, V-Mount Connection

Thumbnail 1 : SWIT S-8180S 220Wh High Load V-Mount Battery Pack Thumbnail 2 : SWIT S-8180S 220Wh High Load V-Mount Battery Pack Thumbnail 3 : SWIT S-8180S 220Wh High Load V-Mount Battery Pack Thumbnail 4 : SWIT S-8180S 220Wh High Load V-Mount Battery Pack
Scan code: LN128579 Manufacturer code: S-8180S
£388.99Item currently awaiting an ETA
Pre order
From £19.00 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £35.25
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £388.99
Total inc. interest: £422.88
Monthly Payment: £19.00
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £388.99
Total inc. interest: £455.80
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.34 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

SWIT - 'S-8180S 220Wh High Load V-Mount Battery Pack'

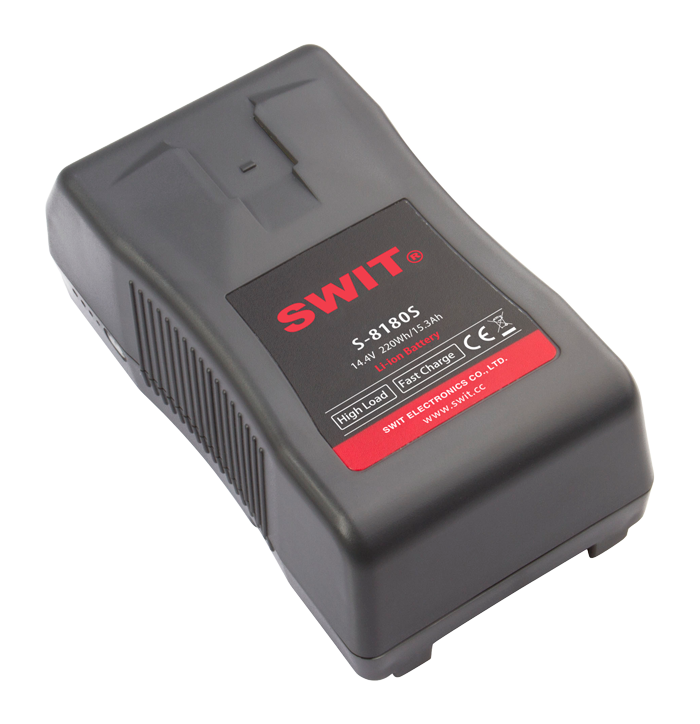

S-8180S 220Wh High Load V-mount Battery Pack

high load power solutionIntroducing the SWIT S-8180S 220Wh High Load V-mount Battery Pack, a high-end power solution for demanding productions. Equipped with high-load Li-ion cells, this battery pack is capable of handling a constant load of at least 200W and 16A, making it ideal for power-hungry equipment. With a capacity of 220Wh and a 14.4V output, the S-8180S ensures long-lasting power to keep you shooting all day long. Featuring a D-tap output socket, a 4-level LED power indicator, and a V-mount connection, this battery pack provides ultimate convenience and versatility. Additionally, it comes with multiple circuit protections, ensuring safe and reliable operation at all times.

High-Load Li-ion Cells

S-8180S 220Wh High Load V-mount Battery Pack

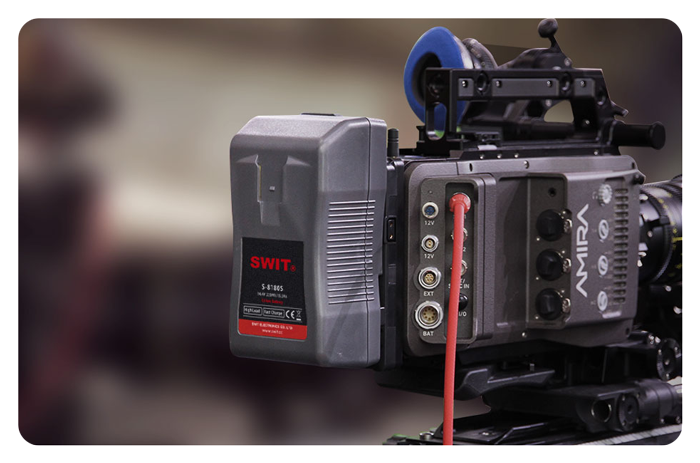

At least 200W, 16A constant power outputNormal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.

Using S-8180S high-load battery, you can get at least 200W/16A constant power output, which can drive more high power cameras, lightings and other equipment’s easily, and won’t reduce battery life during long time high power output.

220Wh/15.3Ah High Capacity

S-8180S 220Wh High Load V-mount Battery Pack

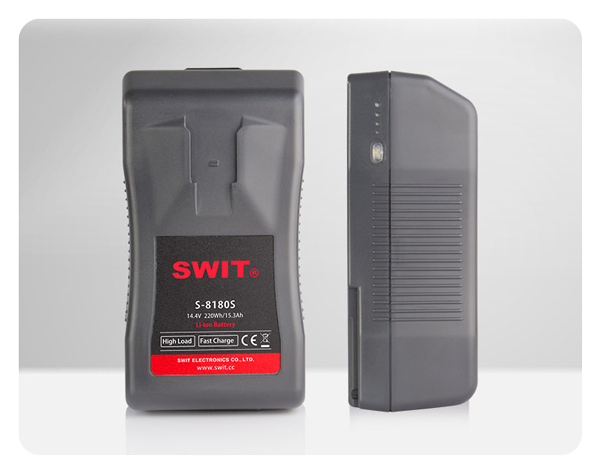

Approx 7 Hours RuntimeConsists of 24pcs 18650 battery cells, and reach 220Wh/15.3Ah high capacity. Can run approx 7 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera

Reliable V-mount Connection

S-8180S 220Wh High Load V-mount Battery Pack

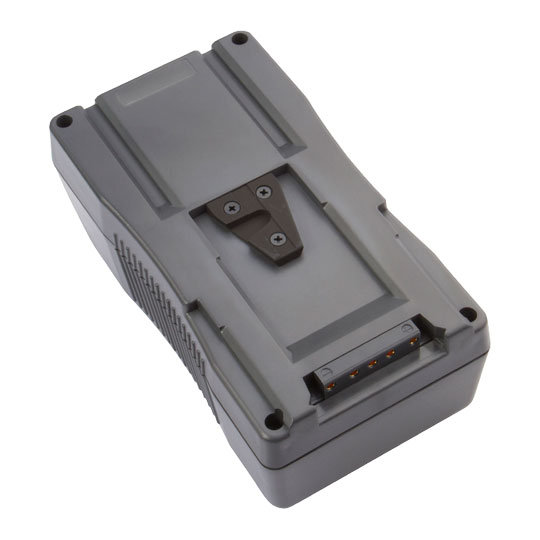

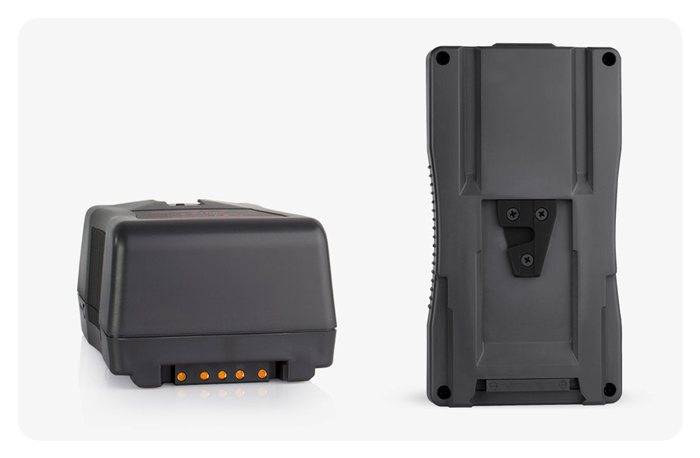

Standard V-Mount ConnectionS-8180S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

Built-in D-tap DC Output Socket

S-8180S 220Wh High Load V-mount Battery Pack

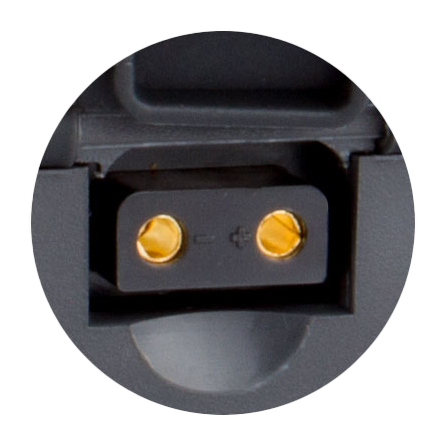

D-tap DC output socketA D-tap DC output socket is equipped on the top side of S-8180S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 120W, 10A.

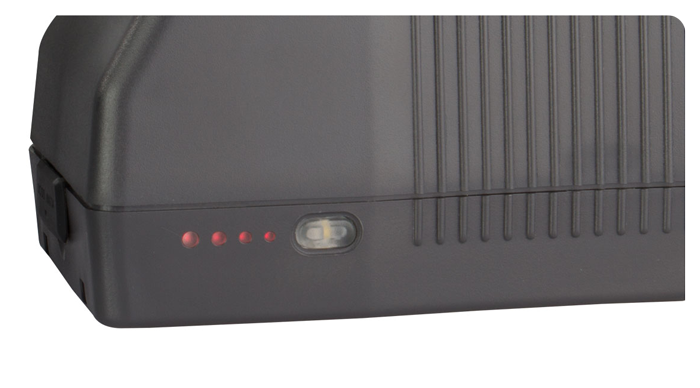

4-Level LED Power Indicator

S-8180S 220Wh High Load V-mount Battery Pack

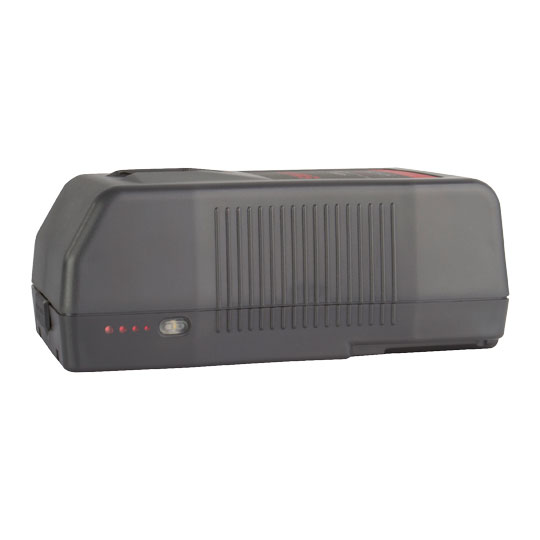

4-level power indicatorsOn the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
