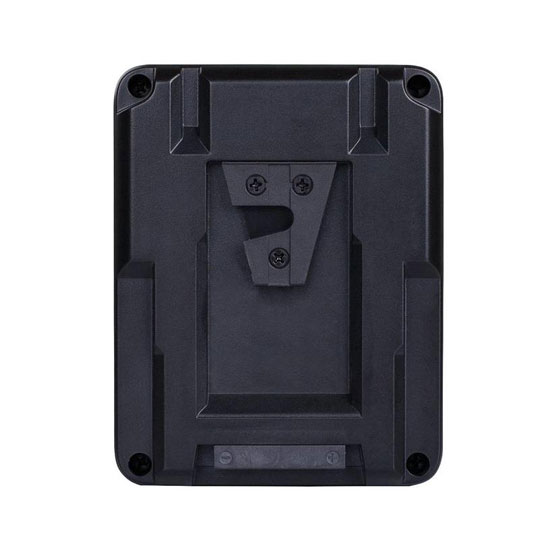

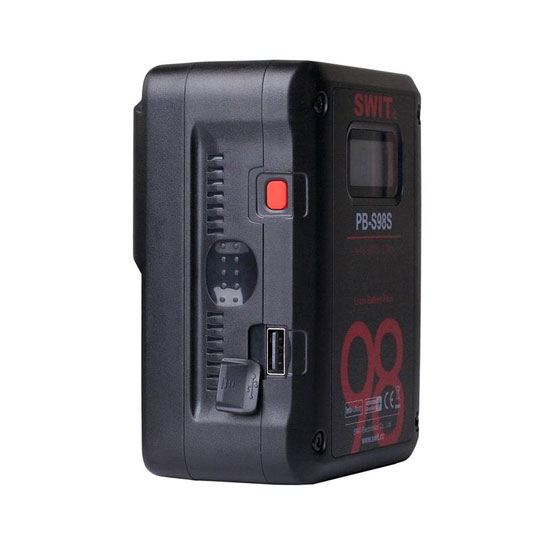

SWIT PB-S98S 98Wh Square Digital Battery - V-Lock
Scan code: LN96370
Manufacturer code: PB-S98S
£217.99Item currently awaiting an ETA
Pre order
SWIT PB-S98S 98Wh Square Digital Battery - V-Lock
SWIT V-Lock 98Wh 3 Hour Run Time Square Digital Battery PB-S98S
Scan code:
LN96370
Manufacturer code:
PB-S98S
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with the majority of Cine-cameras.
98Wh / 6.8Ah Capacity
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity.
Can run approx 3 hours for normal ENG cameras.
Multiple output sockets design
2× D-tap output sockets,
1× USB 5V/2A power output socket
PB-S98S is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together.
The Max output current of D-tap is 8A, 100W.
PB-S98S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.
Digital Power Info
LCD display accurate remaining run time
The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
LCD alarm code description
P01~P13: The battery trigger protection function and it can be recovered;
When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display.
E01~E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery. Features • Square shape design for Cine-cameras
• Max 100W, 8A load
• 2× D-tap output sockets (Max 100W/8A in total)
• 1× USB 5V/2A power output sockets
• LCD display accurate remaining run time
• Display power info in both SONY & RED
• Multiple circuit protections
98Wh / 6.8Ah Capacity
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity.
Can run approx 3 hours for normal ENG cameras.
Multiple output sockets design
2× D-tap output sockets,
1× USB 5V/2A power output socket
PB-S98S is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together.
The Max output current of D-tap is 8A, 100W.
PB-S98S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.
Digital Power Info
LCD display accurate remaining run time
The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.
LCD alarm code description
P01~P13: The battery trigger protection function and it can be recovered;
When the battery rests over 10 days or runs out of power,it will enter sleep mode and the LCD will not display.
E01~E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery. Features • Square shape design for Cine-cameras
• Max 100W, 8A load
• 2× D-tap output sockets (Max 100W/8A in total)
• 1× USB 5V/2A power output sockets
• LCD display accurate remaining run time
• Display power info in both SONY & RED
• Multiple circuit protections
