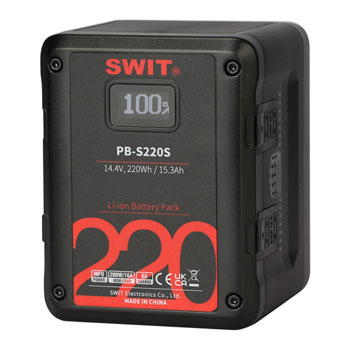

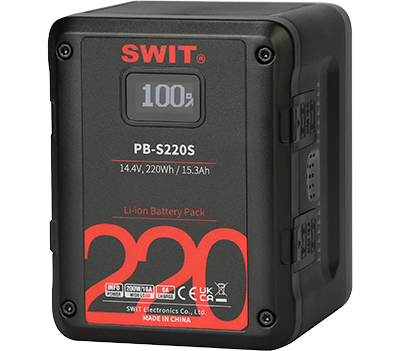

SWIT PB-S220S Multi-Socket Square V-Mount Battery
SWIT PB-S220S Square Digital V-Mount Battery, 220Wh/15.3Ah, 4x D-Tap. 1x USB 5V 2A, OLED Display
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £10.97 / month (APR 19.9%)
SWIT - 'PB-S220S Square V-Mount Battery'
Square design for Cine-CamerasPB-S series camera batteries are compact designed, shorter than normal V/Gold Mount batteries and match perfectly with most Cine-Camera, whilst still having a 7 hour runtime (ENG Cameras) with a 220WH capacity.
7 Hour Runtime
220Wh | 15.3Ah CapacityConsisting of 24 high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh/15.3Ah high capacity. With an approximate 7hour runtime for normal ENG cameras and approximately 2.5hours runtime for ARRI ALEXA.

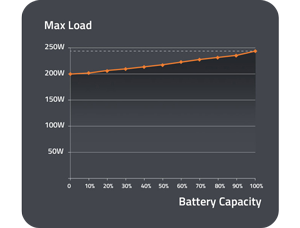

High Load Performance
High Load for Cine CamerasPB-S220 provides at least 200W/16A high load even at 1% capacity, to drive high power Cinema Cameras and on-camera devices together. The high load cells will also ensure battery life comparer to normal load batteries if used at full load output for extended periods of time.

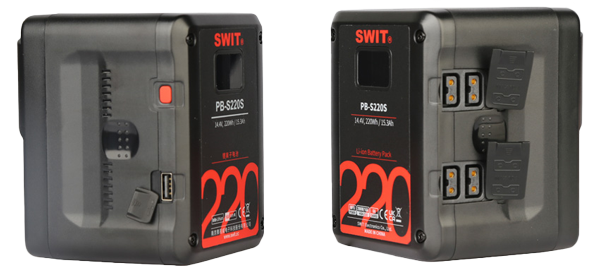

4 D-Tap Outputs

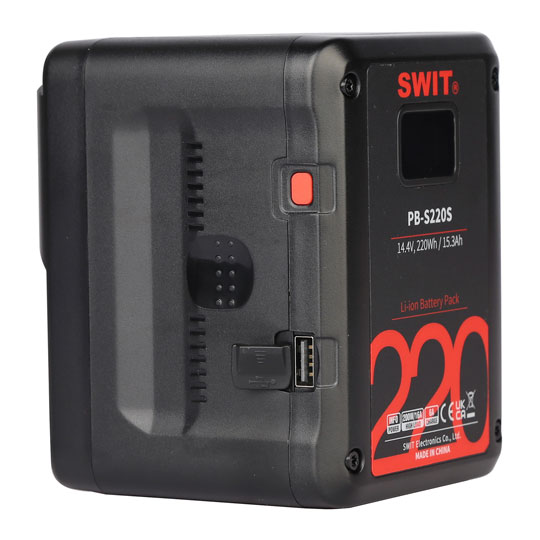

4x D-Tap, 1x USBPB-S220S provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
Fast Charging Support
6A Fast ChargingPB-S220S supports 6A fast charging with the SWIT PC-P461S or S-3812S fast chargers, to save more than 50% charging time. The 220Wh PB-S220S battery can be charged from 0 to 80% in 2.3 hours, and fully charged in 3.5 hours.

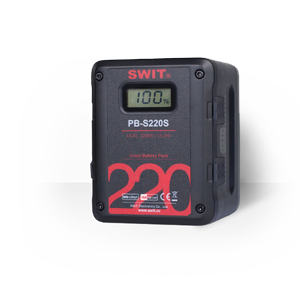

Built-in OLED Display
Digital Power InfoThe built-in OLED can display remaining power percentage, remaining working time, battery cycle times, and support viewfinder info display on both SONY and RED cameras.
Display power percentage when batery is free or during charging. Lightning icon is displayed during charging.
Display remaining running time when the battery is powering on camera or any devices. Press power check button can switch to power percentage display.
If the working time is less than ten hours, it will display 0-9:59; if the working time is more than 10 hours, it will display remaining working hours.
Long press power check button for 5 seconds, it will display battery cycle times.
Battery Protection Display
Digital Power InfoWhen any over load, over charging, short circuit, high/low temperature is detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Over heating protection, please remove the battery and place at room temperature to recover.
Low temperature protection, please remove the battery and place at room temperature to recover.
1. Over charging protection
2. Over load protection
3. Short circuit protection
Please remove the battery, check pin status, and the battery will recover automatically after 30 seconds.
E01/E02/E03: Not recoverable error, please contact manufacturer to repair, do not disassemble the battery yourself.
