Scan code: LN128582 Manufacturer code: PB-S146S

SWIT PB-S146S Multi-Socket Square V-Mount Battery

SWIT PB-S146S Square Digital V-Mount Battery, 146Wh/10.1Ah, 2x D-Tap, 1x USB 5V/2A, OLED Display

Thumbnail 1 : SWIT PB-S146S Multi-Socket Square V-Mount Battery Thumbnail 2 : SWIT PB-S146S Multi-Socket Square V-Mount Battery Thumbnail 3 : SWIT PB-S146S Multi-Socket Square V-Mount Battery Thumbnail 4 : SWIT PB-S146S Multi-Socket Square V-Mount Battery
Scan code: LN128582 Manufacturer code: PB-S146S
£296.99Item currently awaiting an ETA
Pre order
From £14.51 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £26.91
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £296.99
Total inc. interest: £322.86
Monthly Payment: £14.51
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £296.99
Total inc. interest: £348.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.89 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

SWIT - 'PB-S146s Square V-Mount Battery'

SWIT PB-S146S Square Cine V-Mount Battery

Multi-socket Square Digital BatteryThe SWIT PB-S series batteries are designed to perfectly match Cine-cameras with their compact, shorter square design whilst still providing you with adequate capacity to keep shooting for hours. With 145Wh/10.1Ah high capacity and a nominal voltage of 14.4V the PB-S146S can a 30W camera for up to 5 hours thanks to its high class 18650 battery cell construction.

200W/16A High Load

SWIT PB-S146S Square Cine V-Mount Battery

High Load for Cine CamerasPB-S146S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A.

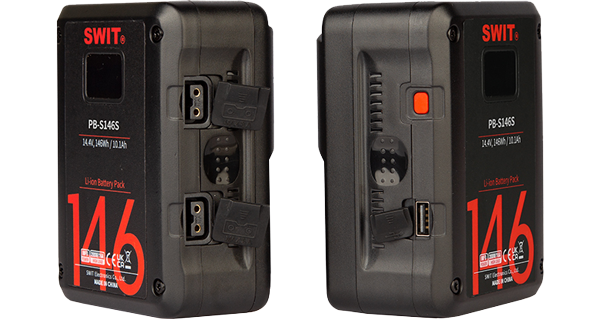

Multiple Output Sockets

SWIT PB-S146S Square Cine V-Mount Battery

2× D-tap, 1× USBPB-S146S provides 2x D-tap output sockets with 10A/120W load and 1x USB 5V/2A socket, to power other on-camera devices together.

Built-in OLED Display

Digital Power InfoThe build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times

SWIT PB-S146S Square Cine V-Mount Battery

Display power percentage when batery is free or during charging. Lightning icon is displayed during charging.

SWIT PB-S146S Square Cine V-Mount Battery

Display remaining running time when the battery is powering on camera or any devices. Press power check button can switch to power percentage display.

SWIT PB-S146S Square Cine V-Mount Battery

If the working time is less than ten hours, it will display 0-9:59; if the working time is more than 10 hours, it will display remaining working hours.

SWIT PB-S146S Square Cine V-Mount Battery

Long press power check button for 5 seconds, it will display battery cycle times.

Battery Protection Display

Protection DisplayWhen any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.

SWIT PB-S146S Square Cine V-Mount Battery

Over heating protection, please remove the battery and place at room temperature to recover.

SWIT PB-S146S Square Cine V-Mount Battery

Low temperature protection, please remove the battery and place at room temperature to recover.

SWIT PB-S146S Square Cine V-Mount Battery

1. Over charging protection
2. Over load protection
3. Short circuit protection
Please remove the battery, check pin status, and the battery will recover automatically after 30 seconds.

SWIT PB-S146S Square Cine V-Mount Battery

E01/E02/E03: Not recoverable error, please contact manufacturer to repair, do not disassemble the battery yourself.
