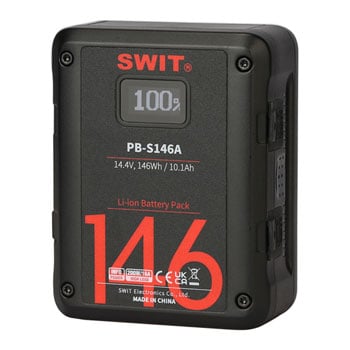

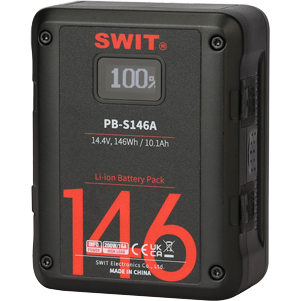

SWIT PB-S146A Multi-Socket Square Gold Mount Battery
SWIT PB-S146A Square Digital Gold Mount Battery, 146Wh/10.1Ah, 2x D-Tap, 1x USB 5V/2A, OLED Display
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £7.89 / month (APR 19.9%)
SWIT - 'PB-S146A Square Gold Mount Battery'
Multi-socket Square Digital BatteryThe SWIT PB-S series batteries are designed to perfectly match Cine-cameras with their compact, shorter square design whilst still providing you with adequate capacity to keep shooting for hours. With 145Wh/10.1Ah high capacity and a nominal voltage of 14.4V the PB-S146A can a 30W camera for up to 5 hours thanks to its high class 18650 battery cell construction.

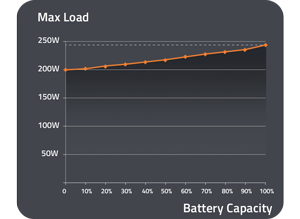

200W/16A High Load
High Load for Cine CamerasPB-S146A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A.

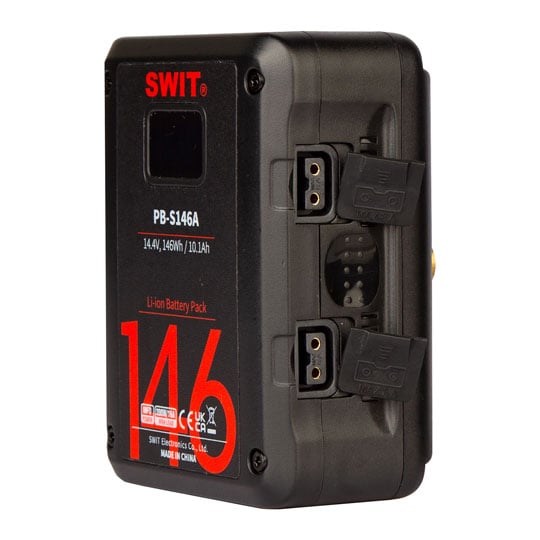

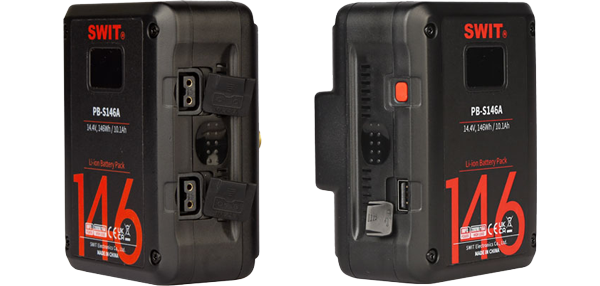

Multiple Output Sockets
2× D-tap, 1× USBPB-S146A provides 2x D-tap output sockets with 10A/120W load and 1x USB 5V/2A socket, to power other on-camera devices together.
Built-in OLED Display
Digital Power InfoThe build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times
Display power percentage when batery is free or during charging. Lightning icon is displayed during charging.
Display remaining running time when the battery is powering on camera or any devices. Press power check button can switch to power percentage display.
If the working time is less than ten hours, it will display 0-9:59; if the working time is more than 10 hours, it will display remaining working hours.
Long press power check button for 5 seconds, it will display battery cycle times.
Battery Protection Display
Protection DisplayWhen any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Over heating protection, please remove the battery and place at room temperature to recover.
Low temperature protection, please remove the battery and place at room temperature to recover.
1. Over charging protection
2. Over load protection
3. Short circuit protection
Please remove the battery, check pin status, and the battery will recover automatically after 30 seconds.
E01/E02/E03: Not recoverable error, please contact manufacturer to repair, do not disassemble the battery yourself.
