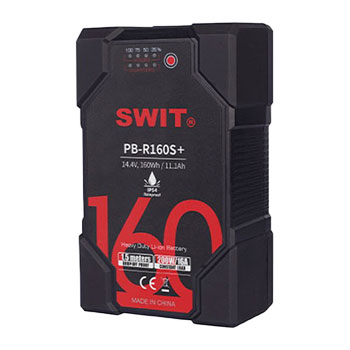

SWIT PB-R160S 160Wh Waterproof IP54 Robust Heavy-Duty V-Mount Battery
SWIT PB-R160S 160Wh Waterproof IP54 Robust Heavy-Duty V-Mount Battery, IP54 Water/Dust Proof, 200W/16A, 160Wh
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £9.70 / month (APR 19.9%)

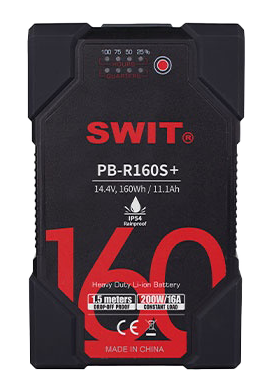

SWIT - 'PB-R160S+ 160Wh Heavy Duty IP54 V-Mount Battery Pack'
IP54 waterproof heavy duty batteryThe SWIT 160Wh Heavy Duty IP54 V-mount Battery Pack is a rugged and reliable power solution for professionals who need a battery pack that can withstand the toughest conditions. With its IP54 water and dust proof rating and strong 1.5m drop off proof design, this battery pack is built to handle whatever challenges you may face in the field. The 14.4V, 160Wh capacity provides ample power to run your equipment, while the 200W/16A constant high load and 6A fast charging support ensure that you can keep working without interruption. The 8-LED digital power indicators and SONY/RED viewfinder power info display make it easy to monitor your battery life, and the D-tap power output socket and V-mount connection provide versatile power options. With multiple circuit protections, you can trust that your equipment and the battery pack itself will be protected from damage.

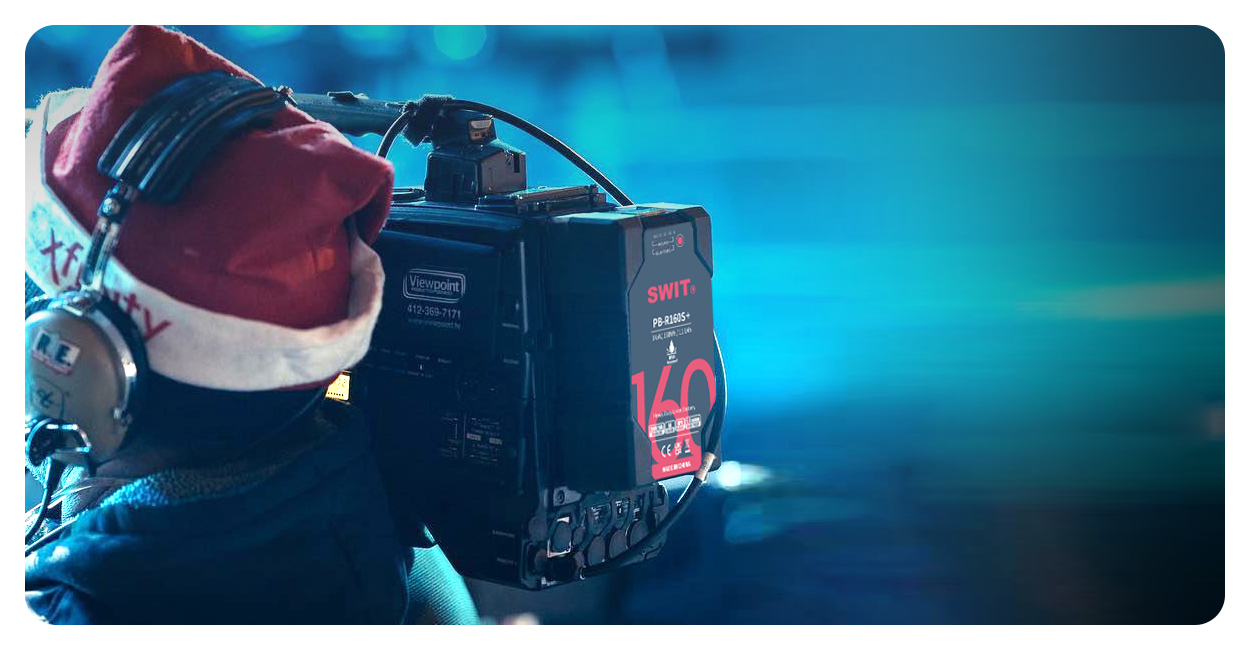

Heavy Duty Battery
High load and IP54 waterproofPB-R160S+ is a 160Wh V-mount battery, for Cine and ENG cameras, with dual housing heavy duty sealed structure, IP54 rainproof, 1.5m drop-off proof. The battery supports high load, fast charging and digital power info display, for field applications.

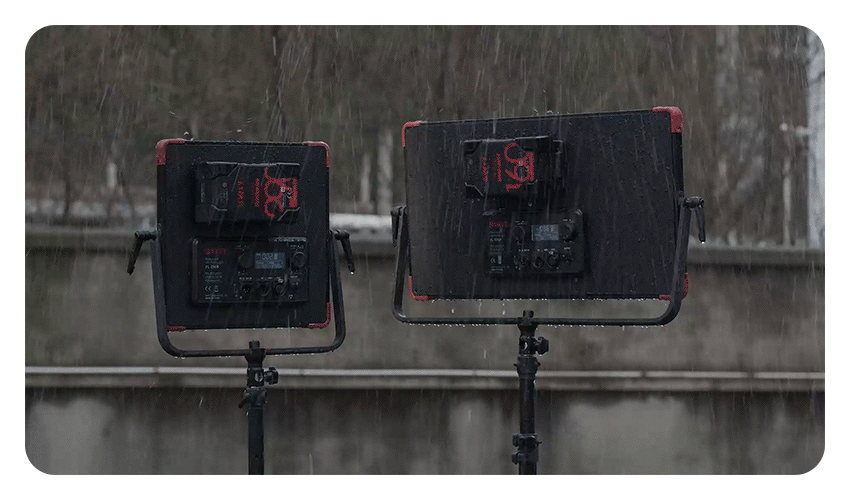

IP54 Waterproof
1.5 meters drop-off proofPB-R160S+ has dual housing sealed structure to support IP54 waterproof in rain, snow and other inclement weather. The dual housing with rubber cover is also strong enough to survive from 1.5 meters any angles drop-off.

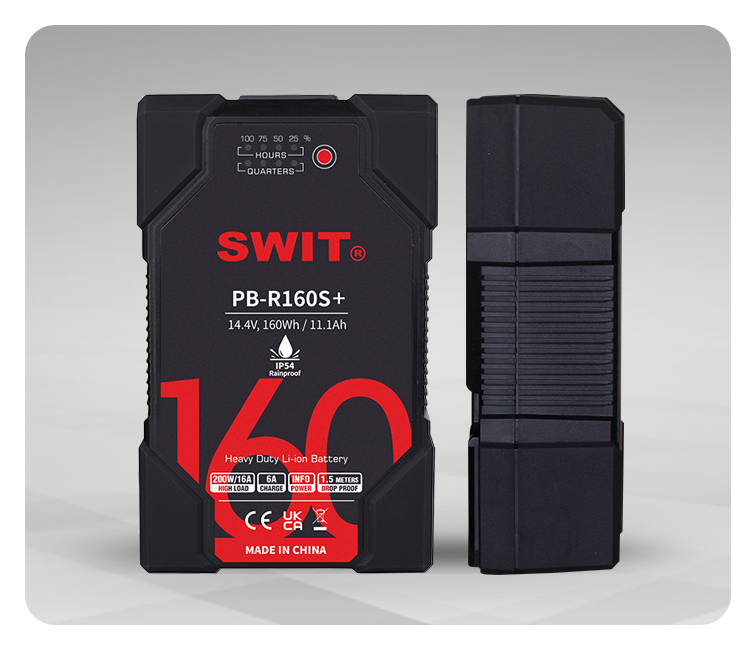

The largest Capacity For Airplane Boarding
160Wh / 11.1Ah CapacityConsists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane. It can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA.

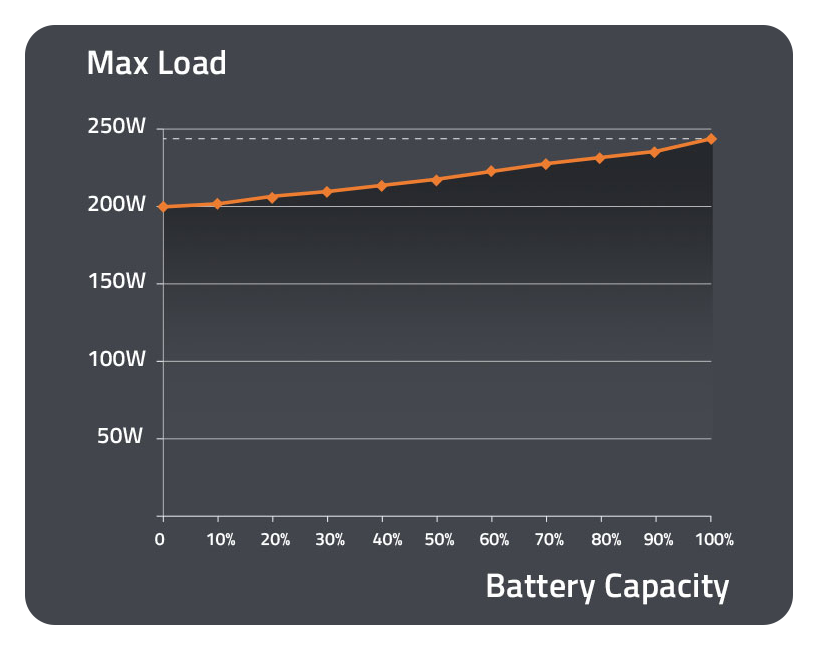

High Load For Cine Cameras
200W / 16A constant loadPB-R160S+ provides at least 200W/16A high load even at 1% capacity, (Peak load up to 245W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

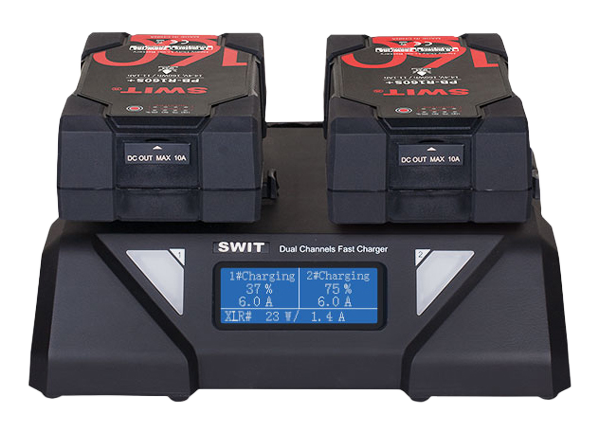

6A Fast Charging
Using SWIT 6A fast chargerPB-R160S+ supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time. The 160Wh PB-R160S+ battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

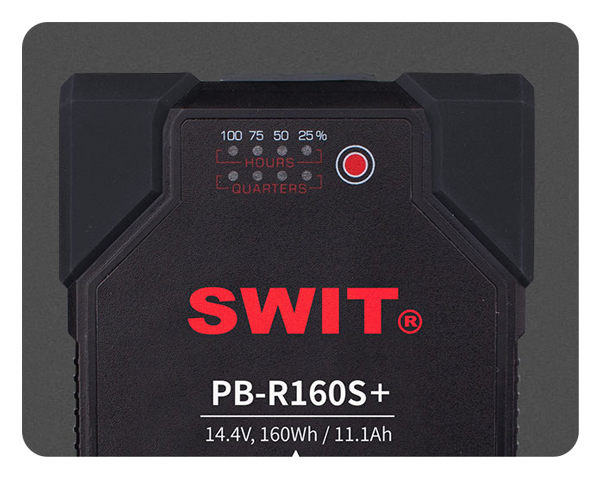

Digital Power Info
8-LED + SONY and RED viewfinder infoPB-R160S+ has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.

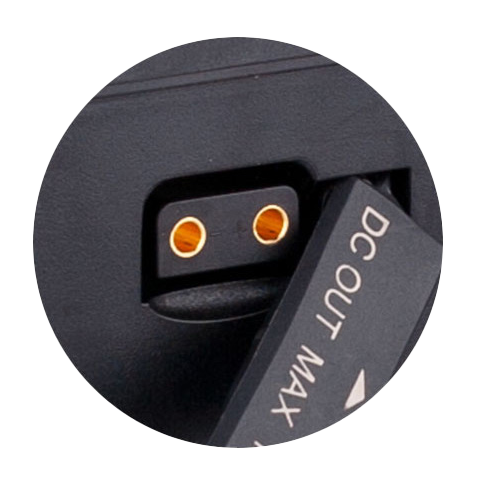

D-Tap Socket
D-tap DC output socketA D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together. The Max output current of D-tap is 10A
