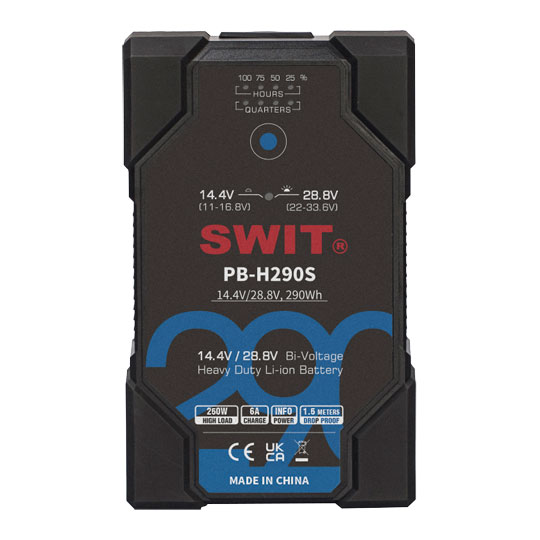

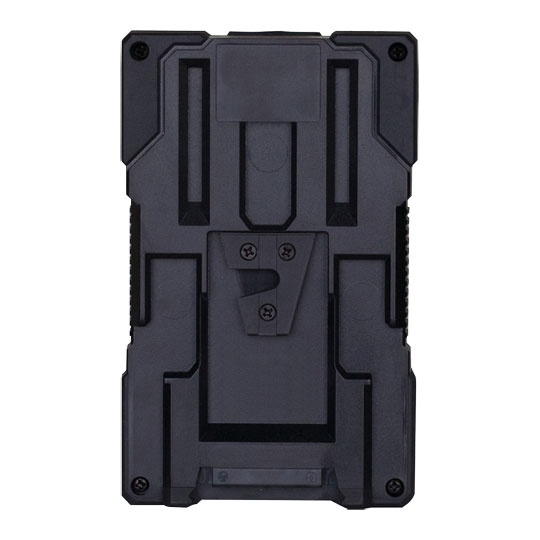

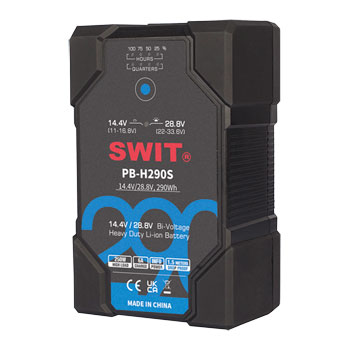

SWIT PB-H290S 290Wh Intelligent Bi-voltage Battery Pack
SWIT PB-H290S 290Wh Intelligent Bi-voltage Battery Pack, 290Wh, 14.4V/28.8V, D-Tap Output
Email me when the availability or price changes
- From £25.81 / month (APR 16.9%) or 0% for 4 months
-
Monthly Payment: £25.81 Instalment Rate: 16.9% p.a. (fixed) Cost of purchase: £736.99 Total inc. interest: £929.06 Example Minimum Spend: £99 Instalment Rate: N/A Cost of purchase: £99 Total inc. interest: £99 If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.Representative Example:
Purchase Rate: 23.9% p.a. (variable)
Representative: 23.9% APR (variable)
Assumed Credit Limit: £1,200
Subject to status. Terms and Conditions apply. -
Pay in
3
interest-free payments of
£245.66
- With a 10% deposit from just £19.58 / month (APR 19.9%)
SWIT - 'PB-H290S 290Wh Intelligent Bi-voltage Battery Pack'

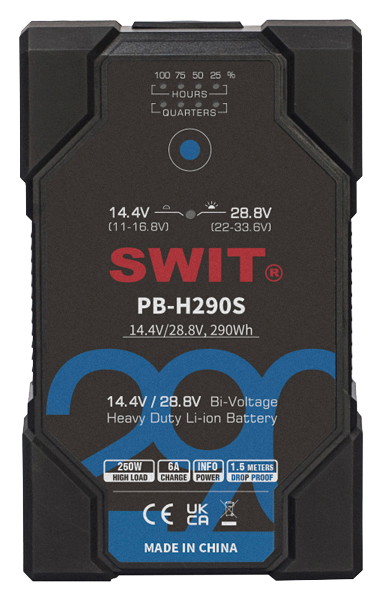

Intelligent Bi-voltage Battery PackIntroducing the SWIT PB-H290S 290Wh Intelligent Bi-voltage Battery Pack, designed for high-performance filming. With an innovative 14.4V/28.8V bi-voltage auto switch, this battery seamlessly supports ALEXA LF/65 high voltage cameras, as well as all standard voltage camera systems and high voltage cine lights. Boasting a substantial capacity of 290Wh and the ability to deliver at least 250W under heavy loads, it ensures reliable performance on set. Fast charging capabilities of up to 6A, remaining time indicators, and a D-tap power output socket make it as functional as it is dependable. Built to last with a 1.5m drop-off proof design and IP54 waterproof rating, the SWIT PB-H290S has multiple circuit protections, providing peace of mind while you capture.
14.4V/28.8V Bi-Voltage
For ALEXA LF/65 and all normal camerasThe great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.

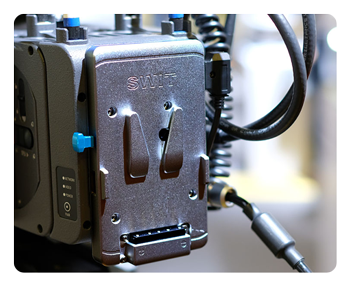

14.4V/28.8V Auto Switching
By Alexa dedicated plate KA-A20SThe Bi-voltage battery PB-H290S output normal 11-16.8V voltage as default, you can attach to any normal V-mount cameras or other devices, and any normal voltage chargers. Use the ARRI ALEXA dedi- cated V-mount plate KA-A20S, PB-H290S battery can recognize and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.

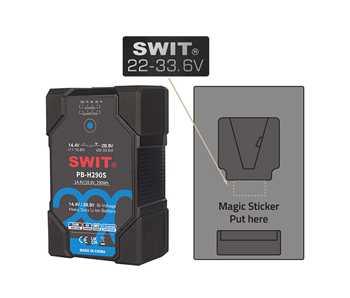

Magic Sticker
"Magic Sticker” on normal V-platesBesides ALEXA cameras, many Cine Lights are also designed with high voltage input, to reduce current ef- effectively, protect power pins and ensure reliability. You can easily put on a “Magic Sticker” on the par- ticular position of all standard V-mount plates, then PB-H290S battery can recognize and auto switch on 22-33.6V output mode.

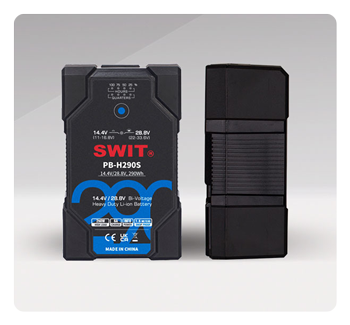

290Wh Capacity
250W High LoadPB-H290S consists of 24pcs high class 18650 battery cells and reaches 290Wh high capacity. PB-H290S supports Max 250W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously. The high-load battery will have a longer life time than normal battery if always under full load power.

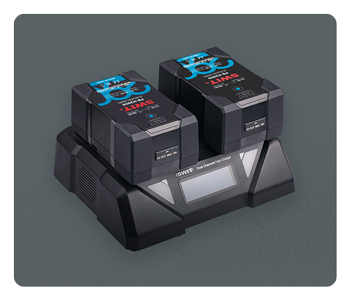

6A Super Fast Charging
Using SWIT super fast chargerPB-H290S supports 6A fast charging by SWIT S-3812S or PC-P460S super fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 3 hours 50 minutes.

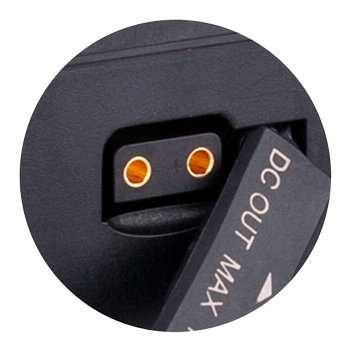

D-tap Socket
D-tap DC outputA D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together.

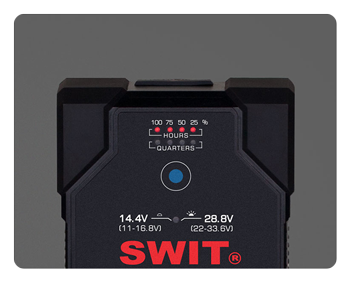

Digital Power Indicator
8-LED remaining time readWhen the battery is discharging: Press the "Power Check" button, The Upper 4 LEDs display the remaining working hours, and the Lower 4 LEDs display the remaining working minutes, under current output power. The LED will flash when the remaining time is less than 15 minutes to remind you to change the battery.
When battery is charging: Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free: Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

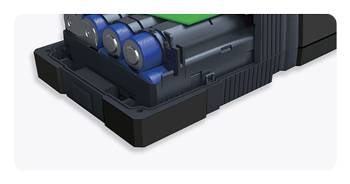

Strong 1.5m Drop-off Proof
Dual housing + Rubber coverPB-H290S has an innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
