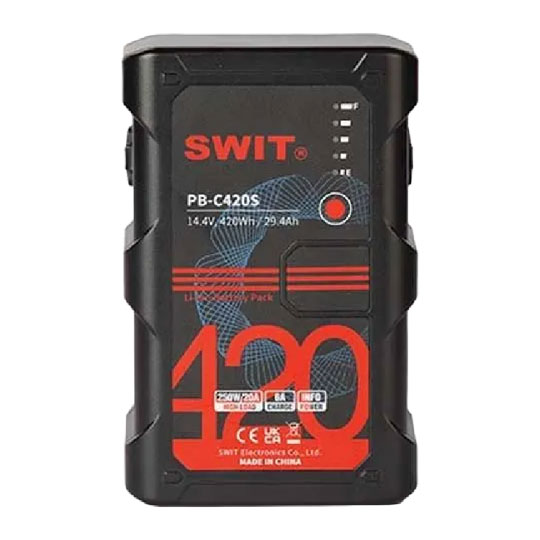

SWIT PB-C420S Large Capacity V-mount Battery
SWIT PB-C420S Large Capacity V-mount Battery, 14.4V, 2x D-Tap, 420Wh, 250W High Load, LED Indicators
Email me when the availability or price changes
SWIT - 'PB-C420S Large Capacity V-mount Battery'
420Wh V-mount BatteryIntroducing the SWIT PB-C420S Battery, with its impressive 14.4V, 420Wh/29.4Ah large capacity, this battery is built to fuel your creative endeavours with ultimate power. With a 250W/20A constant load and a staggering 305W peak load, it effortlessly handles high-intensity tasks. Furthermore, its 100W/6A fast charging support ensures that you spend more time capturing moments and less time waiting for batteries to recharge. Equipped with 2x D-tap power sockets capable of handling a 150W load, this battery expands your options by providing additional power outputs. Keeping you informed about the battery's status, the 5-LED digital power indicators offer real-time power level monitoring. Compatible with SONY/RED viewfinders the PB-C420S displays accurate power information to keep you in control. With multiple circuit protections in place, this battery guarantees safety and reliability, allowing you to focus on your craft without any interruptions.
The World’s Largest Capacity
One Battery, One DayPB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.
2x D-tap Sockets
14.4V, 420Wh, 2x D-tapPB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.4Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.
250W Constant High Load
305W Peak LoadPB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.
100W 6A Fast Charging
Fast ChargingPB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.
Reliable SWIT Quality
Active ProtectionThe PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.
