SWIT MINO-S140 Pocket V-Mount Battery
SWIT MINO-S140 Pocket V-Mount Battery, 140Wh/9.7Ah, D-tap/USB-A/USB-C, 65W USB-C Power Delivery
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £8.74 / month (APR 19.9%)
SWIT - 'MINO-S140 V-Mount Battery'

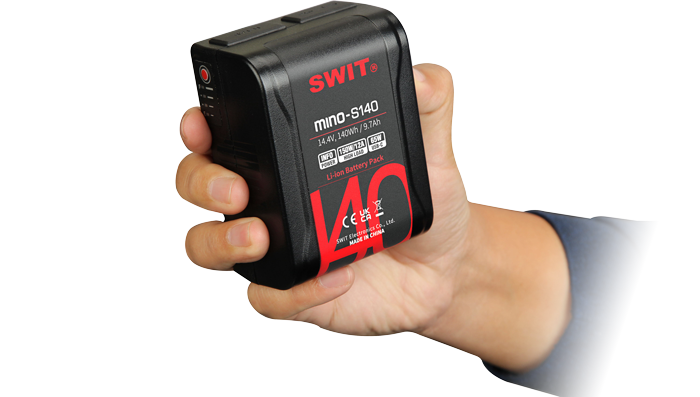

Tiny Size 140Wh BatteryThe Smallest 140 Wh V-mount battery you’ve ever seen!
MINO-S140 is a pocket sized, large capacity battery with a 65W USB Type-C connector, for cameras, monitors, accessories, tablets, laptops and all kinds of devices on set.

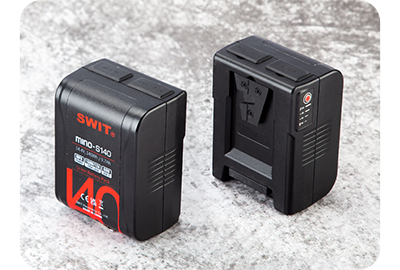

8 High Capacity Cells
150W/12A High LoadMINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.

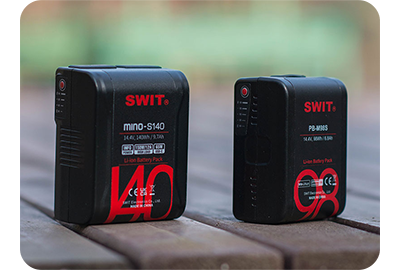

Pocket Sized Power
A Little Bigger, Much More CapacityComparing with the popular SWIT 98Wh Pocket V-Mount Battery, the new MINO-S140 provides 43% more capacity, but still within a tiny size for convenient carrying.

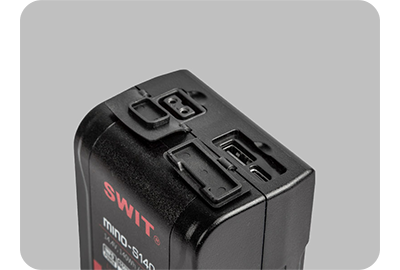

Multiple Power Outputs
D-tap, USB-A and USB-CThe tiny MINO-S140 doesn’t compromise on DC sockets.
1x D-tap – 150W/12A High Load (Supports charging input)
1x USB-A – 5V/2A output
1x USB-C – 65W output and 48W charging input

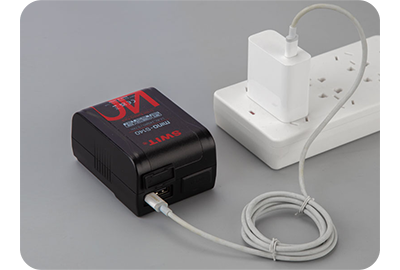

Charge Via USB Type-C
USB-C 48W charging inputMINO-S140 battery can be charged using a standard USB-C Charging hub. Supporting PD 5V 2.4A, 9V 2.4A, 15V 2.4A and Max 20V 2.4A which means you can fully charge the 140Wh battery within 3.5 hours.

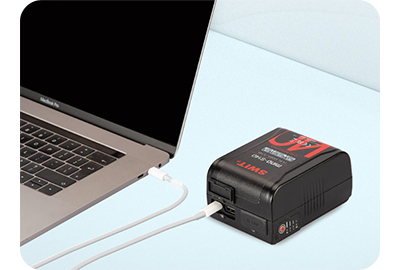

65W Power Delivery
USB-C 65W Power OutputYou can power your laptop via USB-C using MINO-S140 battery whilst on set or on the go. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

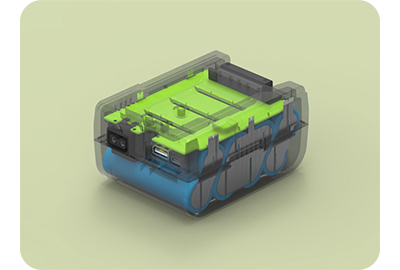

Wire-Free Internal Design
Wire-Free internal TechMINO-S140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
