Scan code: LN126855 Manufacturer code: KA-S30S

SWIT KA-S30S V-Mount Hot Swap Plate

SWIT KA-S30S V-Mount Hot Swap Plate, 43Wh, 2min Runtime, 2x D-tap/2-pin LEMO/USB Output, 8-pin LEMO Input, LCD Display

Thumbnail 1 : SWIT KA-S30S V-Mount Hot Swap Plate Thumbnail 2 : SWIT KA-S30S V-Mount Hot Swap Plate Thumbnail 3 : SWIT KA-S30S V-Mount Hot Swap Plate Thumbnail 4 : SWIT KA-S30S V-Mount Hot Swap Plate
Scan code: LN126855 Manufacturer code: KA-S30S
£646.80Item currently awaiting an ETA
Pre order
From £20.72 / month (APR 9.9%) or 0% for 4 months
Monthly Payment: £56.71
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £646.80
Total inc. interest: £680.49
Monthly Payment: £29.69
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £646.80
Total inc. interest: £712.57
Monthly Payment: £20.72
Instalment Rate: 9.9% p.a. (fixed)
Cost of purchase: £646.80
Total inc. interest: £745.54
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £16.15 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

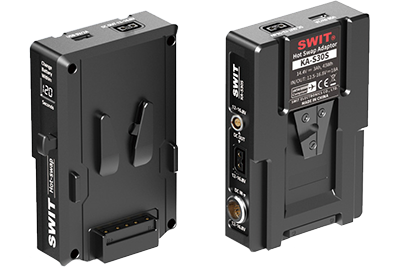

SWIT - 'KA-S30S V-Mount Hotswap Plate'

SWIT KA-S30S V-Mount Hotswap Plate

120 Second Hotswap PlateKA-S30S is a V-mount extended plate with battery cells inside, and when you changing battery, the plate will take over the power supply until a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.

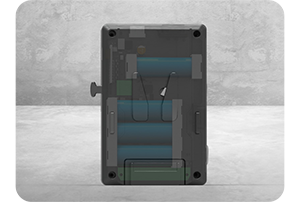

2 Minutes at 200W Load

SWIT KA-S30S V-Mount Hotswap Plate

At least 2 mins at 200W LoadKA-S30S has CNC alluminum housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load. The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

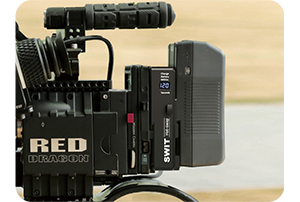

Built-in LCD Countdown Timer

SWIT KA-S30S V-Mount Hotswap Plate

120 Seconds Countdown DisplayThe hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

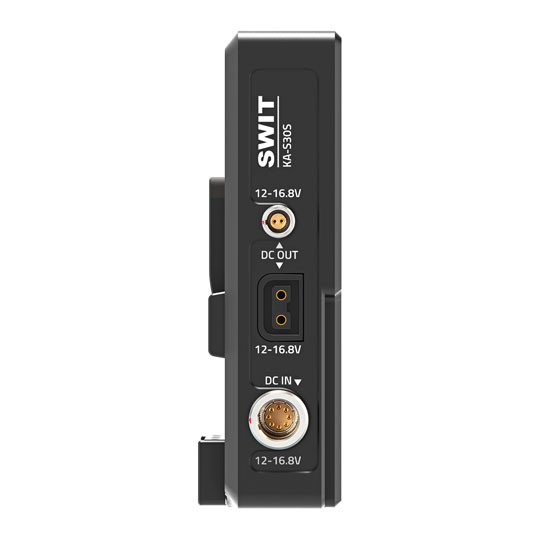

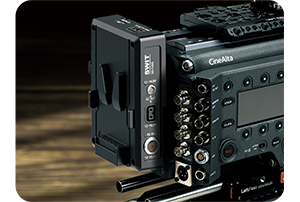

Multiple Power Outputs

SWIT KA-S30S V-Mount Hotswap Plate

Power InterfacesKA-S30S provides:
1x 2-pin LEMO 12-16.8V 38W/3A out
2x D-tap 12-16.8V 125W/10A out
1x USB-A 5V/2A output
1x 8-pin LEMO 12-16.8V input (For power station hotswap)

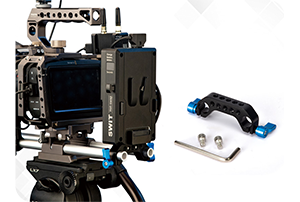

Included 15mm Rod Adapter

SWIT KA-S30S V-Mount Hotswap Plate

15mm Rod AdapterKA-S30S provides with a free 15mm Rod Adapter in the package, to install on 15mm rig systems to power the cameras without V-mount plate.

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
24 months
