Scan code: LN73050 Manufacturer code: X11SAE-M

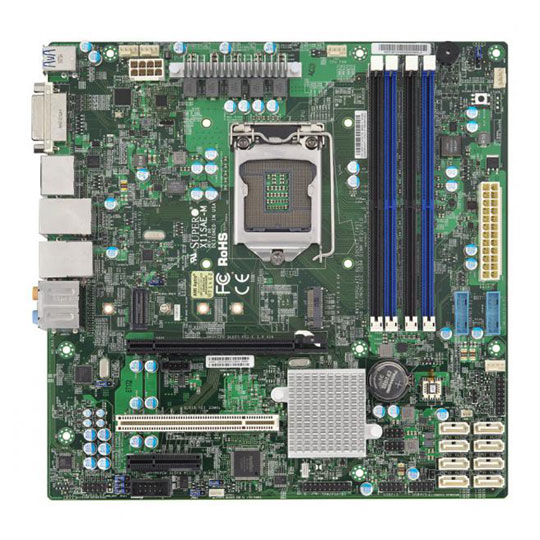

Supermicro Skylake Xeon X11SAE-M Micro ATX Server Motherborad

Supermicro X11SAE-M, Intel C236, S1151, DDR4, SATA3 6Gbps, M.2 (PCIe), Dual Intel Gigabit LAN, USB 3.1 A, Micro ATX

Scan code: LN73050 Manufacturer code: X11SAE-M
£184.99Item currently awaiting an ETA
Pre order
From £16.61 / month (APR 14.9%)
Monthly Payment: £32.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £184.99
Total inc. interest: £192.59
Monthly Payment: £16.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £184.99
Total inc. interest: £199.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Single Socket 1151 Micro ATX Supermicro Motherboard, supporting ECC/Non-ECC Unbuffered DDR4 Memory, with Dual Gigabit LAN, SATA3 Ports & M.2 PCIe Slot, for Intel Xeon E3-1200 v5 processors. Features • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium®.
• Intel® C236 chipset.
• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots.
• 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots.
• Single GbE LAN with Intel® i210-AT, Single GbE LAN with Intel® i219LM.
• 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (support PCIe x4 only, 2242/2260/2280/22110).
• 2x SuperDOM with built-in power.
• 6x USB 3.0 (2 rear + 4 via header).
• 6x USB 2.0 (2 rear + 4 via headers).
• 2x USB 3.1 (10Gbps, rear).
Specifications
Core Specifications
Edition
Form Factor MicroATX
CPU Socket 1151
Chipset Intel C236
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ALC 888S HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe
  • 1 x PCI (32 bit)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 5 x Fan Header (V)
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I210AT (Gigabit LAN)
  • 1 x Intel® I219LM (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 2 x USB 3.1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
