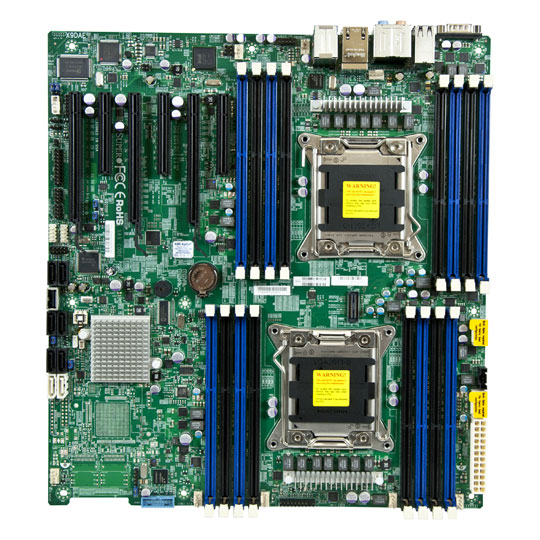

Supermicro MBD-X9DAE-O Intel C602 Dual Socket 2011 Motherboard

Supermicro MBD-X9DAE-O, Intel C602, S 2011 x2, DDR3, SATA III - 6Gb/s, SATA RAID, PCIe 3.0 (x16), E-ATX

Supermicro
Scan code: LN48494 Manufacturer code: MBD-X9DAE-O Request call
£469.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £11.74 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Supermicro's New Generation X9 Serverboards offer the highest levels of performance, efficiency and scalability in the industry. The Supermicro X9 Serverboards are available in a variety of architectures including Twin and new Fat Twin, GPU Supercomputer, Data Center Optimized, SuperServer® Advantage, I/O Optimized, SuperWorkstation, and SuperStorage Solutions.
These Serverboards offers numerous advantages including up to 768GB of Reg. ECC DDR3-1600MHz memory in 16 DIMM slots, SATA 3.0 and SAS 2.0 (6Gb/s) HDD support, ConnectX FDR/QDR InfiniBand ports, dual 10 Gigabit Ethernet, Quad Ethernet LAN, PCI-E 3.0 technology, LSI® 2308 controller with software RAID and LSI® 2208 controller with hardware RAID, IPMI 2.0, and Intel® Xeon® processor E5-2600/1600 family for highest performance. With this New Generation X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for Data Center, Enterprise IT, Cloud Computing, Graphics, Technical Computing, and HPC environments.

Features • Dual Socket R (LGA 2011) support: Intel® Xeon® processor E5-2600 family; QPI up to 8.0GT/s
• Intel® C602 Chipset
• 16 DIMM, up to 512GB DDR3 1600MHz ECC RDIMMs
• 3 (x16) PCI-E 3.0, 2 (x8) PCI-E 3.0, and 1 (x4) PCI-E 3.0 in x8 slots
• Intel® i350 Dual port Gigabit Ethernet LAN; 2x 1394a headers
• 6 SATA2 and 2 SATA3 ports
• RealTek ALC889 7.1 HD 8 Channel Audio w/ S/PDIF header
• 2x USB 3.0 and 4x USB 2.0 ports
• Form factor: E-ATX, 12" x 13"
Specifications
Core Specifications
Form Factor E-ATX
CPU Socket 2011 x2
Chipset Intel C602
RAM Memory Support
Memory Type DDR3
Memory Channel
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM
Memory Speed (Mhz) DDR3 - 1600
Max. Memory Capacity 512GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support N/A
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x8
  • 1 x PCIe 3.0 x8 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 8 x SAS 3Gb/s
  • 6 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 1 x USB 2.0
  • 1 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 4 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed 8.0 GT/s
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
