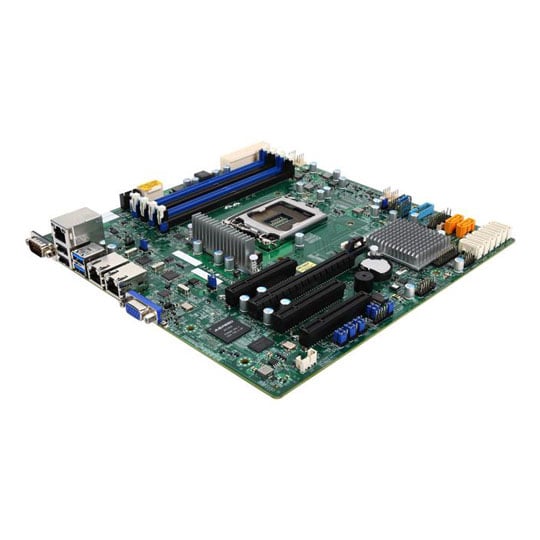

Supermicro LGA1151 Xeon Micro ATX Server Motherboard MBD-X11SSM-F

Supermicro MBD-X11SSM-F, Intel C236, S1151, DDR4-2133MHz, SATA III - 6Gb/s, 5x USB 3.0, Dual GbE + IPMI + KVM, Micro ATX

Scan code: LN76748 Manufacturer code: MBD-X11SSM-F Request call
£202.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £9.75 / month (APR 14.9%)
Monthly Payment: £35.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £202.99
Total inc. interest: £211.33
Monthly Payment: £18.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £202.99
Total inc. interest: £218.66
Monthly Payment: £12.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £202.99
Total inc. interest: £226.15
Monthly Payment: £9.75
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £202.99
Total inc. interest: £233.80
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Supermicro LGA1151 X11SSM-F Server Xeon Motherboard Features • Single socket H4 (LGA 1151) supports
• Intel® Xeon® processor E3-1200 v5,
• Intel® 6th Gen. Core™ i3 series,
• Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4 DIMM slots
• Expansion slots:
- 1 PCI-E 3.0 x8 (in x16),
- 1 PCI-E 3.0 x8,
- 2 PCI-E 3.0 x4 (in x8)
• Dual GbE LAN with Intel® i210-AT
• 8 SATA3 (6Gbps) via C236;
• RAID 0, 1, 5, 10
• I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
• 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 6 USB 2.0 (2 rear, 4 via headers)
• Integrated IPMI 2.0 and KVM with Dedicated LAN
Core Specifications
Form Factor MicroATX
CPU Socket 1151
Chipset Intel C236
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 64GB
Audio N/A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 1 x PCIe 3.0 x8
  • 2 x PCIe 3.0 x8 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 8 x SATA III - 6Gb/s
  • 2 x SuperDOM (Disk on Module) Port
  • 1 x TPM Header (20-pin)
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 2 x Intel® I210AT (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 2 x Serial (COM)
  • 6 x USB 2.0
  • 5 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Scan Computers International Limited
Customers also bought
Questions & Answers

What versions of Xeon CPU does this support?

The features listed state that it supports E3-1200v5 But I believe it may also support E3-1200v6 CPUs?
Asked by: IanUK
Hello, Yes this board should also support E3-1200v6 CPU's. Regards,
Answered by: JackB
Date published: 2017-08-01

Are you able to confirm the BIOS version this MB ships with?

In order to use with Xeon E3-1200 v6 series a specific BIOS version is required. I don't want to miss-match and find it won't boot!
Asked by: Nick1
Hello, Unfortunately we cannot guarantee the BIOS version, if you like you can contact our sales team to update the bios for you, a small fee may be charged. Hope that helps, Regards,
Answered by: MichaelScan
Date published: 2017-09-23
