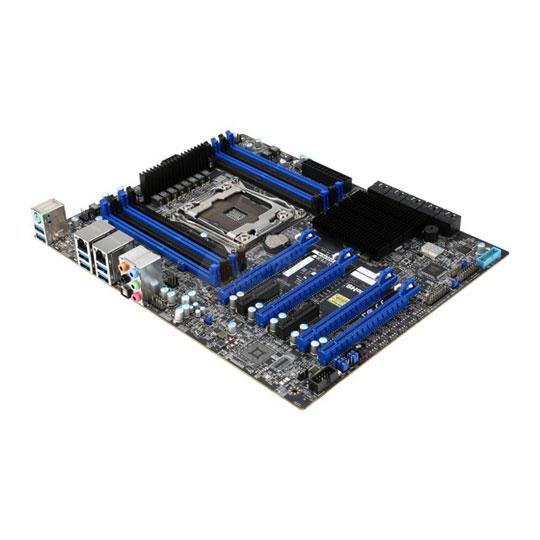

Supermicro MBD-X10SRA-O Server ATX Motherboard

Supermicro MBD-X10SRA-O, Intel C612, S 2011-3, DDR4, SATA3 6Gbps, Gigabit LAN, USB 3.0, ATX

Supermicro
Scan code: LN67031 Manufacturer code: MBD-X10SRA-O Request call
£282.98
In stock
Pay on Scan Finance with a 10% deposit from just £7.07 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 28th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview SUPERMICRO MBD-X10SRA-O ATX Server Motherboard


• Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC RDIMM
• Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)

• 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8) Features • Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7
• Intel® C612 chipset
• Up to 512GB ECC DDR4 2133MHz, LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only); 8x DIMM slots
• 4 PCI-E 3.0 x16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 x1 (in x4)
• Intel® i210-AT Dual port GbE LAN
• 10x SATA3 (6Gbps)
• 1x COM, 1x TPM
• 8x USB 3.0 ports (6 rear + 2 via header)
• HD Audio 7.1 channel connector by Realtek ALC1150
Specifications
Core Specifications
Form Factor ATX
CPU Socket 2011-3
Chipset Intel C612
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM / LRDIMM
Memory Speed (Mhz)
  • DDR4 - 1333
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
Max. Memory Capacity 512GB (8x64GB)
Audio
Audio Realtek ALC1150 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 3 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 10 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I210AT (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x 7.1 Audio I/O
  • 1 x PS/2 Keyboard/Mouse Combo
  • 6 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Customers also bought
Reviews
Supermicro MBD-X10SRA-O, Intel C612, S 2011-3, DDR4, SATA3 6Gbps, Gigabit LAN, USB 3.0, ATX is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Good board, documentation could be better, BIOS update for 2011-v4 Supermicro boards tend to be pretty good, the previous one I had came with a printed manual and I had no issues with it. Once up and running it works well, the only snag I've hit is that the watchdog timer doesn't seem to respond properly under Linux, though that may be an issue with Linux rather than the board itself. Though the box contains a quick-reference sheet for the motherboard, there's no printed manual - that's not too much of a problem as it can be downloaded. However both the quick-reference sheet and the printed manual seem inaccurate in places (e.g. jumper settings are the opposite of what's documented, some of the front panel connectors seem to have Vcc/ground reversed - unless the chassis has the cable colours the wrong way around!) Initially the system wouldn't boot, as it required a BIOS update to support the 2011-v4 CPU I wanted to use. Not being able to boot meant I couldn't update the BIOS, despite there being recovery options on the board itself these rely on a compatible CPU being present in the first place. Scan kindly offered to perform the BIOS update for me, so I'm grateful for that. Overall it's a good board with lots of expandability.
Date published: 2016-06-18
