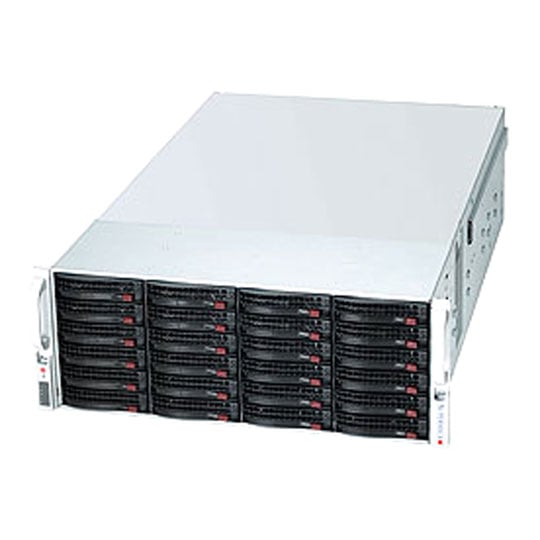

SuperMicro 847E26-RJBOD1 45 Bay 4U Storage Chassis

SuperMicro CSE-847E26-RJBOD1 4U Rackmount, 45x 3.5" SAS/SATA Hot-swap Bays, 1400W (1+1) Redundant PSU, Storage Chassis

Supermicro
Scan code: LN64751 Manufacturer code: CSE-847E26-RJBOD1 Request call
£2,924.48Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £73.04 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview Supermicro SuperChassis 4U Rackmount Storage Chassis supporting up to 45x SAS or SATA Hard Drives. Includes 2x 1400W Redundant Power Supplies.

More information can be found in the PDF below:
Data Sheet Features • High Efficiency Power & High Storage Capacity
• Extra High-Density 4U JBOD Storage Chassis
• High-Availability Features: Redundant, Hot-pluggable cooling system, Power Supplies, Hot-swap drives
• Redundant (1+1) 1400W Gold Level power supply with PMBus function
• Maximum 3.5" hot-swap drives density: 45x (24 front + 21 rear) HDD bays; E26 - 2x Expanders support SAS2 (6Gb/s)
• 7x 8cm (middle) Hot-swap cooling fans, redundant cooling

Parts List:
Chassis: 1x CSE-847E26-RJBOD1 4U Chassis (Black)
Backplane: 1x BPN-SAS2-846EL2 Backplane supports upto 24 SAS/SATA
Backplane: 1x BPN-SAS2-847EL2 847 backplane with dual LSI SAS2X36 expander chips
Control Board: 1x CSE-PTJBOD-CB2 CSE-PTJBOD-CB2 Power board for JBOD
Cable 1: 1x CBL-0386L 70x2/50x2 cm 4 port external to internal IPASS for 847. 30AWG
Cable 2: 1x CBL-0102L 4 pin to 3 pin I2C CABLE FOR SATA LED, 51CM, LF. 26AWG
Power Supply: 2x PWS-1K41P-1R 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3
Power Distributor: 1x PDB-PT847-8824 24pin standard output with 5V high current 100Amp power distributor board for SC847
Cable 3: 1x CBL-0217L 16 pin control panel converter cable for SC826,846, 22cm, PBF
Cable 4: 7x CBL-0088L 10.5\", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG
Cable 5: 2x CBL-0160L NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 6: 1x CBL-0071L ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
Fan 1: 7x FAN-0126L4 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Front Panel: 1x MCP-280-82601-0N Front control board adapter (TB826) for SC216,826,936,846
Drive Tray(s): 45x MCP-220-00075-0B Black gen 5.5 hot-swap 3.5\" HDD tray
Mounting Rails: 1x Set MCP-290-00057-0N Rail set, quick/quick, default for 4U 17.2
Specifications
Specifications
Case Edition SuperChassis
Case Form Factor 4U Rackmount
Motherboard Form Factor
Material Metal
Front/ Side/ Top Panel
  • 1 x Hard drive activity LED
  • 2 x Network activity LEDs
  • 1 x Power fail LED
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x System Overheat LED
  • 1 x System Reset button
Drive Bays 45 x 3.5" SAS / SATA Hot-swap
Expansion Slots
Fan Bays 7 x 80mm
Fans Included 7 x 80mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor High-efficiency Redundant with PMBus
Max PSU Length
Max CPU Cooler Height mm
Max VGA Card Length mm
Colour Black
Dimensions 437 x 178 x 699 (WxHxD mm)
Weight 36.3 kg (Approx)
