Scan code: LN105481 Manufacturer code: ST-DB4-BLACK

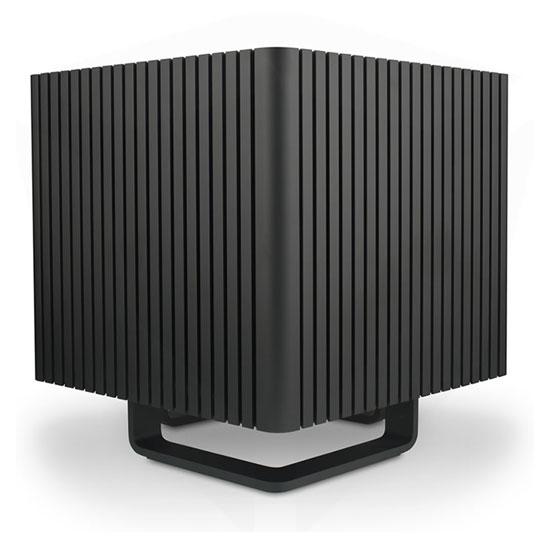

Streacom DB4 Aluminium Fanless Case - Black

Streacom ST-DB4, Black, Compact Fanless Case, Aluminium, Bi-Symmetrical Chassis, Mini-ITX, USB 3.0

Thumbnail 1 : Streacom DB4 Aluminium Fanless Case - Black Thumbnail 2 : Streacom DB4 Aluminium Fanless Case - Black Thumbnail 3 : Streacom DB4 Aluminium Fanless Case - Black Thumbnail 4 : Streacom DB4 Aluminium Fanless Case - Black
Scan code: LN105481 Manufacturer code: ST-DB4-BLACK
£279.98
Order now and receive it by Monday, 10th August
From £13.44 / month (APR 14.9%)
Monthly Payment: £25.14
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £279.98
Total inc. interest: £301.62
Monthly Payment: £13.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £279.98
Total inc. interest: £322.54
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 10th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Streacom DB4 Aluminium Fanless Chassis

The DB4 is a design masterpiece featuring a bi-symmetrical design that blurs the lines between technology and art. Every element of this case subtly screams premium, from the 13mm thick extruded aluminium side panels to the precision CNC’d internal frame, all perfectly blended together with our characteristically understated design tone.
Key to its design are the identical sides of the case which serve both as the striking monolithic exterior and the convection surface (or heat sink) for component cooling and is the basis of its fanless operation.
Motherboard compatibility has been addressed, the DB4 solves one of the biggest complexities of building a fanless case. With both the motherboard and side panels being parallel, the heat pipes run perpendicular, away from any components and in combination with the flexibility of the universal bracket, means that virtually all ITX motherboard are compatible with the case.
Our existing CPU mount has also been re-engineered to be adjustable and universally compatible with any socket. It now features a copper shim interface between the IHS and heat pipes which creates a more efficient all copper thermal path to the heat sink, greatly improving cooling performance.
To make assembly easier, all the side panels are removable, as is the motherboard tray, leaving an open frame with plenty of accessibility. Building on the innovation of our F12C, components are fitted using a universal bracket system that supports, drives, heat sink mounts and the ZF240, allowing components to be mounted anywhere along the frame of the case, delivering a truly modular and flexible layout.
The DB4 measures 260 x 260 x 270mm but still manages to accommodate an ITX motherboard, a dual-slot full-height PCI card (max 200mm length, 110mm height), up to 5 x 3.5” or 12 x 2.5” drives (lots of combinations in between), and can be powered by our Nano or ZeroFlex PSU solutions.

Features

• A manufacturing masterpiece featuring a bi-symmetrical design.
• Full aluminium body.
• Passively cooled CPU and power supply.
• Compatible with mini-ITX motherboards.

Chassis Material: Premium Grade (6063) All Aluminium, 4mm Thick Extruded Panels
Available Colours: Silver / Black – Sandblast Finish
Motherboard Support: Mini-ITX
Drive Capacity: Maximum 5 x 3.5? or 12 x 2.5? *1
Optical Drive Bays: Optical Kit for slim slot loading drive
Expansion Slot: 2 x Full Height Slots (MAX 200mm Length, 116mm Height*2)
USB Ports: 2 x USB3.0, Bottom Facing
Cooling: 4 x 6mm Heatpipes with 65W / Side Panel, Expandable to 110W*3
External Dimensions: 260 x 260 x 270mm (W x D x H)
Volume: 18.25l
Power Supply: ZF240 or Nano Series PSU (Not Included)
Remote Control: None
Net Weight: 7.5KG

Specifications
Core Chassis Specifications
Case Edition DB4
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Power On/Off button
  • 2 x USB 3.0
Drive Bays
  • 12 x 2.5" Internal
  • 5 x 3.5" Internal
Standard Expansion Slots 2
Vertical Expansion Slots
Fans & Filters
Fan Bays
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height
Max GPU Card Length 200 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support nanoPSU
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Aluminium
Dimensions 260 x 260 x 270 (WxHxD mm)
Weight 7.5 kg (Approx)
Please Note
Additional Information
Scan Code LN105481
Model Number ST-DB4-BLACK
GTIN 8718469090464
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
