2 Port PCI-E SuperSpeed USB 3.0 Card Adapter PCI-E 2.0 2x USB 3.0 Adapter Card, Upto 5Gbps, USB 2.0/1.0 Back Compatible, Includes Low Profile Bracket

Thumbnail 1 : 2 Port PCI-E SuperSpeed USB 3.0 Card Adapter Thumbnail 2 : 2 Port PCI-E SuperSpeed USB 3.0 Card Adapter Thumbnail 3 : 2 Port PCI-E SuperSpeed USB 3.0 Card Adapter Thumbnail 4 : 2 Port PCI-E SuperSpeed USB 3.0 Card Adapter
Scan code: LN69862 Manufacturer code: PEXUSB3S25
£26.48Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

SuperSpeed USB 3.0 Adapter

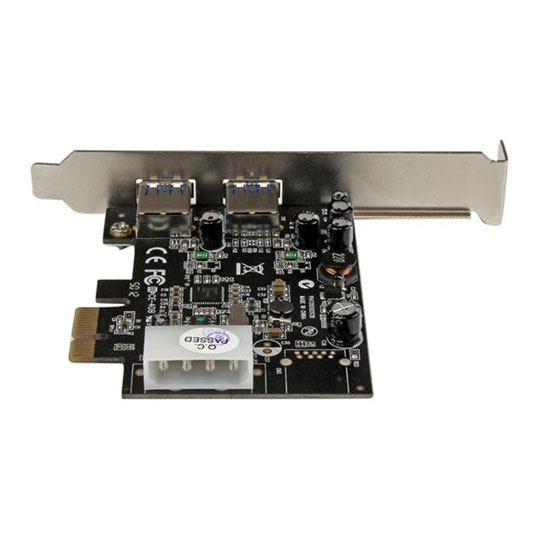

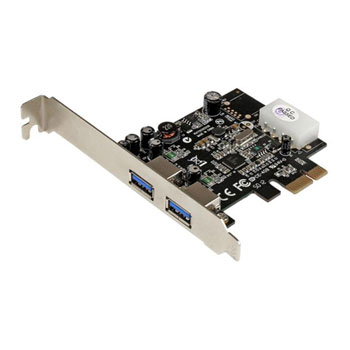

The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

Increased Transfer Speeds

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimises transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.

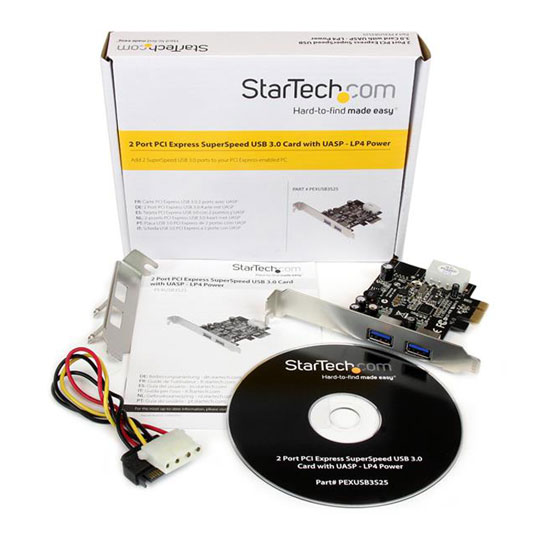

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

• Provides two external USB 3.0 ports with UASP support.
• Supports data rates up to 5 Gbps.
• Compliant with PCI Express 2.0 specifications.
• Optional LP4 power connector provides up to 900mA per USB port.
• Supports USB Battery Charging Specification 1.2.
• Fully compliant with USB 3.0 rev 1.0 and Intel xHCI rev 1.0 specifications.
• Backward compatible with USB 2.0 and USB 1.0/1.1 devices.
Interface PCIe 2.0 (x1)
Internal Connectors
External Connectors 2 x USB 3.0
Power Connector 1 x 4pin Power
Additional Information
Scan Code LN69862
Model Number PEXUSB3S25
GTIN 5054484542278

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
0800 169 0408
Loading Please Wait

Please wait . . .

TekSpek Guides
USB 3.0
USB 3.0
Date Issued: 29th Jun 2010

USB 3.0, also known as SuperSpeed USB, is a buzzword you might have seen popping up repeatedly over the last 12 months or so. In this guide, we'll explain what it is, what it does, and what it could mean for you as the consumer.

Read More

PCI Express
PCI Express
Date Issued: 20th Oct 2008

A motherboard’s main job is to act as a conduit between the various hardware elements that make up a PC. It needs to be able to link the desired CPU(s), system memory, graphics card, hard drive(s), and add-in cards and enable them to work in harmony.

Read More

what is the USB controller make & model?

Looking at a USB3 card to use with the oculus rift s; they have a blacklist of USB controllers that don't work well (e.g anything made by VIA, and some Asmedia chips) that won't work with it - what brand is the controller on this board?
Asked by: q927dhw4gfbrhtju
Good Afternoon, For information on this, I would recommend speaking with our sales department as they are more technically minded in that team. you can reach them on 01204 474747 using the extension 2 > 1. Alternatively, you can log a message via the link below and they will email you back. Kind Regards,
Answered by: LukeW
Date published: 2020-01-29
