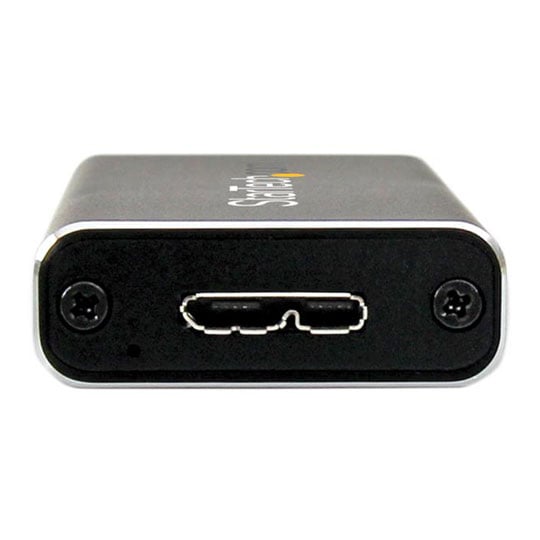

Product Overview Turn your solid state drive into an ultra-portable pocket drive

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive.

Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.

The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

• Re-purpose an M.2 SATA SSD as a USB 3.0 external drive
• Carry with your laptop for a highly portable external storage solution
• Transfer files to or from your external drive faster, by using a high performance SATA M.2 SSD as your external drive
• Get the most out of your M.2 SSD with an external USB enclosure that supports UASP, for transfer speeds up to 70% faster than traditional USB 3.0
• Rest assured your M.2 SSD is supported, with mounting points for the most common M.2 NGFF SSD heights (2230, 2242, 2260, 2280)
• Carry your USB 3.0 external M.2 SSD in your laptop bag, and maximize portability with a small footprint, lightweight design Features • Boost external performance by leveraging the speed of your SATA M.2 SSD in a UASP-supported USB 3.0 enclosure
• Broad compatibility with support for the most common SATA M.2 SSDs (30mm, 42mm, 60mm, 80mm)
• Maximize portability with a small footprint, lightweight design and USB-powered performance
• Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
• Compatible with SATA revision I/II/III (1.5 / 3.0 / 6.0 Gbps)
• Aluminum housing with ventilation holes for added heat dissipation

Includes:
• 1x USB 3.0 to M.2 NGFF SSD Enclosure
• 1x USB 3.0 Cable
• 1x SSD screw kit
• 1x Mini screw driver
• 1x Instruction manual

Connector(s)
Drive ConnectorsM.2 (NGFF; B Key) Receptacle
Host ConnectorsUSB 3.0 Micro-B (10 pin; SuperSpeed) Female
Environmental
Humidity5% to 95% RH
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-10°C to 85°C (14°F to 185°F)
Hardware
Bus TypeUSB 3.0
Chipset IDAsmedia - ASM1153
Compatible Drive Types (Type and Rate)M.2 (NGFF; B Key)
Drive InstallationFixed
InterfaceUSB 3.0
Number of Drives1
Packaging Information
Shipping (Package) Weight0.1 kg [0.3 lb]
Performance
General SpecificationsNot compatible with PCI-Express M.2 SSDs
Maximum Data Transfer Rate5 Gbps
Type and RateSATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorBlack
Enclosure TypeAluminum
Product Height15 mm [0.6 in]
Product Length100 mm [3.9 in]
Product Weight68 g [2.4 oz]
Product Width35 mm [1.4 in]
Power
Power SourceUSB-Powered
What's in the Box
Included in PackageInstruction manual
Mini screw driver
SSD screw kit
USB 3.0 Cable
USB 3.0 to M.2 NGFF SSD Enclosure
