StarTech 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane

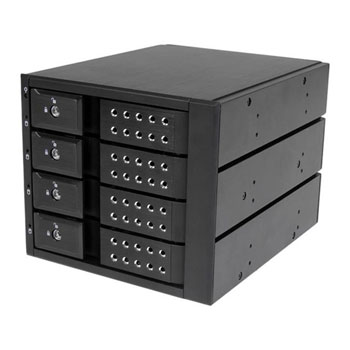

Product Overview The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The StarTech.com Advantage
• Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps.
• Flexible drive options with support for both SATA and SAS drive interfaces.
• Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan. Features • Solid aluminum construction.
• Key lock design.
• Built-in fan.
• 4 drive bay design.
• Installs in three 5.25" drive bays.
• Trayless design for easier hot swapping.
• Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps).
• Support for SAS revision I/II (3.0/6.0 Gbps).
• Power and Activity LEDs for each drive.
• UL94 - V0 flammability rating.

Applications
• Imaging - for new system builds or configurations, use the hot swap bay in your master system to quickly copy the Windows OS to multiple blank hard drives.
• Add a hot-swap bay to a server or workstation computer that you can use as a removable backup solution.
• IT environments where you need to quickly insert/replace hard drives with no external HDD enclosure required.
• Onsite data backup as a secure alternative to cloud storage.

Specification
• Compatible Drive Types : SAS & SATA
• Drive Installation: Removable
• Drive Size: 3.5in
• Fan Bearing Type: Sleeve Bearing
• Fan(s): Yes
• Fans: 1 - 70 mm
• Front Door Key Lock: Yes
• Interface: SATA, SAS
• Number of Drives: 4
• Number of internal 3.5 inch bays: 4
Performance
• Max Drive Capacity: Currently tested with up to 6TB 7200 RPM hard drives
• Maximum Data Transfer Rate: 6 Gbit/s
Connector(s)

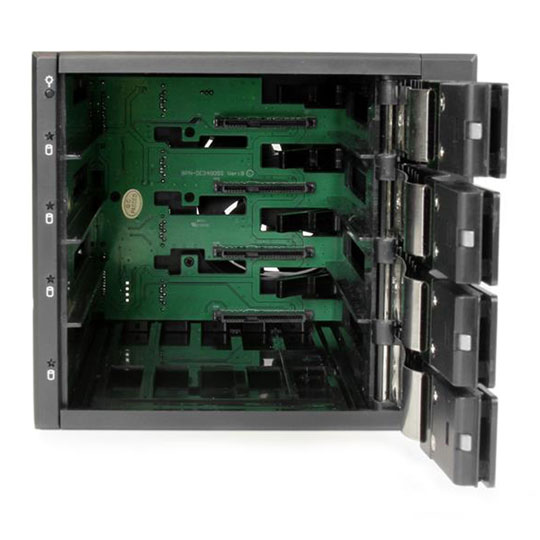

• Drive Connectors: 4 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle

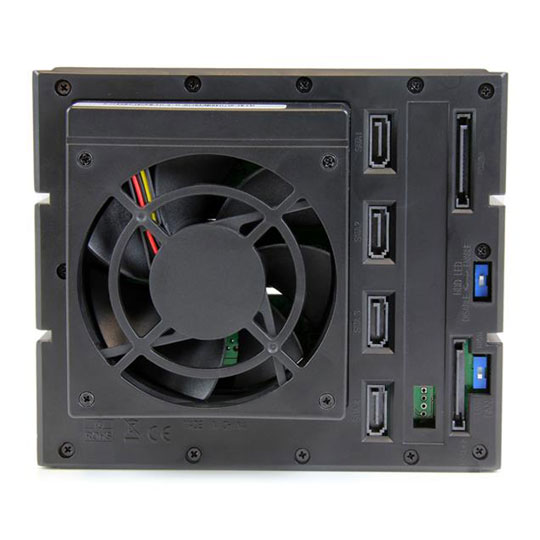

• Host Connectors: 2 - SATA Power (15 pin) Receptacle, 4 - SATA (7 pin, Data) Receptacle
Software
• OS Compatibility: OS independent; No software or drivers required
Special Notes / Requirements
• System and Cable Requirements: Flammability rating: UL94 - V0
Indicators
• LED Indicators:
- 1 - Power LED
- 1 - Drive 1 Activity LED
- 1 - Drive 2 Activity LED
- 1 - Drive 3 Activity LED
- 1 - Drive 4 Activity LED
Environmental
• Humidity: 5%~85% RH
• Operating Temperature: 0°C to 55°C (23°F to 95°F)
• Storage Temperature: -20°C to 60°C (-4°F to 122°F)
Physical Characteristics
• Product Height: 124 mm [4.9 in]
• Product Length: 197 mm [7.8 in]
• Product Weight: 1.3 kg [2.9 lb]
• Product Width: 145 mm [5.7 in]
Packaging Information
• Shipping (Package) Weight: 1.6 kg [3.5 lb]
