StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" HDD

StarTech.com 5.25in Trayless HDD Hot Swap Mobile Rack for 3.5in Internal SATA Hard Drive

Thumbnail 1 : StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" HDD Thumbnail 2 : StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" HDD Thumbnail 3 : StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" HDD Thumbnail 4 : StarTech 5.25" Trayless Hot Swap Mobile Rack for 3.5" HDD
Scan code: LN49712 Manufacturer code: HSB100SATBK
£16.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 13th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

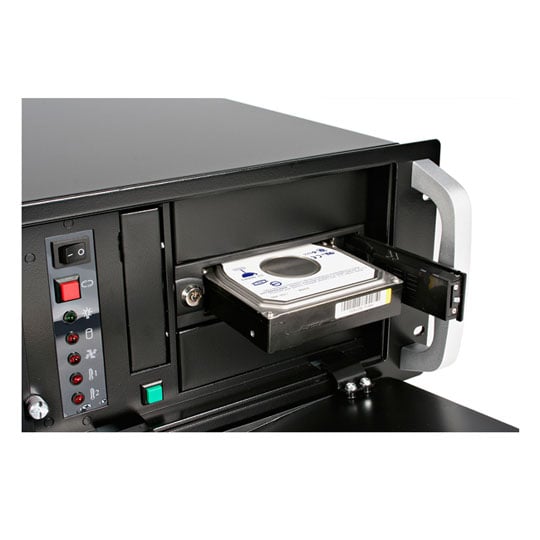

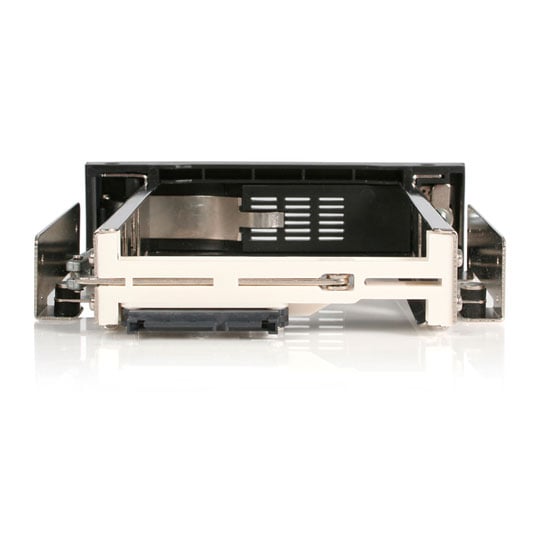

Product Overview This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive (SATA, SATA II, SATA III-6Gbps) in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.

The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.

With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.
Features • Holds a 3.5" SATA drive in a front accessible 5.25" bay
• Trayless design: drives are not mounted into separate trays/enclosures
• Lockable drive bay
• Internal rubber shock absorbers
• 50,000+ insertion rating
• Power and Activity LED indicator
• Fully supports SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives and controllers
• Supports 3.5" form factor SATA hard drives
• Plug-and-Play and Hot-Swap compatible

Applications
• Add additional hot-swap bays to a server or workstation computer
• Replace or upgrade old IDE backplane with a SATA backplane
• System builders who need to image drives quickly and efficiently
• Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
• Be able to replace/remove individual drives from a storage array with minimal or no system down time

Connector(s)
Drive ConnectorsSATA (7 pin; Data) Receptacle
SATA Power (15 pin) Receptacle
Host ConnectorsSATA (7 pin; Data) Plug
SATA Power (15 pin) Plug
Environmental
HumidityOperating - 5~85% RH Non-condensing

Storage - 5~95%
Operating Temperature0°C to 50°C (32°F to 122°F)
Hardware
Compatible Drive Types (Type and Rate)SATA
Drive Size3.5in
Key LockYes
Number of Drives1
Indicators
LED IndicatorsDrive Power/Activity
Package Contents
Included in Package5.25" Tray-Less SATA Hot-Swap Bay
Instruction Manual
Key
Screw Kit
Packaging Information
Shipping (Package) Weight0.4 kg [1 lb]
Performance
Hot Swap CapabilityYes
Insertion Rating50,000+ Cycles
Temperature AlarmNo
Physical Characteristics
ColorBlack
Enclosure TypeAluminum and Plastic
Product Height42 mm [1.7 in]
Product Length184 mm [7.2 in]
Product Weight305 g [10.8 oz]
Product Width149 mm [5.9 in]
Software
OS CompatibilityOS independent; No software or drivers required
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
