StarTech ST122LE 2 Port VGA Splitter

StarTech.com 2 Port VGA Video Splitter - USB Powered

Thumbnail 1 : StarTech ST122LE 2 Port VGA Splitter Thumbnail 2 : StarTech ST122LE 2 Port VGA Splitter Thumbnail 3 : StarTech ST122LE 2 Port VGA Splitter

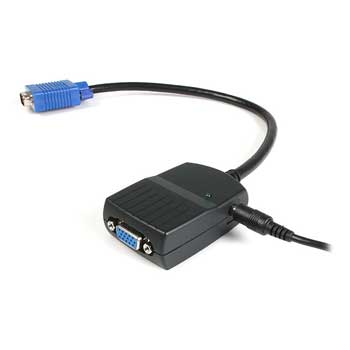

StarTech ST122LE 2 Port VGA Splitter : image 1

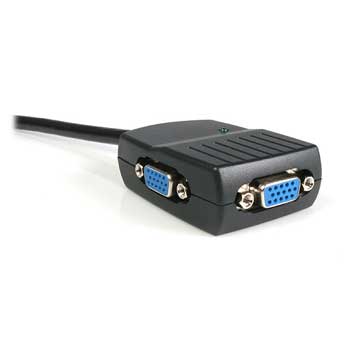

StarTech ST122LE 2 Port VGA Splitter : image 2
StarTech ST122LE 2 Port VGA Splitter : image 3
Scan code: LN40079 Manufacturer code: ST122LE
£26.48
Delivery Options
  • By DPD On 29th May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Extend and split a single high-resolution VGA video signal onto two monitors.
This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet. Features • Colour: Black.
• Connector Type(s): 1 - DB-15 (15 pin; D-Sub) Male.
• Connector Type(s): 2 - DB-15 (15 pin; D-Sub) Female.
• Maximum Analogue Resolutions: 2048x1536.
• Number of Ports: 2.
• Maximum Cable Length: 65 m [213.2 ft].
• Bandwidth: 300MHz.
• Output Voltage: 5 DC.
• Output Current: 500mA.

Connector(s)
Connector AVGA (15 pin; High Density D-Sub) Male
Connector BVGA (15 pin; High Density D-Sub) Female
Environmental
Humidity0% - 95%
Operating Temperature0°C to 70°C (32°F to 158°F)
Storage Temperature-20°C to 85°C (-4°F to 185°F)
Hardware
Industry StandardsDDC, DDC2, DDC2B, on Video Out Port 1
Ports2
Package Contents
Included in PackageUSB to DC power adapter
User Manual
Video Splitter
Packaging Information
Shipping (Package) Weight0.2 kg [0.4 lb]
Performance
Bandwidth300MHz
Maximum Analog Resolutions2048x1536
Maximum Cable Length65 m [213.2 ft]
MTBF40,000 Hours
Physical Characteristics
ColorBlack
Enclosure TypePlastic
Power
Center Tip PolarityPositive
Output Current0.5A
Output Voltage5 DC
Plug TypeM
Power SourceUSB-Powered
Specifications
Length 65 m
Type
Specification
Connector From
Connector To
Connector Features
Cable Features
Colour Black
Total Weight
