Scan code: LN71257 Manufacturer code: PEX2S553LP

2 Port Low Profile PCIe RS-232 Serial Card from StarTech.com

StarTech 2 Port Low Profile PCIe RS-232 Serial Card, Twin height brackets included

Thumbnail 1 : 2 Port Low Profile PCIe RS-232 Serial Card from StarTech.com Thumbnail 2 : 2 Port Low Profile PCIe RS-232 Serial Card from StarTech.com Thumbnail 3 : 2 Port Low Profile PCIe RS-232 Serial Card from StarTech.com Thumbnail 4 : 2 Port Low Profile PCIe RS-232 Serial Card from StarTech.com
Scan code: LN71257 Manufacturer code: PEX2S553LP
£31.99
Delivery Options
  • By DPD On 29th May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

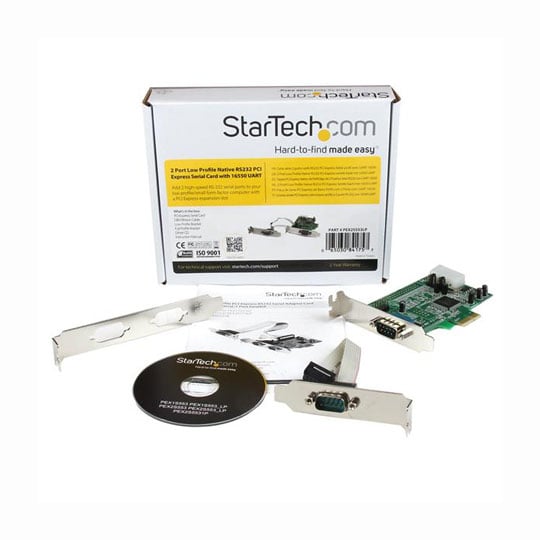

Product Overview The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for the PEX2S552LP card. Features • One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
• Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
• Single chip design optimizes speed and reliability
• Native single-chip, single lane PCI Express
• Selectable power output on pin 9 for the serial port
• Compliant with PCI Express base specifications revision 1.1a
• Automated out-of-band flow control using CTS/RTS and DSR/DTR
• Automated in-band software flow control using programmable Xon/Xoff in both directions
• 128-byte deep FIFO per transmitter and receiver
Specifications
Interface PCIe (x1)
Connectivity 2 x RS232
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
