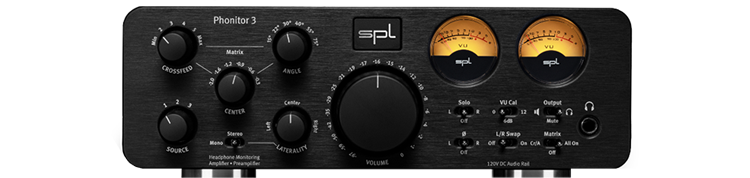

SPL Phonitor 3 Headphone Amp & Monitor Controller - Black
SPL - Phonitor 3 Headphone Amp & Monitor Controller - Black
Email me when the availability or price changes
Finance this product
- From £53.55 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £50.46 / month (APR 19.9%)
Headphone Amp & Monitor Controller
SPL - Phonitor 3
The headphone amplifier and monitoring controller with 120V technologyPhonitor 3 is the ultimate headphone amplifier and monitoring controller with 120V technology.
It offers the same monitoring quality as the big SPL mastering consoles –
on loudspeakers and headphones.
The analogue Phonitor Matrix allows mixing and mastering on headphones in the highest quality –
with the same spatial perception of the stereo stage as on loudspeakers.
Three analogue XLR stereo inputs for various sources and a wide range of monitoring options make it the perfect monitor controller for demanding producers and mixing/mastering engineers.
Phonitor 3 can be equipped with the optional Expansion Rack, which is not only a 19″ rack housing,
but it also expands the connection possibilities with three additional switchable stereo outputs for active loudspeakers or power amplifiers.
Great sound – for headphonesThe Phonitor 3 offers connection for a standard headphone with a stereo jack plug on the front. Thanks to the enormous output power, all kind of headphones are driven effortlessly. Thus, it plays out the advantages of the SPL 120V technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.
Great sound – also for loudspeakersOn the rear of the device, Phonitor 3 offers
a stereo output which makes it a high-quality
monitoring controller for any monitoring situation. Active speakers with an integrated power amplifier
or passive speakers in combination with a power amplifier can be connected at this output.

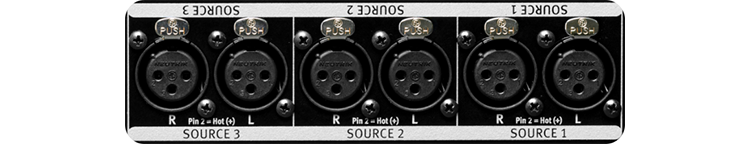

Analogue Inputs
get connectedThree analogue stereo inputs are offered, each with two XLR line inputs (left channel, right channel). Professional analog players with balanced outputs and line level can be connected here, for example high-quality DA converters or an audio interface.
Monitoring at the highest levelPhonitor 3 offers the same key technology –
SPL 120V technology – and signal quality as the
big SPL DMC and MMC mastering consoles.
Headphones or SpeakersThe Output switch – simply switch from headphone to speaker playback. In the center position (Mute), no signal reaches the outputs.
The VU meters light up red.

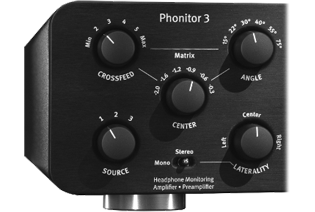

The Revolution: Phonitor Matrix
create perfect mixes on headphonesOne of the unique features of SPL headphone amplifiers is the SPL Phonitor Matrix. It enables mixing and mastering engineers to create perfect mixes on headphones, which will translate perfectly to all types of stereo speaker systems.
But the Phonitor Matrix is not only designed for professional use in the studio. It also enables the hifi enthusiast to enjoy music on headphones, like if it was played back on speakers.
SPL Phonitor Matrix Explained
The Tech Spec
| Features | Specification | Analogue inputs & outputs: XLR (balanced) | Maximum input & output gain - 32.5 dBu Input impedance (XLR) - 20 kΩ Output impedance (XLR) - 75 Ω Common mode rejection ratio (XLR) - -82 dB Frequency range (0 dBu) - 10 Hz – 100 kHz THD +N (1 kHz, 0 dBu) - 0.0009 % Noise (A-weighted) - -102 dBu Crosstalk (1 kHz) - -95 dB Dynamic range - 134.3 dB |
|---|---|
| Standard Headphones Output: 6.35 mm (1/4") TRS Jack | Wiring -
Tip = Left, Ring = Right, Sleeve = GND Source impedance - 0.18 Ω Damping factor (40 Ω) - 180 Frequency range (0 dBu) - 10 Hz – 100 kHz Crosstalk (1 kHz, 0 dBu) - -91 dB THD + N (1 kHz, 0 dBu) - 0.0003 % Noise (A-weighted) - -102 dBu Output power (1 kHz, 1% THD, 250 Ω) - 2 x 5 W Output power (1 kHz, 1% THD, 32 Ω) - 2 x 1 W Dynamic range - 134.5 dB |
| Internal Linear Power Supply with Shielded Toroidal Transformer | Operating voltage for analog audio - +/- 60 V Operating voltage for relays and LEDs - +12 V |
| Mains Power Supply | Mains voltage (selectable, see fuse chamber) -
230 V AC / 50; 115 V AC / 60 Hz Fuse for 230 V - T 0.5 A Fuse for 115 V - T 1 A Power consumption - max. 40 VA |
| Dimensions & Weight | W x H x D (width x height incl. feet x depth) -
278 x 100 x 300 mm Unit weight - 4.9 kg Shipping weight (incl. packaging) - 5.6 kg |
