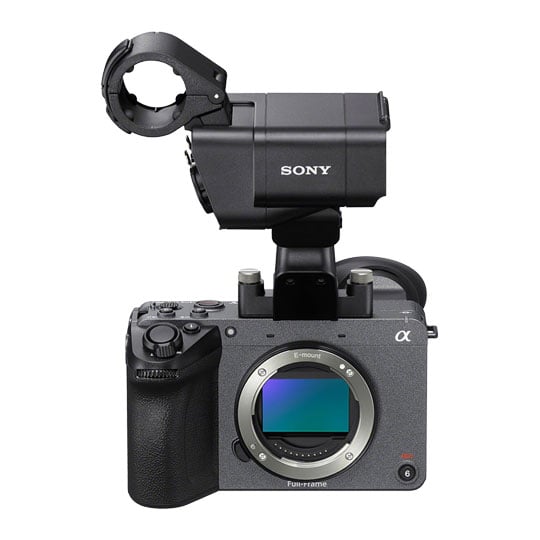

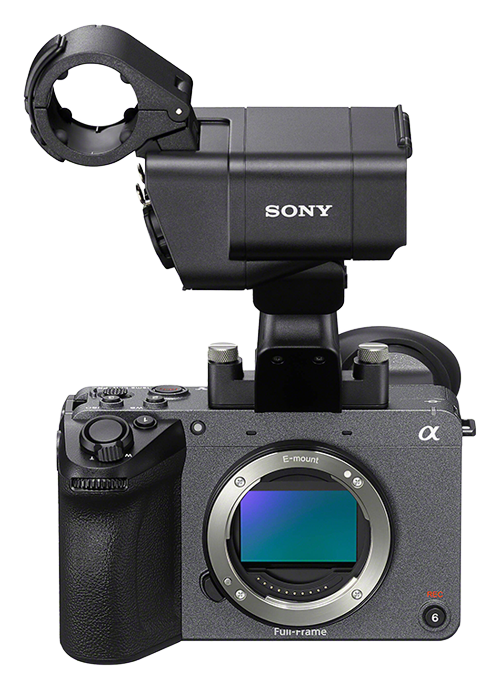

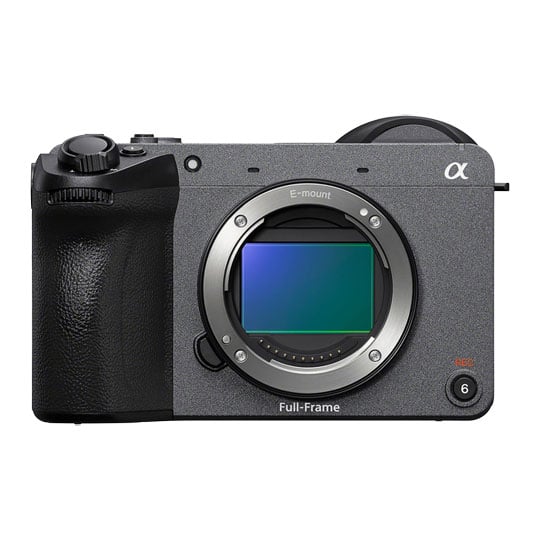

Sony FX2 Cinema Line Full-Frame Camera With XLR Handle Unit

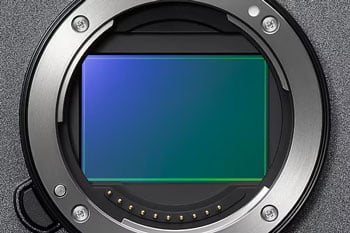

Cinematic expression with a full-frame sensorThe full-frame FX2 delivers stunning cinematic imagery, blending high resolution with beautiful bokeh. Equipped with a back-illuminated Exmor R™ CMOS sensor supported by our BIONZ XR™ image processing engine and advanced AI processing unit, the camera offers high sensitivity, wide latitude, and 33 MP resolution, giving ambitious cinematic visionaries everything they need.

Outstanding image quality for maximum editing flexibilityThe FX2's full-frame sensor produces footage with smooth, natural gradations thanks to 15+ stops of latitude when recording with S-Log3, ensuring even high-contrast scenes are captured in full detail. Base ISO for S-Log3 capture can be set to 800 or 4000, and the camera supports S-Gamut3/S-Gamut3.Cine colour gamuts for broad compatibility. That all adds up to maximum editing efficiency when shooting with multiple cameras.

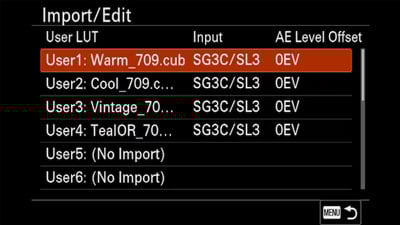

Import up to 16 user LUTsWith the FX2, LUTs can be imported and applied to the LCD monitor and the electronic viewfinder while shooting or playing back movies. Up to 16 user LUT files7 can be imported from memory cards or Sony’s Creators’ Cloud and selected as needed. 8 The LUT used for recording can then be embedded in the video metadata for post-production.

Create moods right in the cameraPicture Profile presets make it easy to adjust colour and gradation to create a variety of moods in camera. These include the invaluable S-Cinetone™, which produces beautiful skin tones. Imported user LUTs can be registered as PPLUT 1 to 4 and applied during recording, and an expanded range of 12 Creative Look profiles, including FL2 and FL3, offers a comprehensive selection of visual moods for many recording needs.

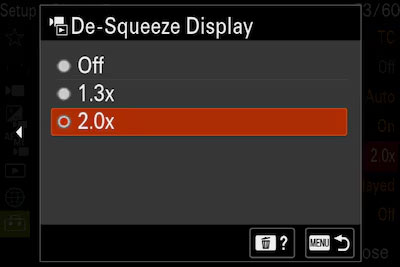

Desqueeze display for anamorphic lensesAnamorphic lenses are a popular choice for creating a distinctly cinematic look. The FX2 is equipped with a desqueeze display mode that allows monitoring in the standard CinemaScope aspect ratio of 2.39:1 while shooting with anamorphic lenses. It offers 1.3x and 2.0x desqueeze settings, and Sony’s Monitor & Control app provides even more detailed settings for monitoring on a tablet or other external display devices.

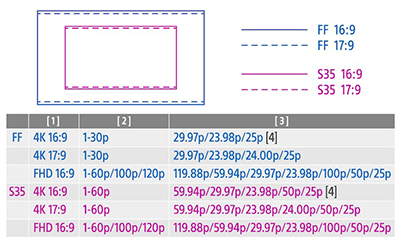

Frame rate freedomAn FPS menu inherits features from Cinema Line higher-end models, including a [Variable] setting that allows intuitive frame-rate control: up to 2.5x slow motion at 4K resolution, or up to 5x slow motion when recording in Full HD at up to 120 fps.

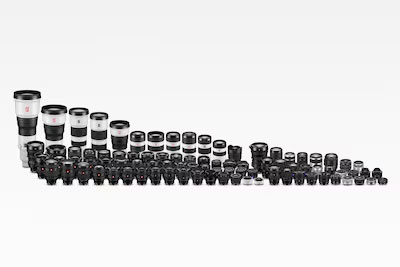

An extensive range of expressive E-mount lensesSony offers a range of more than 70 high-performance E-mount lenses, including ultra-wide angles, super telephoto zooms, exquisite primes and powered zooms. Combine with Sony original microphones for outstanding sound quality and choose from a variety of other accessories to bring your creative vision to life.

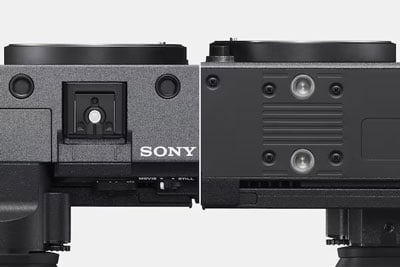

Compact and lightweight with built-in
accessory mount pointsWith the same compact flat-top design as the Cinema Line FX3 and FX30, the FX2 is ideal for handheld shooting as well as gimbal and drone mounting. The magnesium alloy exterior has 1/4-20 (UNC) screw holes in three locations for mounting accessories, and two additional screw holes are located on the bottom panel for secure tripod mounting.

AI-based Real-time Recognition AFEquipped with a powerful AI processing unit, the FX2 is capable of Real-time Recognition AF for humans, animals, birds, vehicles and even insects. A detection frame indicates the recognised subject and tracking can be initiated simply by touching the subject on the monitor screen. Advanced human pose estimation technology accurately recognises subject movement, and human eye recognition has been improved by about 30% compared to the FX3/FX30.

Fine-tuned focus controlAF Assist allows seamless switching to manual focus for smooth focus transitions, while a range of 7 autofocus transition speed settings and 5 sensitivity settings offer detailed control. Focus Map makes it easier to visualise depth of field by overlaying focus info on the live view display, and the Breathing Compensation function can significantly enhance image stability.

Automatic framing using

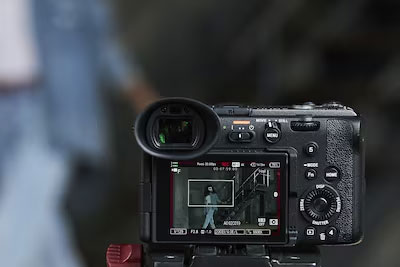

advanced AIThe FX2's Auto Framing feature automatically crops and tracks a subject to keep them in a prominent position when the camera is mounted on a tripod, producing footage that looks like it was shot by an experienced operator. The Framing Stabilizer function automatically keeps the subject in the same position within the frame, which can be useful, for example, when the camera operator is moving alongside the subject.

Stabilisation for dynamic
handheld shootingActive Mode boosts stabilisation while walking and shooting. Or, for shooting at an even faster pace, there’s Dynamic active Mode that utilises electronic stabilisation for as much as 30% greater effect, making it possible to shoot stable footage even when running around. Corresponding stabilisation metadata is embedded in the footage for efficient post production.

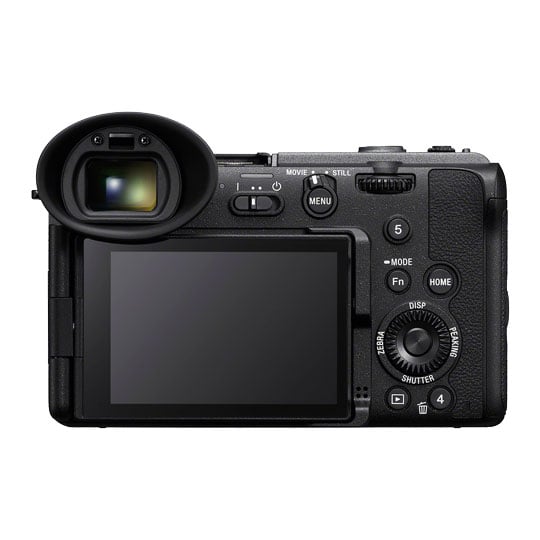

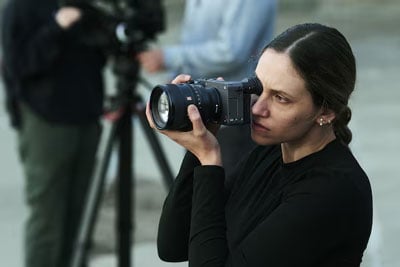

Stills at the flip of a switchA single switch selects MOVIE or STILL mode and instantly recalls all the corresponding settings. In addition to providing 33 MP resolution and continuous bursts at up to 10 fps, the camera is equipped with a [Creating still images from Shot Marks] function that allows you to snap stills while recording or playing video that has a previously imported user LUT.

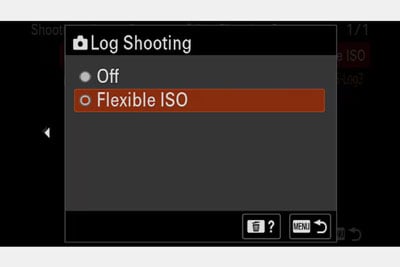

Visual consistency across stills and videosThe Log mode is also available for stills, making it possible to shoot JPEG and HEIF still images with the S-Log3 gamma curve used during a video shoot, so the same workflow can be easily applied during post production. Transform your stills in editing applications such as Blackmagic Design DaVinci Resolve, ready for a variety of uses while maintaining the same look.

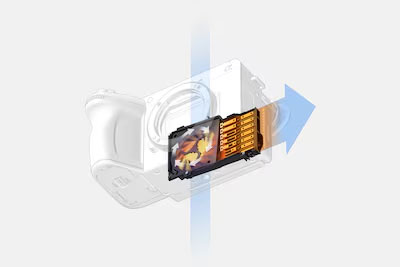

Effective heat managementEnjoy uninterrupted video recording time for formats up to 4K 59.94p. Heat buildup is prevented through a combination of an internal cooling fan, a highly thermal conductive graphite material used in the image stabilisation unit, and an innovative design that allows ample air intake even when the LCD monitor is closed. The cooling fan has three modes that can be selected according to shooting conditions: Auto, Minimum, and Off while Recording.

Plenty of power for long shootsA high-capacity NP-FZ100 battery and effective power management provide up to 100 minutes of actual video time or up to 155 minutes of continuous shooting. For longer shooting times, continuous power can be supplied from a power adaptor or a mobile battery that supports USB Power Delivery (PD). The optional DC-C1 DC Coupler can supply stable power without occupying the camera’s USB Type-C® terminal.

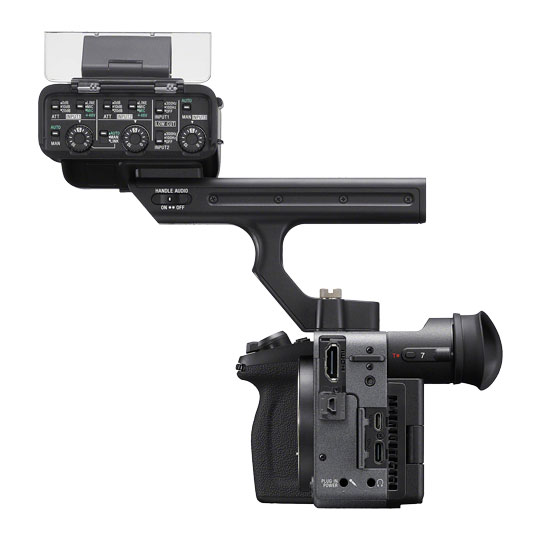

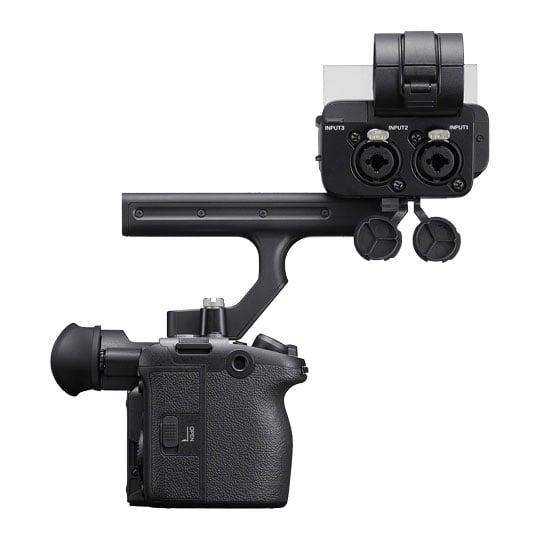

Digital audio without degradationWith an XLR Handle Unit XLR-H1 attached, the FX2 can record high-quality audio via two XLR connectors and a digital audio interface without the need for extra batteries or cables. Microphones equipped with XLR connectors are available separately. Four-channel audio, 24-bit recording, and other settings can be easily applied.

Easy live streamingThe FX2 is also a great choice for live streaming to a computer via USB (UVC/UAC) or a wireless or wired LAN network. You can stream up to 4K (3840 x 2160) 59.94p video via LAN while simultaneously recording to the camera’s memory card. LAN streaming protocols include RTMP, RTMPS, and SRT.

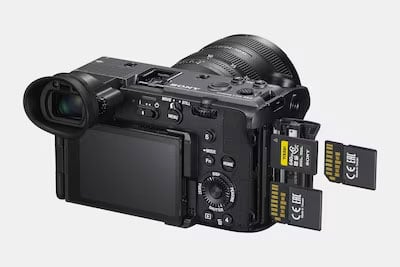

CFexpress Type A memory card supportTwo card slots support SDXC/SDHC UHS-II/UHS-I memory cards, with one also supporting CFexpress Type A cards, giving you plenty of options for stable and reliable high-bitrate recording. Select the recording mode to suit your needs: video and stills can be recorded to different cards, recording can be automatically switched to a second card when the first is full, and more.

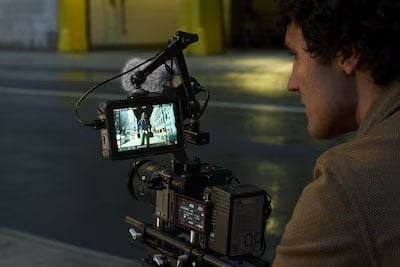

4:2:2 10-bit or 16-bit RAW output via HDMIAn HDMI Type-A terminal enables 4K 60p (59.94p) 4:2:2 10-bit or 16-bit RAW video output to an external recorder for flexible post production. 16-bit RAW video is output at 4672 x 2628 resolution (16:9 aspect ratio), which also covers DCI-4K (4096 x 2160), with selectable [59.94p]/[29.97p]/[23.98p]/[24.00p] frame rates. Video output via HDMI can occur simultaneously with proxy recording to an internal memory card.

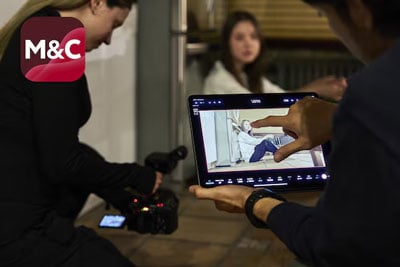

Monitor & ControlSony’s Monitor & Control app not only allows intuitive remote operation and image monitoring on a smartphone or tablet screen but also provides waveform and other displays for exposure confirmation and precise focusing. Multi-monitoring is available when multiple cameras are wirelessly connected to a single iPad. All of this can contribute to smoother workflows with a minimal crew.

Catalyst Browse, Catalyst Prepare/PluginThe Catalyst Browse and Catalyst Prepare apps allow convenient editing of video recorded in Log mode with embedded LUTs. Shot marks and OK/NG/KEEP flags added while recording can also be imported for easier shot selection. Image stabilisation, breathing compensation, rolling shutter, and other metadata embedded while recording can be used to make precise corrections during post production.

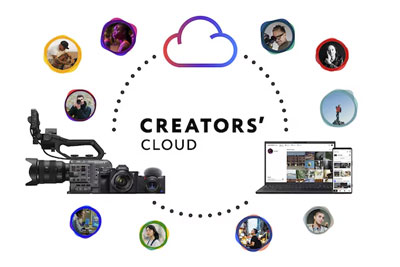

Creators' Cloud platformCreators' Cloud is a platform that supports creative work from shooting to production by combining Sony's advanced camera technology and the cloud. It's also a place for discovery and collaboration with other creators around the world. Explore web, mobile, and PC-based apps for efficient solutions that integrate cameras with shooting and production apps and services.

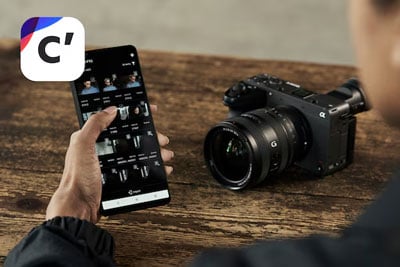

Cloud Upload (camera direct)Recorded files can be directly uploaded to Creators’ Cloud storage from the camera without having to transfer via a smartphone or other device. Once in the Creators’ Cloud, data can be transferred to other cloud services such as Google Drive™ or Adobe Lightroom to suit your workflow.
