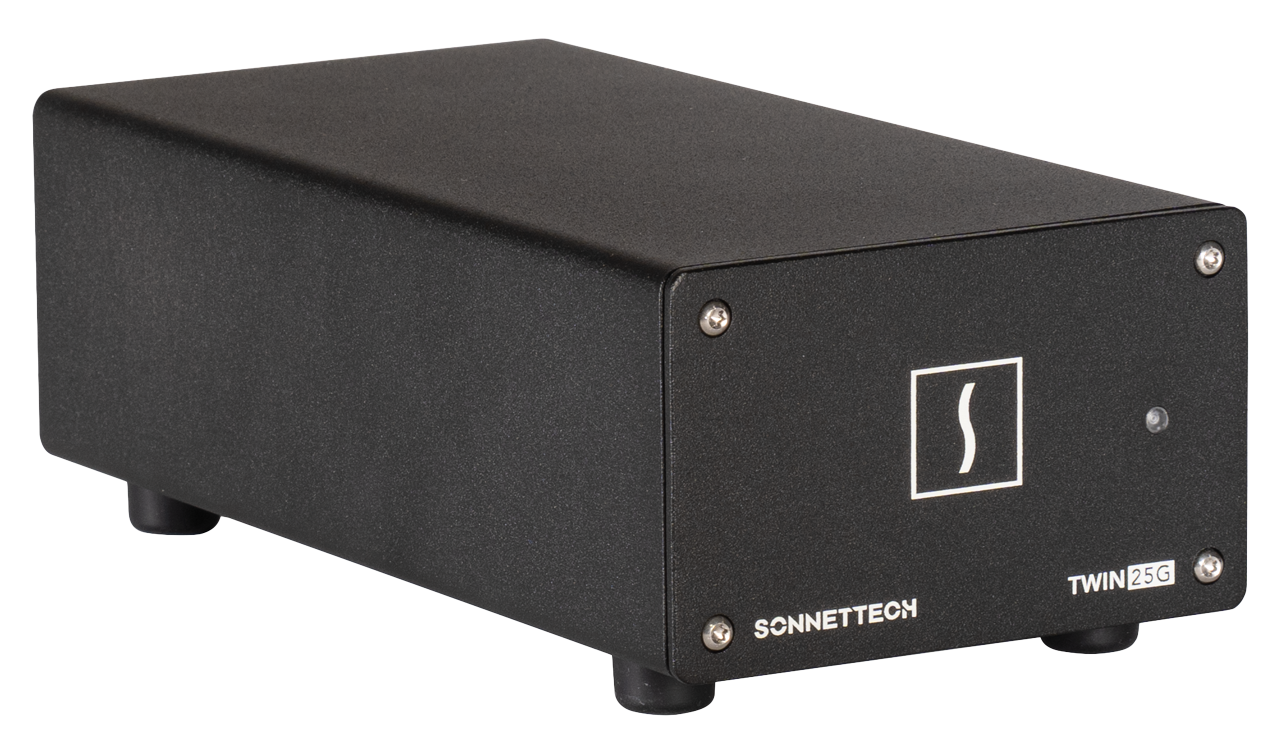

Sonnet Twin25G
Sonnet Twin25G, 25 Gigabit Ethernet Thunderbolt Adapter, 2 SFP28 Transceivers, Mac/Win/Linux
- By DPD On 11th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info

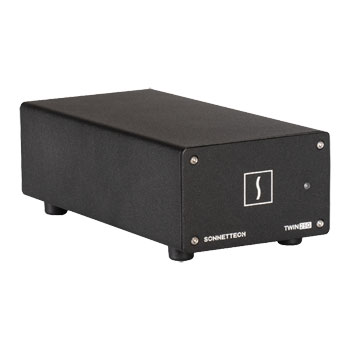

Sonnet - 'Twin25G'
Incredible 25GbE Connectivity Over ThunderboltIntroducing Sonnet’s Twin25G, a powerful and affordable solution for upgrading to incredibly-fast fibre optic 25GbE network connectivity. Designed with many post-production and bandwidth-intensive workflows in mind, where 10Gb ethernet is no longer providing an optimal speed, the Twin25G offers greater performance and more often than not works within the same optical network infrastructure. Twin25G offers a cost effective 25GbE interface for you Mac, Windows, or Linux computer with Thunderbolt 4 or even Thunderbolt 3 ports.
Affordable 25GbE Networking

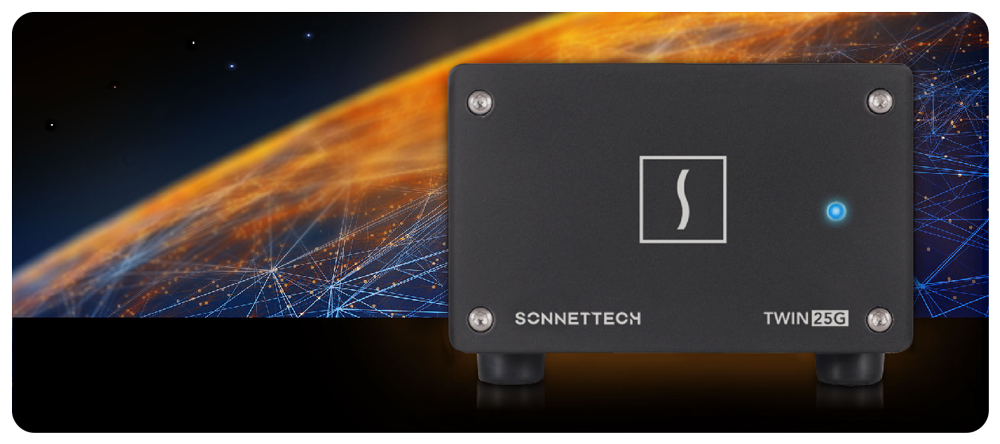

Make the SwitchPostproduction workflows’ needs for speed and increased network bandwidth beyond the current 10Gb standard have increased more quickly than the availability of affordable higher speed network components. Recently, extremely affordable 25Gb Ethernet switches have become available, but connecting a computer with Thunderbolt ports — such as a Mac Studio® — to a 25GbE infrastructure has remained expensive. Until now. Sonnet’s Twin25G Thunderbolt adapter is the most cost-effective and powerfully simple solution for adding incredible 25GbE network connectivity to your computer without PCIe card slots.
Key Features
Adds High-performance 25GbE ConnectivitySimply powerful way to add dual optical 25GbE connections to any computer with Thunderbolt 4 or Thunderbolt 3 ports.

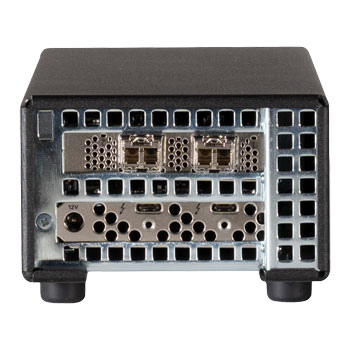

SFP28 Transceivers IncludedHigh-performance adapter includes two 25GBASE SFP28 transceivers.
Backward CompatibleAdapter also supports 10GbE — enables you to integrate with 10GbE infrastructure now and upgrade your switch or shared storage system to 25GbE later.
Mac CompatibleSupports Macs with Thunderbolt 4, Thunderbolt/USB4, and Thunderbolt 3 ports.
Windows CompatibleSupports Windows computers with Thunderbolt 4 and Thunderbolt 3 ports.
Linux CompatibleSupports Linux computers with Thunderbolt 4 and Thunderbolt 3 ports.
40Gbps Thunderbolt Device40Gbps Thunderbolt supports the full bandwidth of one 25GbE port.
Two Thunderbolt PortsOne port connects to computer; second port provides 15W for a Thunderbolt or USB 3 device; or to connect up to an 8K display.
Compact. Nearly Noiseless.Adapter is small enough to comfortably fit on any desktop, and quiet enough for use in noise-sensitive environments. You’ll hardly notice it’s there.
Compact and Nearly Noiseless

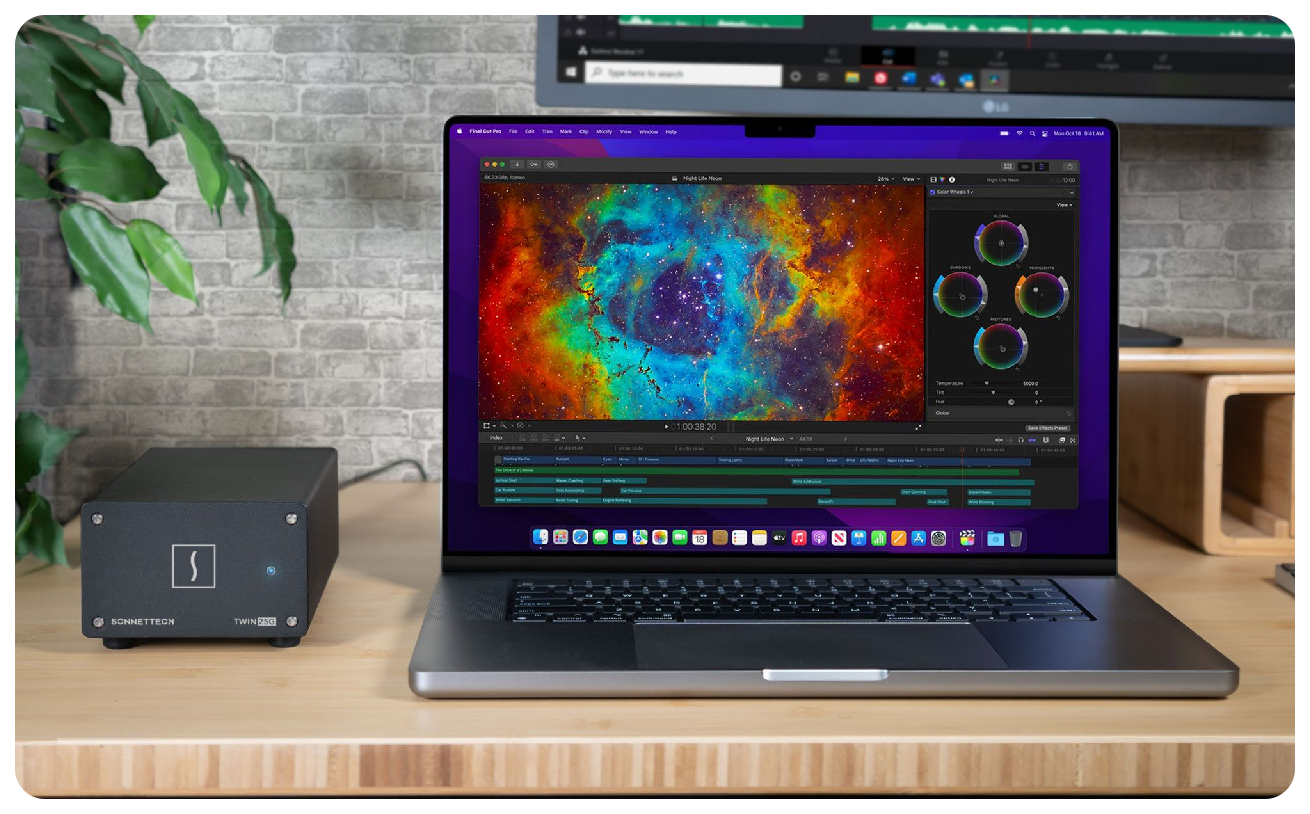

Cool RunningSmall enough to easily fit in most workspaces, the Twin25G adapter is still large enough to support proper airflow inside its case to enable the adapter’s temperature-controlled, variable-speed fan to keep the adapter always running cool and quiet.
Everything You Need to Connect Is IncludedSimply connect the Twin25G adapter to your computer via the included 40Gbps Thunderbolt cable, install a driver, install the included SFP28 modules, connect the adapter to the network switch or directly to 25GbE-enabled storage, and then configure the adapter’s settings through the macOS® Network control panel, Windows Device Manager, or Linux command line (or graphical utility).
Intelligent Operation

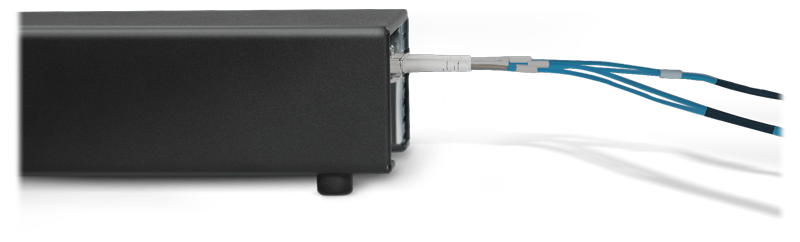

Efficient PerformanceThe Twin25G adapter attains high throughput performance with minimal host CPU load. The adapter’s smart controller has its own internal processing system with onboard memory to process TX/RX data while using few CPU resources. Once data appears in queues, TX checksums are computed on the fly as data is transmitted; RX checksums are quickly verified, and data is immediately passed directly to main memory. This independent controller action minimizes latency and avoids packet drops. The CPU is freed for other tasks.
All The Right Connections

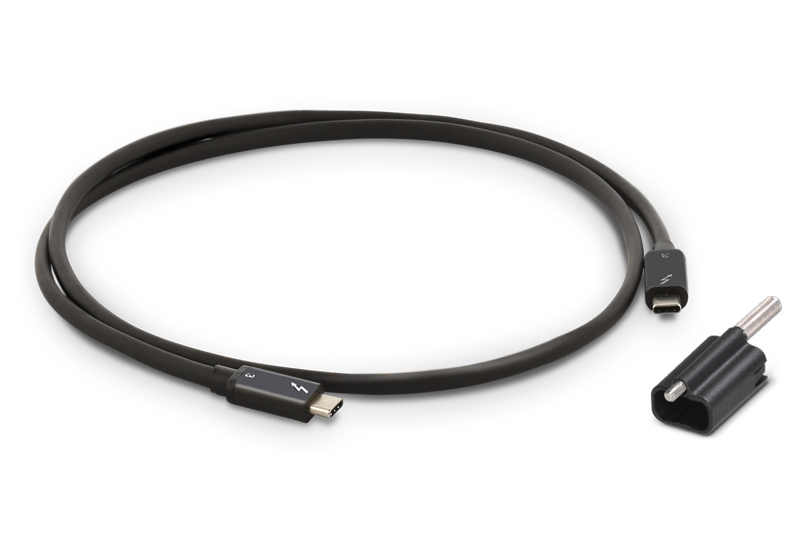

40Gbps Thunderbolt Cable and ThunderLok 3 IncludedSonnet includes a Thunderbolt cable that supports Thunderbolt’s full 40Gbps bandwidth, and is fully compatible with Thunderbolt 4 and Thunderbolt 3 computers. Sonnet also provides a ThunderLok™ 3 Thunderbolt connector retainer clip that prevents accidental cable disconnections — just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
Full 40Gbps Thunderbolt Bandwidth Support

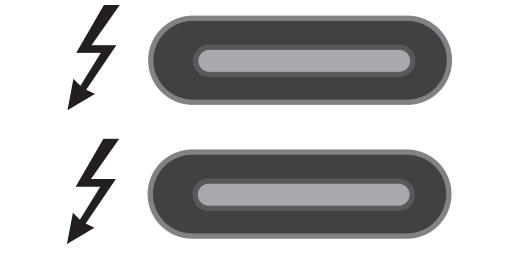

Dual 40Gbps Thunderbolt PortsOne port is reserved for the connection to your Thunderbolt 4 or Thunderbolt 3 computer; the second port provides 15W for a Thunderbolt or USB 3 device; or to connect up to an 8K display.
10Gbps USB 3.2 Gen 2 Support10Gbps USB 3.2 Gen 2 support allows you to connect a USB device to the second Thunderbolt port.
Provides 15W of PowerFor peripherals requiring power, 15 watts is provided to bus-powered devices.
Supports Connecting One Up to 8K DisplayMaximize the utilization of one computer Thunderbolt port, connecting the largest display supported by your computer.
